1input/1output
0~30VAC
0~50VAC
0~120VAC
0~250VAC
0~500VAC
0~5V
0~10V
1~5V
0~20mA
4~20mA
24VDC

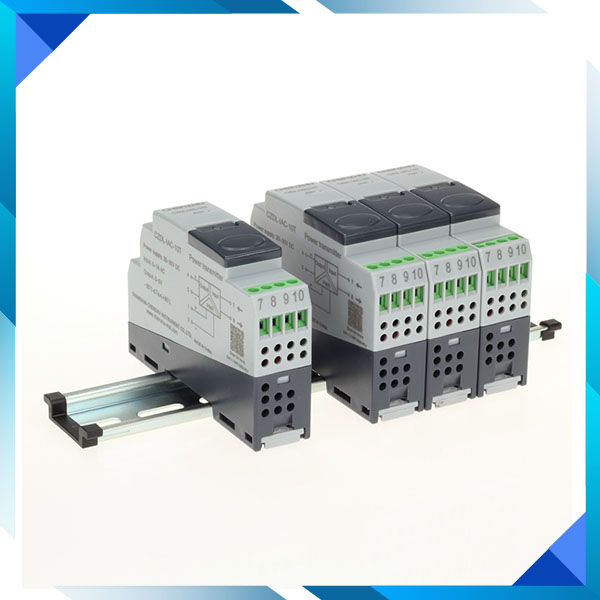

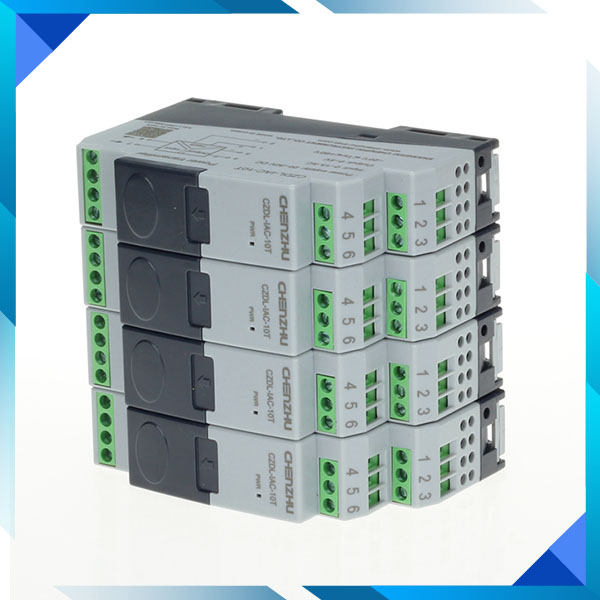

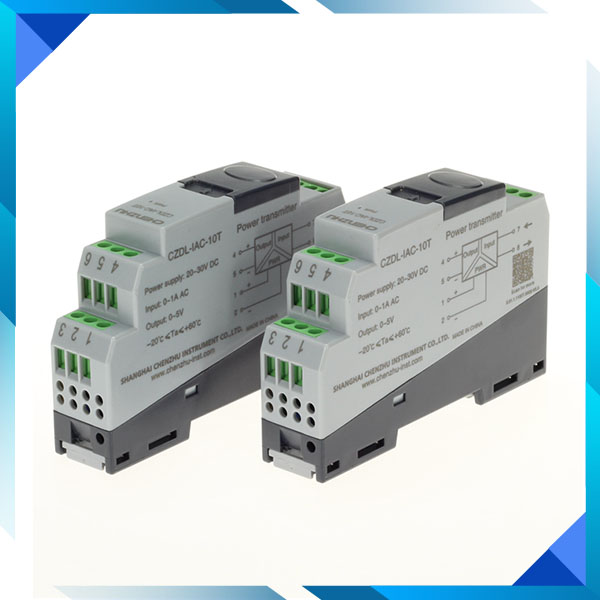

| Product Name | CZDL-VAC-370T Transmitter |
| Number of channels | 1 |
| Supply voltage(Ue) | 20~30V DC |
| Input signal | AC Voltage |
| Output signal | current;voltage |
| Weight |
Approx 75g |
| Number of channels | 1 |
| Dielectric strength | input～output、power supply 2500V AC,50Hz,1min power supply～output 1500V AC,50Hz,1min |
| Output accuracy(20°C) | 0.5% F.S. |
| Temperature drift | 0.02% F.S./℃ |
| Response time | Reach 90% of final value in 330ms |
| Electromagnetic compatibility | According to IEC 61326-1(GB/T 18268) |
| Weight | Approx 75g |
| Input signal | AC Voltage |
| Input impedance | 800kΩ |
| Input voltage | 0～(30-500V AC) |
| Max.input voltage | 1.2×Un(continues);2×Un(1minute) |
| Input frequency range | 40Hz～1kHz |
| Output signal | current;voltage |
| Output current | 0～20mA;4～20mA |
| Max.output current | 25mA |
| Current output load resistance | RL≤550Ω |
| Output voltage | 0～10V;0～5V;1～5V |
| Max.output voltage | 12.5V |
| Voltage output load resistance | RL≥300kΩ |
| Supply voltage(Ue) | 20～30V DC |
| Rated power consumption | ≤1W |
| Power connecting mode | Terminal |
| Depth | 65.5mm |
| Height | 99.0mm |
| Width | 22.5mm |
| Material | PC |
| Degree of protection | IP20 |
| Flammability rating | UL94/V0 |
| Colour | gray |
| Electrical fast transient/burst immunity | According to:IEC 61326-1 |
| Surge immunity | According to:IEC 61326-1 |
| Radiated,radio-frequency,electromagnetic field immunity | According to:IEC 61326-1 |
| Electrostatic discharge immunity | According to:IEC 61326-1 |
| Immunity to conducted disturbances, induced by radio-frequency fields | According to:IEC 61326-1 |
| Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz | According to:IEC 61326-1 |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+80℃ |
| Relative humidity | 10%~90% |
| Environmental requirements | The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using |
| Conductor cross section solid range | 0.5~2.5mm² |
| Conductor cross section flexible range | 0.5~2.5mm² |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 24 |
| Stripping length | 8mm |
| Screw thread | M3 |
| Connection method | Screw connection |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
| Mounting type | DIN35mm |
