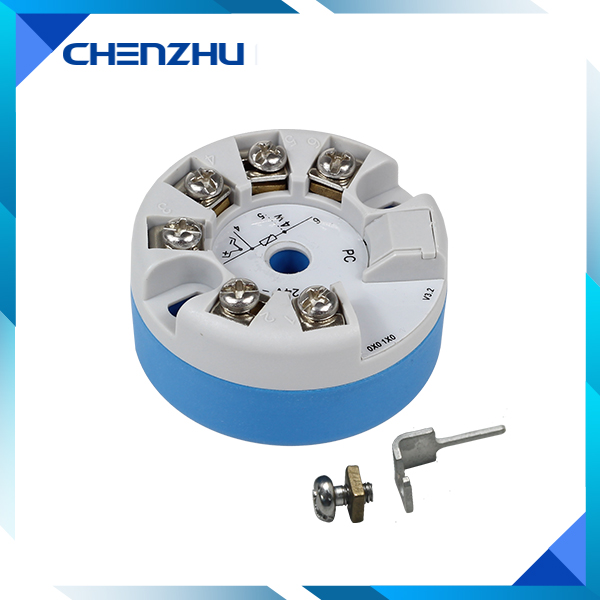

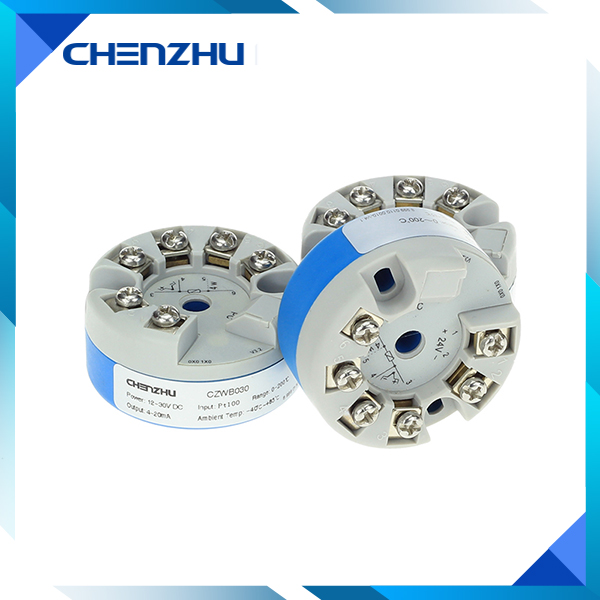

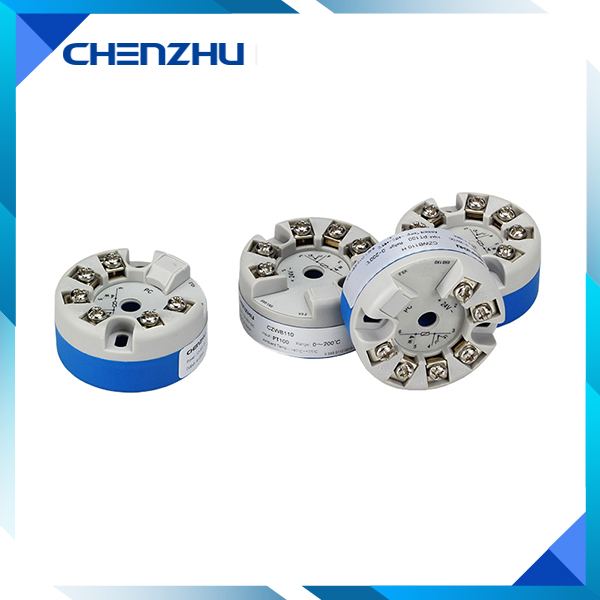

CZWB020 TC input Temperature Transmitter

TC input Temperature Transmitter.Input signal:T;E;J;K;N;R;S;B;mV.Output current:4～20mA.Supply voltage(Ue):12～30VDC.Loop powered,Approx 45g.

Number of channels:

1input 1output

Input signal:

T;E;J;K;N;R;S;B;

Output Signal:

4~20mA(Without Energy)

Supply Voltage:

Loop Power Suply

Special Function:

Field Type

CZWB020

Product details

Technichal Data

Download

click to consult

contrast

enquire

TC input Temperature Transmitter

Product Name	CZWB020 Transmitter
Number of channels	1
Supply voltage(Ue)	12~30V DC
Input signal	T;E;J;K;N;R;S;B;mV
Output current	4~20mA
Weight	Approx 45g

TC input Temperature Transmitter

Product characteristic

General

Input data

Output data

Power supply

Dimensions

Housing

EMC data

Operating conditions

Connection data

Others

Technichal Data

Generate PDF

Product characteristic

Characteristic

Non-Isolated

General

Number of channels	1
Temperature drift	0.01%F.S./℃
Response time	Reach 90% of final value in 1s
Electromagnetic compatibility	According to IEC 61326-1(GB/T 18268)
Weight	Approx 45g

Input data

Input signal

T;E;J;K;N;R;S;B;mV

Output data

Output current	4～20mA
Current output load resistance	RL≤(Ue-12)/0.021Ω
Alarm indication	Lower limit overflow alarm,output current ≈3.8mA;Upper limit overflow and breakage alarm,output current ≈20.8mA

Power supply

Supply voltage(Ue)	12～30VDC
Power supply mode	Loop powered

Dimensions

Depth	46.6mm
Width	25.0mm

Housing

Material	PC
Degree of protection	IP20
Flammability rating	UL94/V0
Colour	blue

EMC data

Electrical fast transient/burst immunity	According to:IEC 61326-1;Class B
Surge immunity	According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity	According to:IEC 61326-1
Electrostatic discharge immunity	According to:IEC 61326-1;Class B
Immunity to conducted disturbances, induced by radio-frequency fields	According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz	According to:IEC 61326-1

Operating conditions

Ambient temperature	-40℃~+85℃
Storage temperature	-40℃~+85℃
Relative humidity	10%~90%
Environmental requirements	The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using

Connection data

Conductor cross section flexible range	0.5~2.5mm²
Conductor cross section AWG min.	12
Conductor cross section AWG max.	24
Stripping length	8mm
Screw thread	M4
Connection method	Screw connection
Tightening torque min.	0.5 Nm
Tightening torque max.	0.6 Nm

Others

Cold junction compensation accuracy

±1℃(Compensation range:-20℃~＋60℃)
