1input 1output
Pt100/CU50/CU100
4~20mA(Without Energy)
Loop Power Suply
Field Type

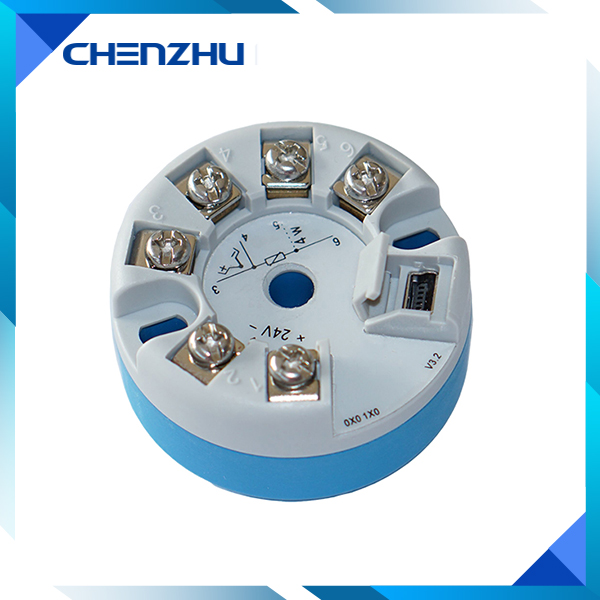

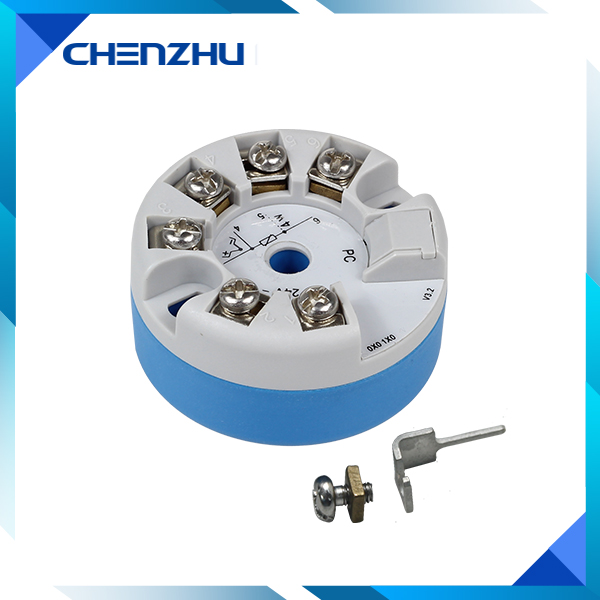

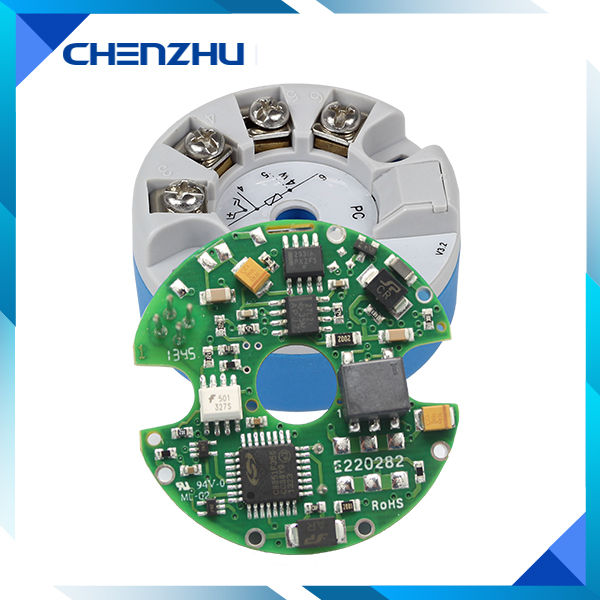

| Product Name | CZWB010 Temperature Transmitter |
| Number of channels | 1 |
| Supply voltage(Ue) | 12~30V DC |
| Input signal | Pt100,Cu50,Cu100 |
| Output current | 4~20mA |
| Weight | Approx 45g |
| Characteristic | Non-Isolated |
| Number of channels | 1 |
| Temperature drift | 0.01%F.S./℃ |
| Response time | Reach 90% of final value in 1s |
| Electromagnetic compatibility | According to IEC 61326-1(GB/T 18268) |
| Weight | Approx 45g |
| Input signal | Pt100,Cu50,Cu100; |
| Output current | 4～20mA |
| Current output load resistance | RL≤(Ue-12)/0.021Ω |
| Alarm indication | Lower limit overflow alarm,output current ≈3.8mA;Upper limit overflow and breakage alarm,output current ≈20.8mA |
| Supply voltage(Ue) | 12～30VDC |
| Power supply mode | Loop powered |
| Depth | 46.6mm |
| Width | 25.0mm |
| Material | PC |
| Degree of protection | IP20 |
| Flammability rating | UL94/V0 |
| Colour | blue |
| Electrical fast transient/burst immunity | According to:IEC 61326-1;Class B |
| Surge immunity | According to:IEC 61326-1;Class B |
| Radiated,radio-frequency,electromagnetic field immunity | According to:IEC 61326-1 |
| Electrostatic discharge immunity | According to:IEC 61326-1;Class B |
| Immunity to conducted disturbances, induced by radio-frequency fields | According to:IEC 61326-1 |
| Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz | According to:IEC 61326-1 |
| Ambient temperature | -40℃~+85℃ |
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 10%~90% |
| Environmental requirements | The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using |
| Conductor cross section flexible range | 0.5~2.5mm² |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 24 |
| Stripping length | 8mm |
| Screw thread | M4 |
| Connection method | Screw connection |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
