Isolated signal distributor(1 channel)

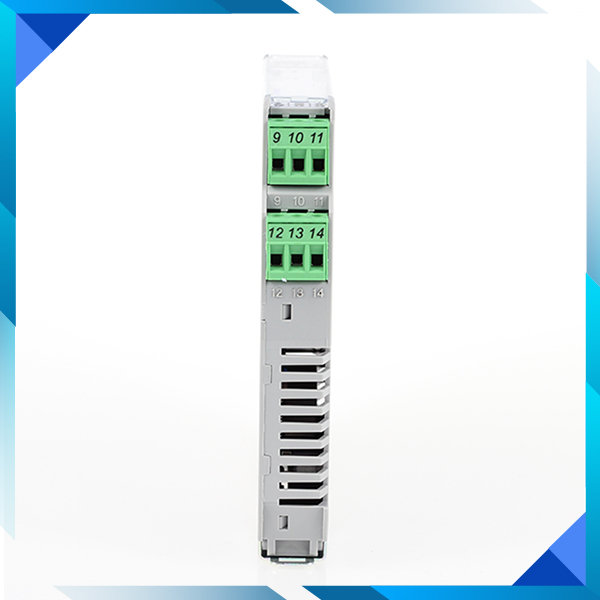

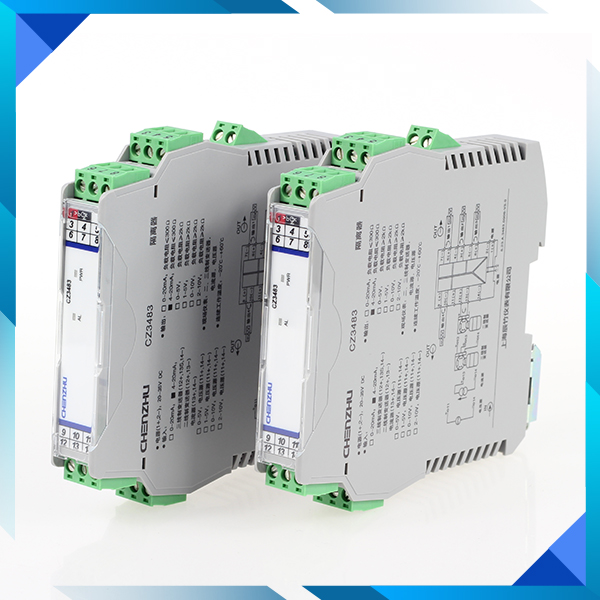

CZ3483.11  Isolated signal distributor(1 channel)
A variety of voltage, current signal input and output, the input and output signal can be arbitrary combination, can provide the isolation power distribution to the field instruments, bus power supply or terminal power supply can choose.
Number of channels:
1input/1output
Input signal:
Dry contact/proximity switch
Output signal:
Relay
Power Supply Mode:
24VDC
Power Connection Mode:
Terminal Power Supply
CZ3483.11
产品详情
产品参数
下载
click to consult
加入对比
加入询价单

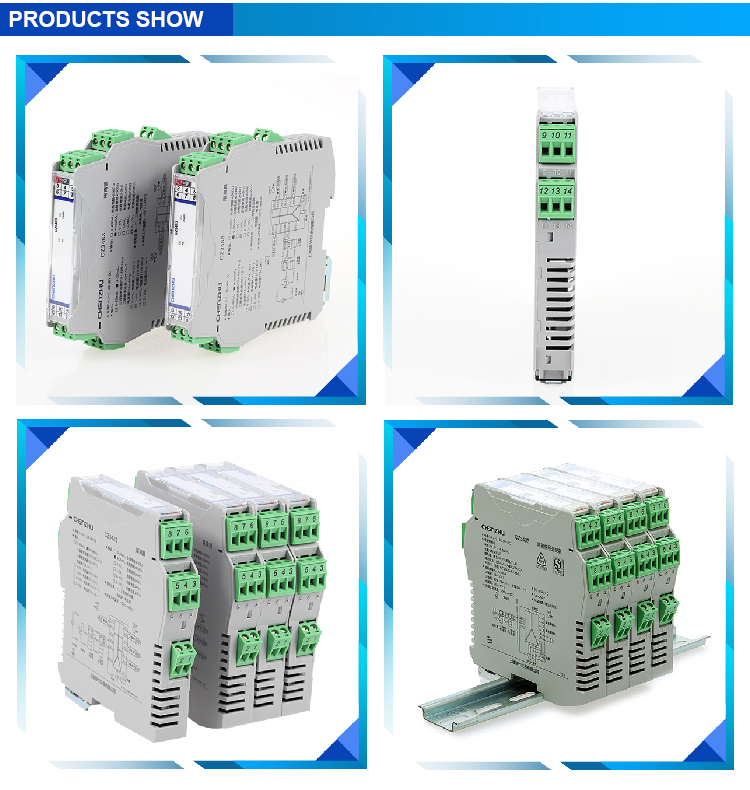

Isolated signal distributor(1 channel)

Isolated signal distributor(1 channel)



Product Name  CZ3483.11 Isolator
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal  0~20mA;4~20mA;0~5V;1~5V;0~10V;2~10V
Output signal  0~20mA;4~20mA;0~5V;1~5V
Field apparatus  2-wire transmitter,3-wire transmitter, voltage source



Isolated signal distributor(1 channel)

Isolated signal distributor(1 channel)

Isolated signal distributor(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation
产品参数
General
Number of channels 1input/1output
Dielectric strength 1500V AC;1minute(among power supply ,input and output )
Output accuracy(20°C) 0.1%F.S.
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 0.5s
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 100g
Field apparatus 2-wire Transmitter,3-wire Transmitter, Current Source,Voltage Source
Input data
Input signal 0~20mA;4~20mA;0~5V;1~5V;0~10V;2~10V
Open circuit voltage ≤20V
Input impedance ≤100Ω(current) ≥100kΩ(voltage)
Max. input current ≤30mA
Available voltage ≥15.5V at 20mA
Output data
Output signal 0~20mA;4~20mA;0~5V;1~5V
Current output load resistance RL≤300Ω
Voltage output load resistance RL≥2kΩ
Alarm indication Breakage or short circuit , LED falshing, output current =0mA
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤70mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal

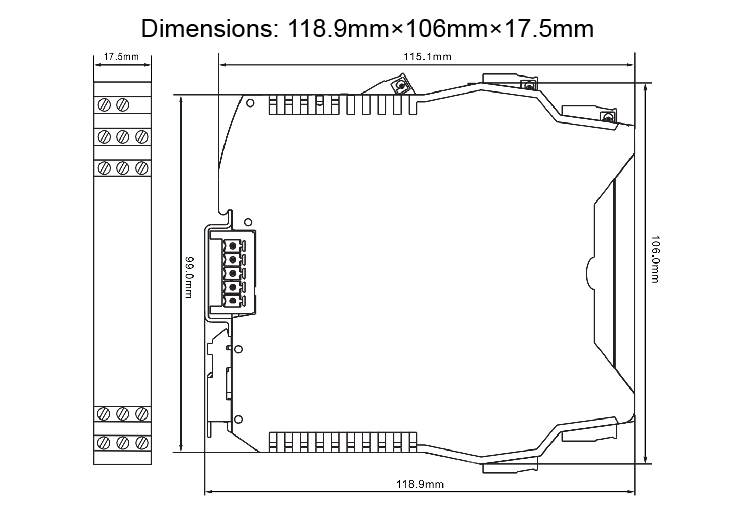

Dimensions
Depth 118.9mm
Height 106.0mm
Width 17.5mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
