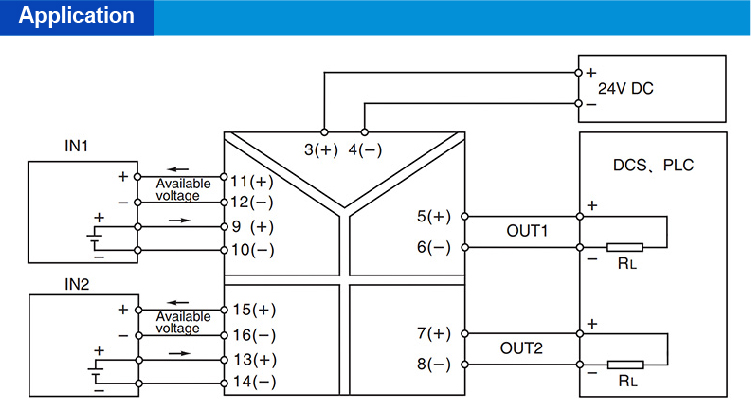

2inputs/2outputs
0~5V
1~5V
0~10V
Terminal Power Supply
10V/20mA
15V/20mA
None
0~20mA
4~20mA
0~5V
1～5V
0~10V

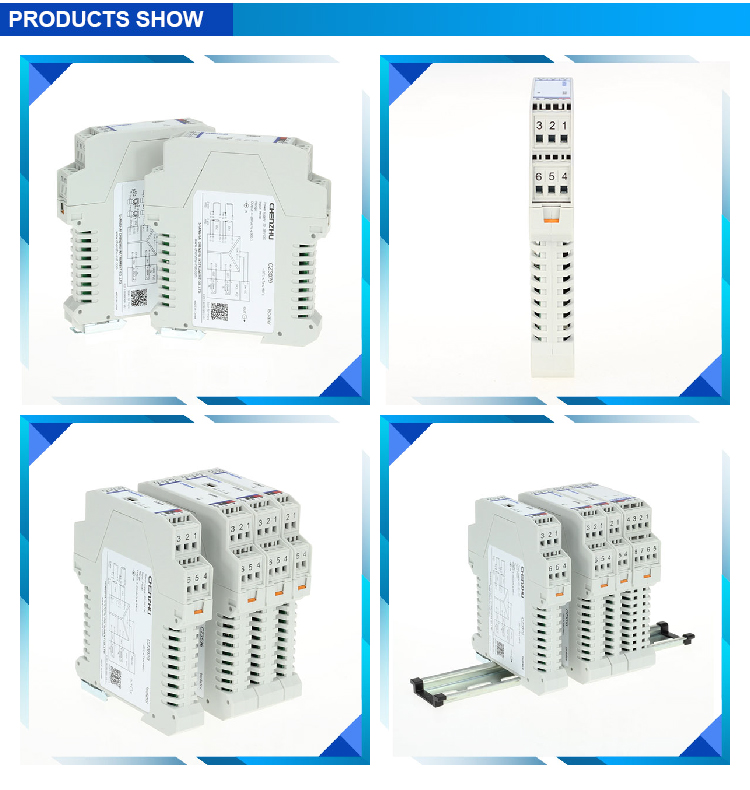

| Product Name | CZ3088 Isolator |
| Number of channels | 2 inputs/2 outputs |
| Supply voltage(Ue) | 20~35V DC |
| Input signal |
0～20mA;4～20mA;0～5V;1～5V;0～10V |
| Output signal |
0～20mA;4～20mA;0～5V;1～5V;0～10V |
| Weight | Approx 150g |
| Number of channels | 2inputs/2outputs |
| Dielectric strength | 1500V AC;1minute(among power supply ,input and output ) |
| Output accuracy(20°C) | 0.1%F.S. |
| Temperature drift | 0.01%F.S./℃ |
| Response time | ≤0.1s |
| Insulation resistance | ≥100MΩ;500V DC(among power supply,input,output and the shell) |
| Electromagnetic compatibility | According to IEC 61326-1(GB/T 18268) |
| Weight | Approx 150g |
| Field apparatus | Current source;voltage source |
| Input signal | 0～20mA;4～20mA;0～5V;1～5V;0～10V |
| Output signal | 0～20mA;4～20mA;0～5V;1～5V;0～10V |
| Output current | Specified range when ordering |
| Current output load resistance | RL≤300Ω |
| Output voltage | Specified range when the user order |
| Voltage output load resistance | RL≥20kΩ |
| Supply voltage(Ue) | 20～35V DC |
| Power protection | Reverse protection of power supply |
| Current consumption | ≤130mA (at 24Vdc supply,20mA output) |
| Power supply mode | Independent power supply |
| Power connecting mode | Terminal |

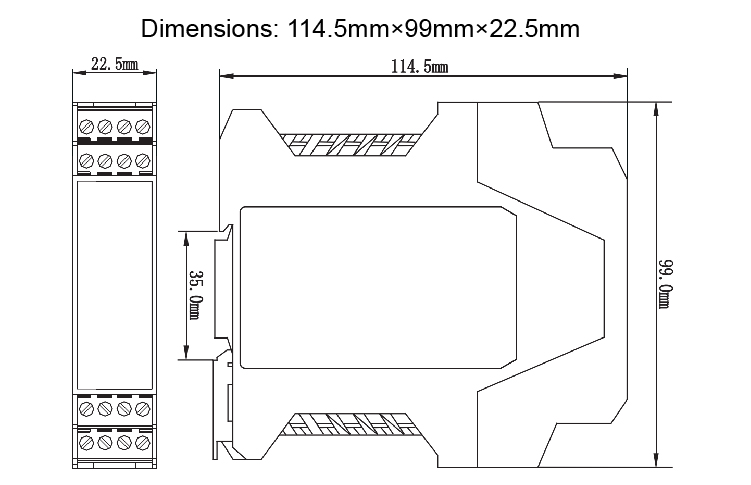

| Depth | 114.5mm |
| Height | 99.0mm |
| Width | 22.5mm |
| Material | PA |
| Degree of protection | IP20 |
| Flammability rating | UL94/V0 |
| Colour | white |
| Electrical fast transient/burst immunity | According to:IEC 61326-1;Class B |
| Surge immunity | According to:IEC 61326-1;Class B |
| Radiated,radio-frequency,electromagnetic field immunity | According to:IEC 61326-1 |
| Electrostatic discharge immunity | According to:IEC 61326-1;Class B |
| Immunity to conducted disturbances, induced by radio-frequency fields | According to:IEC 61326-1 |
| Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz | According to:IEC 61326-1 |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+80℃ |
| Relative humidity | 10%~90% |
| Environmental requirements | The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using |
| Conductor cross section solid range | 0.5~2.5mm² |
| Conductor cross section flexible range | 0.5~2.5mm² |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 24 |
| Stripping length | 8mm |
| Screw thread | M3 |
| Connection method | Screw connection |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
| Mounting type | DIN35mm |
