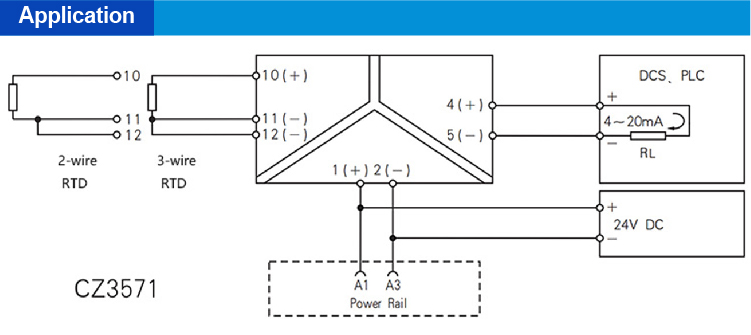

1input/1output
Pt100
Cu50
Cu100
0~20mA
4~20mA;
0~5V
1~5V
24VDC
Terminal Power Supply

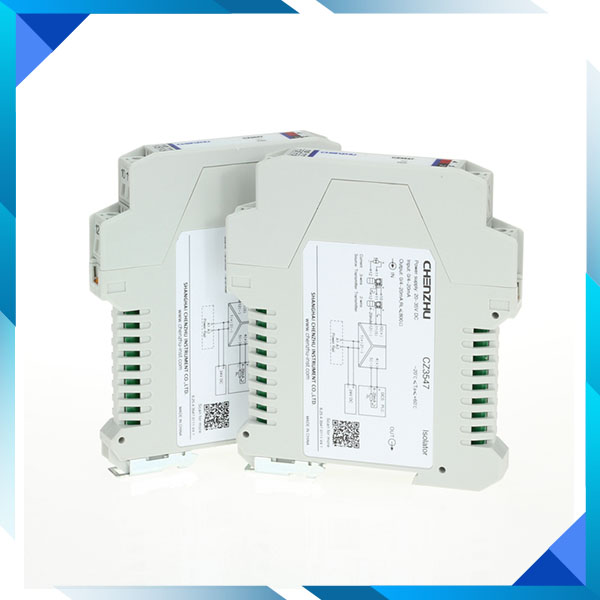

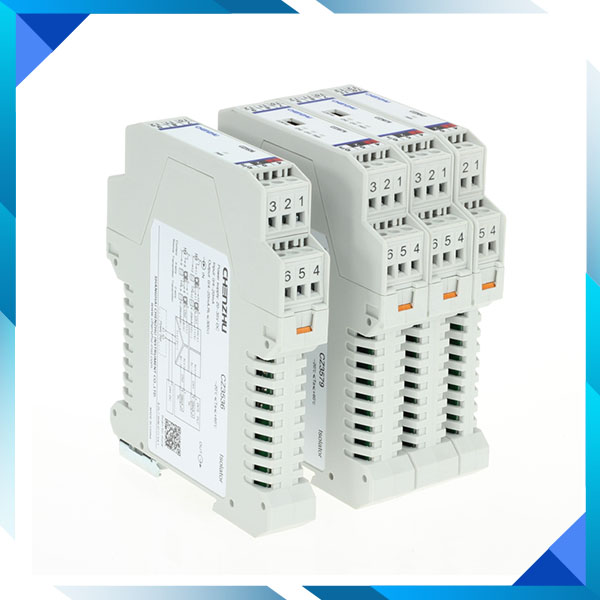

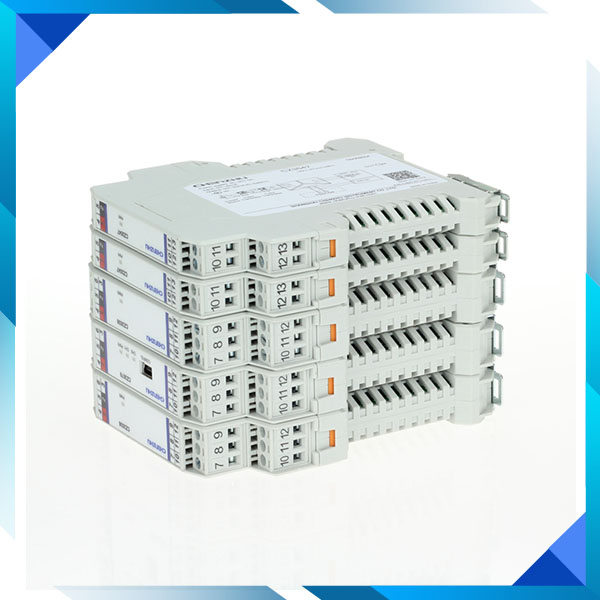

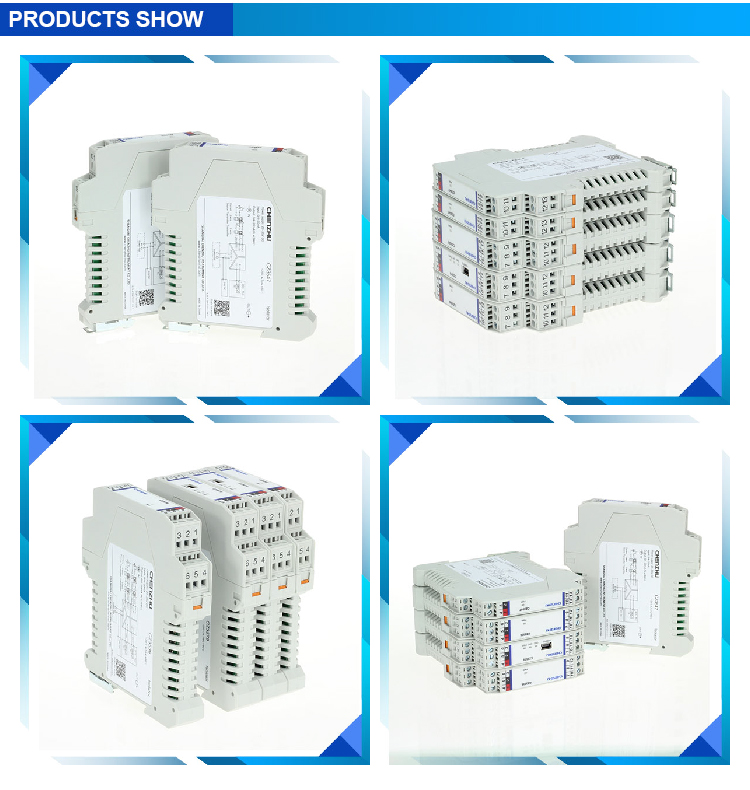

| Product Name | CZ3571 Isolator |
| Number of channels | 1 input/1 output |
| Supply voltage(Ue) | 20~35V DC |
| Input signal | Pt100;Cu50;Cu100 |
| Output signal |
0~20mA;4~20mA;0~5V;1~5V |
| Weight | Approx 100g |
| Field apparatus | 2-RTD;3-wire RTD |
| Number of channels | 1input/1output |
| Dielectric strength | 1500V AC;1minute(among power supply ,input and output ) |
| Temperature drift | 0.01%F.S./℃ |
| Response time | Reach 90% of final value in 1s |
| Insulation resistance | ≥100MΩ;500V DC(among power supply,input,output and the shell) |
| Electromagnetic compatibility | According to IEC 61326-1(GB/T 18268) |
| Weight | Approx 100g |
| Field apparatus | 2-wire RTD;3-wire RTD |
| Input signal | Pt100;Cu50;Cu100 |
| Output signal | 0~20mA;4~20mA;0~5V;1~5V |
| Current output load resistance | RL≤300Ω |
| Voltage output load resistance | RL≥20kΩ |
| Alarm indication | Lower than range, LED L falshing, output current ≈3.8mA;Higher than range, LED H falshing, output current ≈20.8mA;Breakage, LED L and H falshing at the same time, output current ≈20.8mA;Short circuit, LED L and H falshing at the same time, output current ≈3mA |
| Supply voltage(Ue) | 20~35V DC |
| Power protection | Reverse protection of power supply |
| Current consumption | ≤35mA (at 24Vdc supply,20mA output) |
| Power supply mode | Independent power supply |
| Power connecting mode | DIN Rail BUS;Terminal |

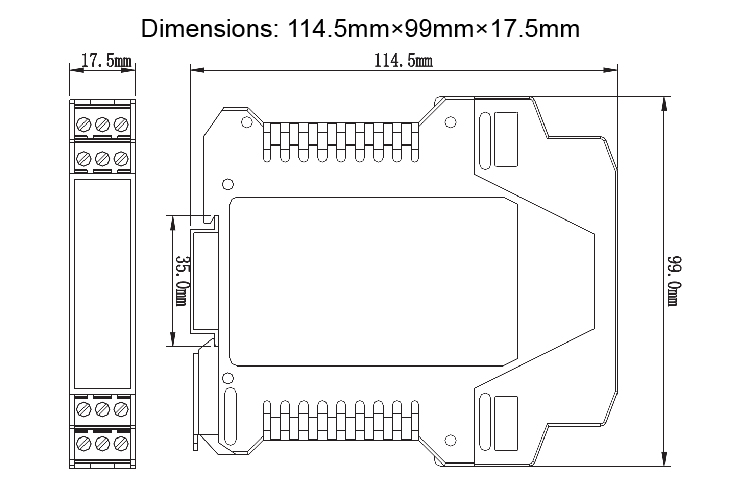

| Depth | 114.5mm |
| Height | 99.0mm |
| Width | 17.5mm |
| Material | PA |
| Degree of protection | IP20 |
| Flammability rating | UL94/V0 |
| Colour | white |
| Electrical fast transient/burst immunity | According to:IEC 61326-1;Class A |
| Surge immunity | According to:IEC 61326-1;Class B |
| Radiated,radio-frequency,electromagnetic field immunity | According to:IEC 61326-1 |
| Electrostatic discharge immunity | According to:IEC 61326-1;Class B |
| Immunity to conducted disturbances, induced by radio-frequency fields | According to:IEC 61326-1 |
| Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz | According to:IEC 61326-1 |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+80℃ |
| Relative humidity | 10%~90% |
| Environmental requirements | The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using |
| Conductor cross section solid range | 0.5~2.5mm² |
| Conductor cross section flexible range | 0.5~2.5mm² |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 24 |
| Stripping length | 8mm |
| Screw thread | M3 |
| Connection method | Screw connection |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
| Mounting type | DIN35mm |
