2inputs/2outputs
0/4~20mA
17.5V/20mA
0/4~20mA
0/1~5V
0/2~10V
24VDC
Terminal Power Supply

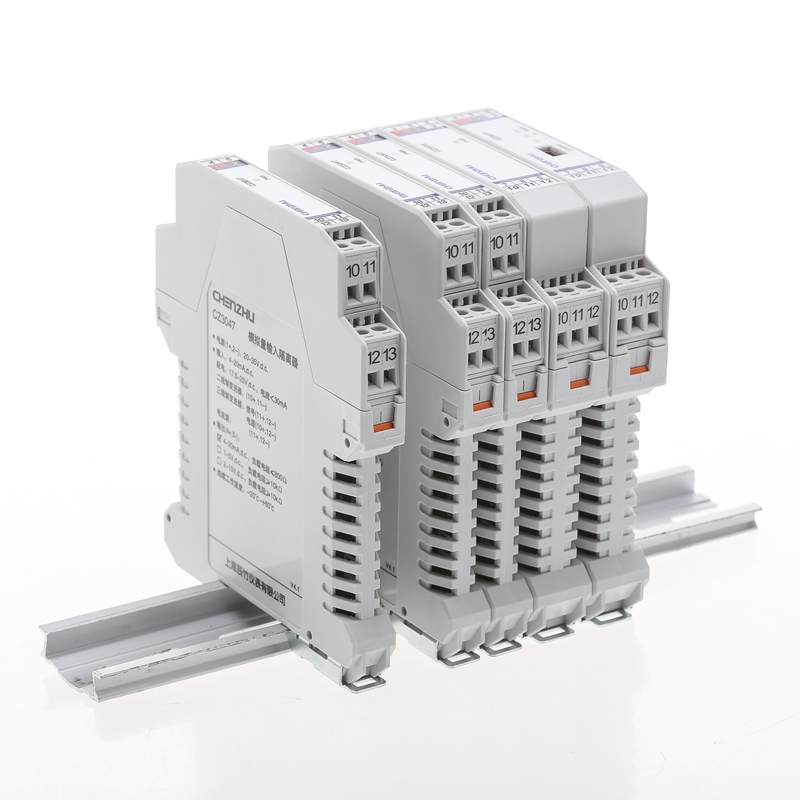

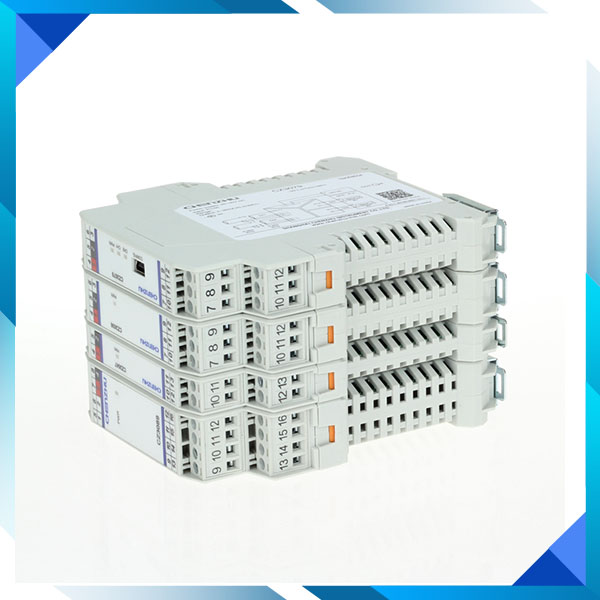

| Product Name | CZ3036 signal isolator |
| Number of channels | 2 inputs 2 outputs |
| Supply voltage(Ue) | 20-35V DC |
| Input signal | 0-20mA,4-20mA |
| Output current | 0-20mA,4-20mA |

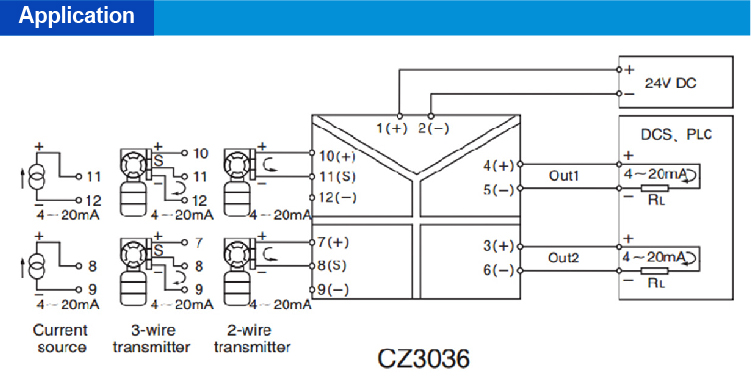

| Field apparatus | 2-wire transmitter,3-wire transmitter, current source |
Packing information
unit packaging size for 1pc of CZ3036 signal isolator:
outer carton for 5 pcs of CZ3036 signal isolator: 17*15*13 cm
outer carton for 10 pcs of CZ3036 signal isolator: 30*18*15 cm
outer carton for 20 pcs of CZ3036 signal isolator: 35*29*14 cm
outer carton for 40 pcs of CZ3036 signal isolator: 35*29*26 cm
FAQ
Q: What information should I provide before order?
A: Please specify the following information:
1. Which Analog input signal you need? 4-20mA or 0-20mA?
2. Which output signal you need? 4-20mA or 0-20mA or 0/1-5V or 0/2-10V?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
A: We are manufacturer, providing own brand product and also ODM/OEM services.
A: ≤ 20 pcs, generally it is 3~7 working days after 100% down-pay; 20-100 pcs, it is 2~4 weeks after 100% down-pay according to quantity; More than 100 pcs, pls contact with our support.
A: 100% T/T in advance.
| Number of channels | 2inputs/2outputs |
| Dielectric strength | 1500V AC;1minute(among power supply ,input and output ) |
| Output accuracy(20°C) | 0.1%F.S. |
| Temperature drift | 0.005%F.S./℃ |
| Response time | Reach 90% of final value in 0.5ms |
| Insulation resistance | ≥100MΩ;500V DC(among power supply,input,output and the shell) |
| Electromagnetic compatibility | According to IEC 61326-1(GB/T 18268) |
| Weight | Approx 150g |
| Field apparatus | 2-wire Transmitter,3-wire Transmitter, Current Source |
| Input signal | 0～20mA;4~20mA |
| Input impedance | ≤50Ω |
| Max. input current | ＜35mA |
| Distribution voltage | 17.5～25V,current＜35mA |
| Output current | 0～20mA;4~20mA |
| Current output load resistance | RL≤300Ω |
| Output voltage | 0~5V;1~5V;0~10V;2~10V |
| Voltage output load resistance | ≥330kΩ(0～5V);≥330kΩ(1～5V);≥660kΩ(0～10V);≥660kΩ(2～10V) |
| Supply voltage(Ue) | 20～35V DC |
| Power protection | Reverse protection of power supply |
| Current consumption | ≤100mA (at 24Vdc supply,20mA output) |
| Power supply mode | Independent power supply |
| Power connecting mode | Terminal |
| Depth | 114.5mm |
| Height | 99.0mm |
| Width | 17.5mm |
| Material | PA |
| Degree of protection | IP20 |
| Flammability rating | UL94/V0 |
| Colour | white |
| Electrical fast transient/burst immunity | According to:IEC 61326-1;Class A |
| Surge immunity | According to:IEC 61326-1;Class B |
| Radiated,radio-frequency,electromagnetic field immunity | According to:IEC 61326-1 |
| Electrostatic discharge immunity | According to:IEC 61326-1;Class A |
| Immunity to conducted disturbances, induced by radio-frequency fields | According to:IEC 61326-1 |
| Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz | According to:IEC 61326-1 |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃～＋80℃ |
| Relative humidity | 10%～90% |
| Environmental requirements | The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using |
| Conductor cross section solid range | 0.5~2.5mm² |
| Conductor cross section flexible range | 0.5~2.5mm² |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 24 |
| Stripping length | 8mm |
| Screw thread | M3 |
| Connection method | Screw connection |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
| Mounting type | DIN35mm |
