1 input 1 output Analog Input Signal Isolator(Loop powered)

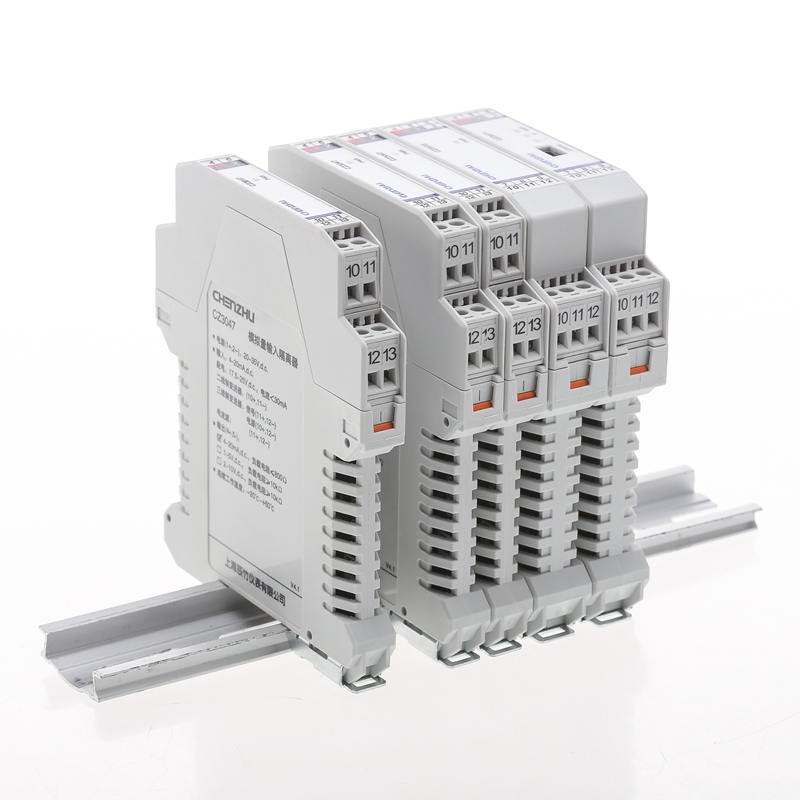

CZ3031  1 input 1 output Analog Input Signal Isolator(Loop powered)
Analog input signal isolator with 1 input 1 output, dual mode without independent power supply, low power consumption 0.1W. Signal isolator connects 2-wire Intelligent Transmitter(HART), 2-wire Intelligent Transmitter or 2-wire Valve Positioner, Electrical Converter.
Number of channels:
1input/1output
Input signal:
4~20mA
Power Distribution:
(Ue-RL×0.02-6)/20mA
Output signal:
4~20mA
Power Supply Mode:
Loop Power Supply
Power Connection Mode:
Terminal Power Supply
HART:
Support
CZ3031
产品详情
产品参数
下载
click to consult
加入对比
加入询价单

1 input 1 output Analog Input Signal Isolator(Loop powered)

1 input 1 output Analog Input Signal Isolator(Loop powered)


Product Name  CZ3031 signal isolator
Number of channels  1 input 1 output
Supply voltage(Ue)  20-30V DC
Input signal  4-20mA,HART
Output current  4-20mA,HART
Field apparatus

  Application 1: 2-wire intelligent transmitter(HART), 2-wire intelligent transmitter Application 2: 2-wire valve positioner, electrical converter Application 2: 2-wire valve positioner, electrical converter

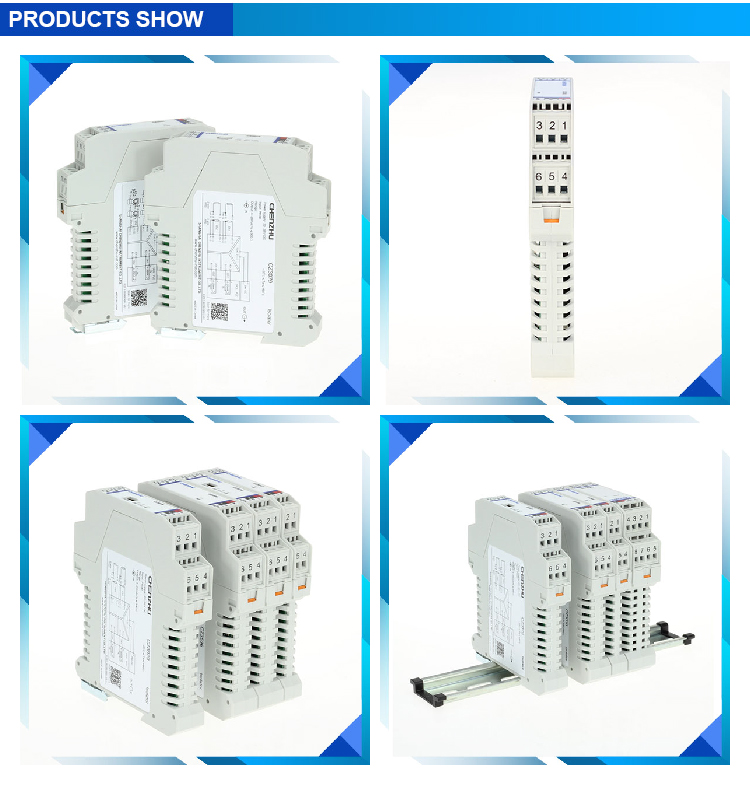

1 input 1 output Analog Input Signal Isolator(Loop powered)

1 input 1 output Analog Input Signal Isolator(Loop powered)

1 input 1 output Analog Input Signal Isolator(Loop powered)

Q: What information should I provide before order?

A: Please specify the following information:

1. Which Analog input signal you need? 4-20mA or HART?

2. Which output signal you need? 4-20mA or HART?


Q: How long is your warranty period ?

A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.


Q: Are you trading company or manufacturer ?

A: We are manufacturer, providing own brand product and also ODM/OEM services.

Q: How long is your delivery time?

A: ≤ 20 pcs, generally it is 3~7 working days after 100% down-pay; 20-100 pcs, it is 2~4 weeks after 100% down-pay  according to quantity; More than 100 pcs,  pls contact with our support.

Q: What is your terms of payment ?

A: 100% T/T in advance.


General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Data communication
Operating conditions
Connection data
Installation
Notes
产品参数
General
Number of channels 1input/1output
Dielectric strength 1500V AC;1minute(between input and output )
Output accuracy(20°C) 0.4%F.S(Application 1);0.2%F.S(Application 2)
Temperature drift 0.01%F.S./℃
Insulation resistance ≥100MΩ;500V DC(among input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 100g
Field apparatus Application 1: 2-wire Intelligent Transmitter(HART), 2-wire Intelligent Transmitter Application 2: 2-wire Valve Positioner, Electrical Converter
Input data
Input signal 4~20mA;HART
Distribution voltage Uo≥Ue-RL×0.02-6
Output data
Output current 4~20mA;HART
Current output load resistance RL≥250Ω(HART)
Load ability ≤(Ui-6)/0.02(Application 2)
Power supply
Supply voltage(Ue) 20~30V DC(Application 1)
Power protection Reverse protection of power supply
Power supply mode Loop powered
Power connecting mode Terminal
Dimensions
Depth 114.5mm
Height 99.0mm
Width 17.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour white
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1
Surge immunity According to:IEC 61326-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Data communication
HART Yes
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Notes
Utilization restriction It is not allowed to use HHC (HART hand-held communicator) in input and output at the same time.
