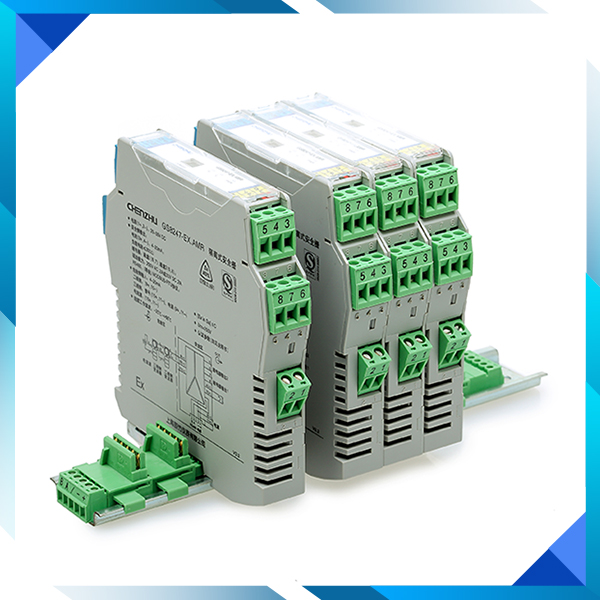

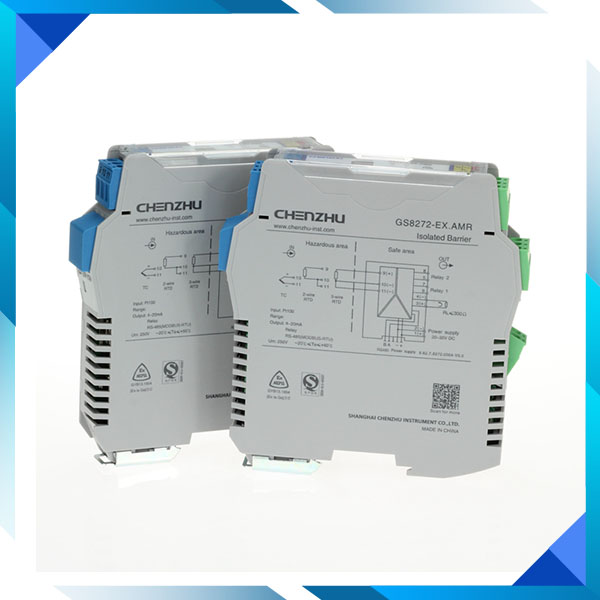

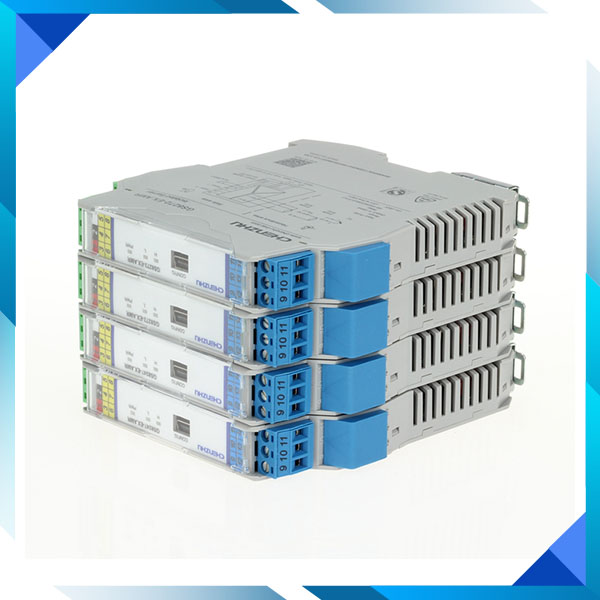

GS8272-EX.AM RTD/TC,4~20mA,RS485 Isolated Barrier(1 channel)

Temperature Input,4~20mA,RS485 Output Isolated Barrier.transfer 4~20mA signal which linearly Transfer by thermal resistance or thermal couple in fidd from hazardous area to safe area isolatedly , at the same time,provide one channel of RS-485 bus output which based on MODBUS-RTU protaol and two channels of relay alarm output. input and output isolation.The product needs an independent power supply.

Number of channels:

1input/2output

Input signal:

PT100

Cu50

Cu100

Analogue Output:

4~20mA

0~20mA

0~5V

1~5V

RS-485 Output:

Involve

Power Connection Mode:

Terminal Power Supply

Bus Power Supply

GS8272-EX.AM

Product details

Technichal Data

Download

click to consult

contrast

enquire

RTD/TC,4~20mA,RS485 Isolated Barrier(1 channel)

Product Name	GS8272-EX.AM Isolated Barrier
Number of channels	1 input/1 output
Supply voltage(Ue)	20~35V DC
Input signal	Pt100;Cu50;Cu100;T;E;J;K;N;R;S;B
EX symbol	[Ex ia Ga]IIC
Weight	Approx 150g
Field apparatus	RTD;TC
