1input/2outputs
Potentiometer0-5kΩ
4~20mA
0~20mA
0~5V
1~5V
24VDC
Terminal Power Supply
Bus Power Supply

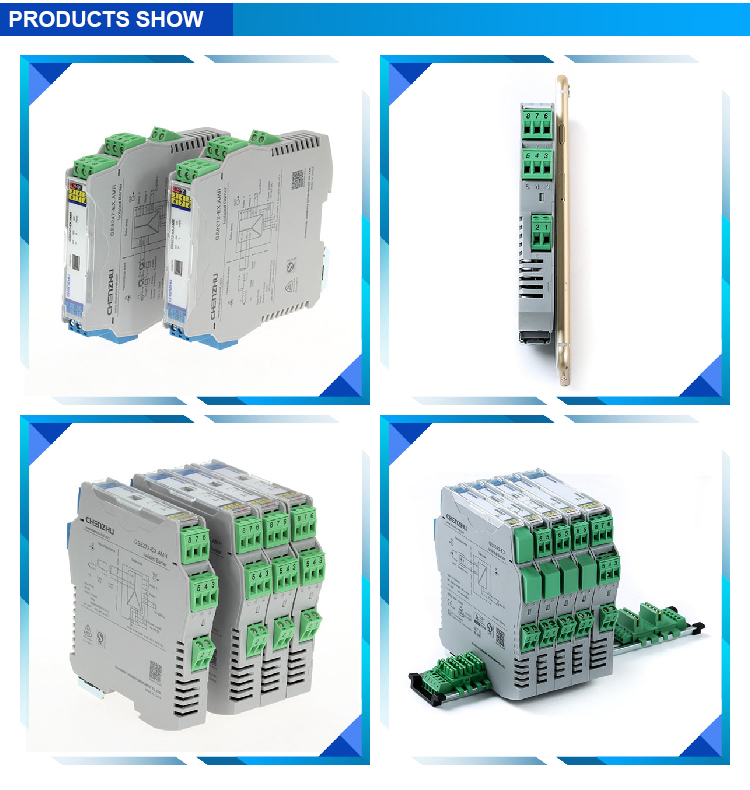

| Product Name | GS8576-EX Isolated Barrier |
| Number of channels | 1input/2outputs |
| Supply voltage(Ue) | 20~35V DC |

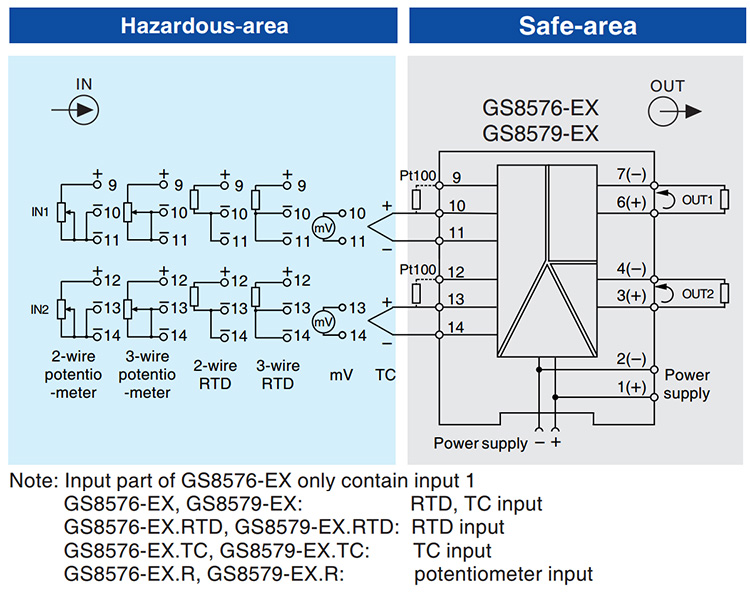

| Input signal | Potentiometer |
| Output signal | 0~20mA;4~20mA;0~5V;1~5V |
| Weight | Approx 150g |
| Field apparatus | Potentiometer |
FAQ
Q: What information should I provide before order?
A: Please confirm the input data, output data and another function you need.
Q: How long is your warranty period?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
Q: Are you trading company or manufacturer ?
A: We are manufacturer, providing own brand product and also ODM/OEM services.
Q: How long is your delivery time?
A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.
Q: What is your terms of payment ?
A: 100% T/T in advance.
| Number of channels | 1input/2outputs |
| Dielectric strength | Non-intrinsically safe part and intrinsically safe part≥2500VAC,power supply part and non-intrinsically safe part≥500VAC |
| Temperature drift | 0.01%F.S./℃ |
| Response time | Reach 90% of final value in 1s |
| Insulation resistance | Non-intrinsically safe part and intrinsically safe part≥100MΩ,power supply part and non-intrinsically safe part≥100MΩ |
| Electromagnetic compatibility | According to IEC 61326-1(GB/T 18268) |
| EX marking | [Ex ia Ga]IIC [Ex iaD] |
| Weight | Approx 150g |
| Field apparatus | Potentiometer |
| Suitable location | zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6 |
| Input signal | Potentiometer |
| Output signal | 0~20mA;4~20mA;0~5V;1~5V |
| Current output load resistance | RL≤300Ω |
| Voltage output load resistance | RL≥20kΩ |
| Alarm indication | Lower than range, LED YELLOW falshing, output current ≈3.8mA;Higher than range, LED RED falshing, output current ≈20.8mA;Breakage, LED YELLOW and RED falshing alternately, output current ≈20.8mA;Short circuit, LED YELLOW and RED falshing alternately, output current ≈3mA |
| Supply voltage(Ue) | 20~35V DC |
| Power protection | Reverse protection of power supply |
| Current consumption | ≤65mA (at 24Vdc supply,20mA output) |
| Power supply mode | Independent power supply |
| Power connecting mode | DIN Rail BUS;Terminal |
| Depth | 118.9mm |
| Height | 106.0mm |
| Width | 17.5mm |
| Brand | Phoenix |
| Material | PC |
| Degree of protection | IP20 |
| Flammability rating | UL94/V0 |
| Colour | gray |
| Approvals | NEPSI |
| NEPSI | [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20 [Ex iaD] Comply with standard: GB 12476.1、GB 12476.4 |
| Max. r.m.s. a.c. or d.c. voltage Um | 250V |
| Max.output voltage Uo | 8.5V(9,10,11) |
| Max.output current Io | 20mA(9,10,11) |
| Max.output power Po | 43mW(9,10,11) |
| IIC Max. external inductance Lo | 3.6mH(9,10,11) |
| IIC Max. external capacitance Co | 6.5μF(9,10,11) |
| IIB Max. external inductance Lo | 10.8mH(9,10,11) |
| IIB Max. external capacitance Co | 60μF(9,10,11) |
| IIA Max. external inductance Lo | 28.8mH(9,10,11) |
| IIA Max. external capacitance Co | 1000μF(9,10,11) |
| Electrical fast transient/burst immunity | According to:IEC 61326-1;Class A |
| Surge immunity | According to:IEC 61326-1;Class B |
| Radiated,radio-frequency,electromagnetic field immunity | According to:IEC 61326-1 |
| Electrostatic discharge immunity | According to:IEC 61326-1;Class A |
| Immunity to conducted disturbances, induced by radio-frequency fields | According to:IEC 61326-1 |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+80℃ |
| Relative humidity | 10%~90% |
| Environmental requirements | The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using |
| Conductor cross section solid range | 0.5~2.5mm² |
| Conductor cross section flexible range | 0.5~2.5mm² |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 24 |
| Stripping length | 8mm |
| Screw thread | M3 |
| Connection method | Screw connection |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
| Mounting type | DIN35mm |
