AI,Isolated Barrier(2 channels,Loop powered)

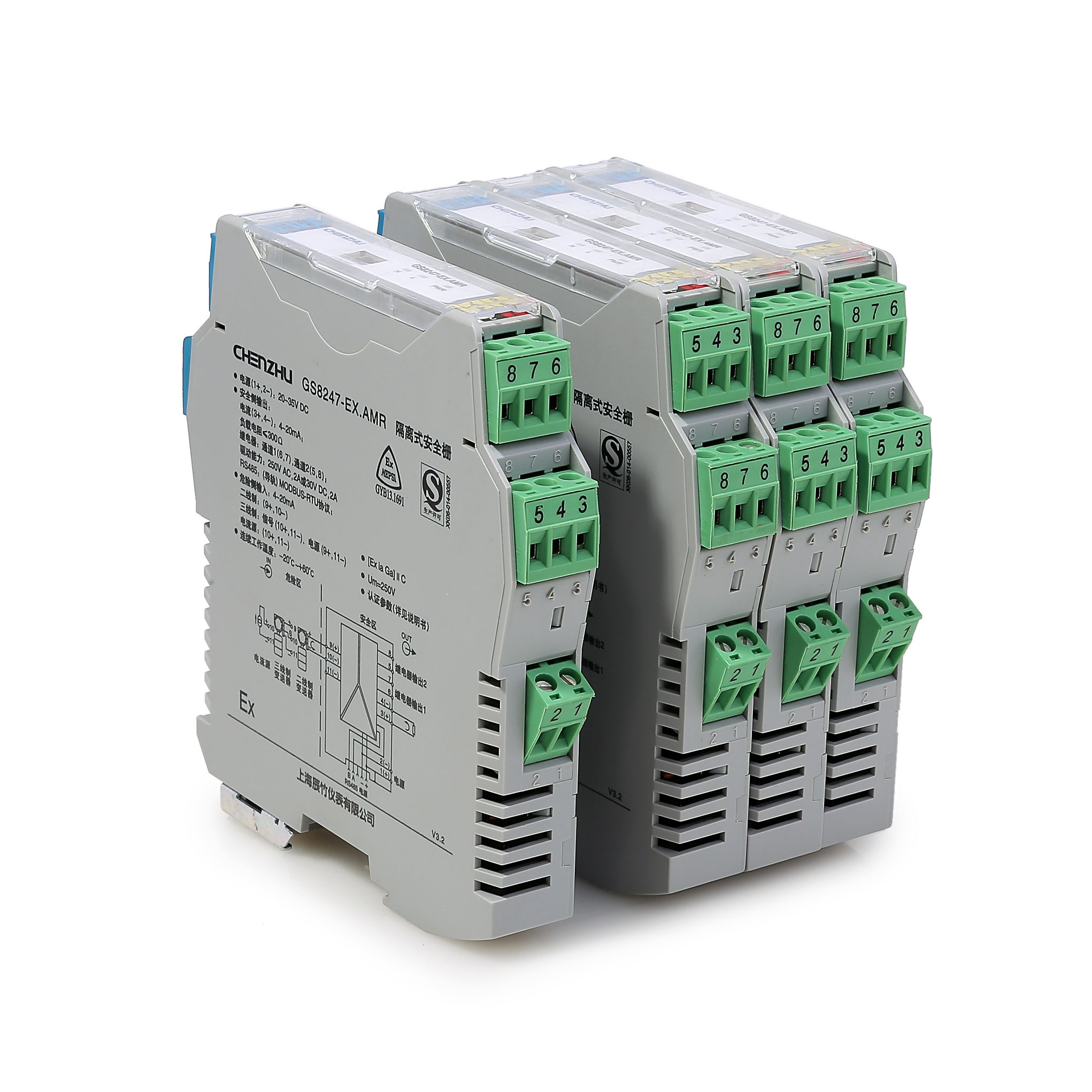

GS8532-EX  AI,Isolated Barrier(2 channels,Loop powered)
It can provide the transmitter located in the hazardous area a separate power, transfer current signal generated by transmitter from a hazardous area to a safe area; can also transfer current signal from a safe area to a hazardous area and drive equipments like actuator in field. It allows bi-directional transmission of HART communication signals.
Number of channels:
2inputs/2outputs
Input signal:
4~20mA
power distribution:
(Ue-RL×0.02-6)/20mA
Output signal:
4~20mA
Power Supply Mode:
Loop Power Supply
Power Connection Mode:
Terminal Power Supply
HART:
Support
GS8532-EX
产品详情
产品参数
下载
click to consult
加入对比
加入询价单

AI,Isolated Barrier(2 channels,Loop powered)

AI,Isolated Barrier(2 channels,Loop powered)


Product Name  GS8532-EX Isolated Barrier
Number of channels  2inputs/2outputs
Supply voltage(Ue)
 20~30V DC(Application 1)
Input signal  4~20mA;HART
Output signal  4~20mA;HART
Weight  Approx 150g
Field apparatus  Application1: 2-wire intelligent transmitter(HART), 2-wire intelligent transm  itter Application 2: 2-wire valve positioner, electrical converter

AI,Isolated Barrier(2 channels,Loop powered)

AI,Isolated Barrier(2 channels,Loop powered)


AI,Isolated Barrier(2 channels,Loop powered)

AI,Isolated Barrier(2 channels,Loop powered)


General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Data communication
Operating conditions
Connection data
Installation
Notes
产品参数
General
Number of channels 2inputs/2outputs
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC
Output accuracy(20°C) 0.4%F.S(Application 1);0.2%F.S(Application 2)
Temperature drift 0.01%F.S./℃
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ib Gb]IIC
Weight Approx 150g
Field apparatus Application1: 2-wire HART Transmitter,2-wire TransmitterApplication 2: 2-wire Valve Positioner, Electrical Converter
Suitable location zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal 4~20mA;HART
Open circuit voltage ≤23.1V
Distribution voltage Uo≥Ue-RL×0.02-6(Application 1)
Output data
Output signal 4~20mA;HART
Current output load resistance RL≥250Ω(HART)
Load ability RL≤(Ui-6)/0.02(Application 2)
Power supply
Supply voltage(Ue) 20~30V DC(Application 1)
Power protection Reverse protection of power supply
Power supply mode Loop powered
Power connecting mode Terminal
Dimensions
Depth 118.9mm
Height 106.0mm
Width 12.5mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ib Gb] IIC Comply with standard: GB 3836.1、GB 3836.4
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 23.1V(7,8;9,10)
Max.output current Io 29mA(7,8;9,10)
Max.output power Po 670mW(7,8;9,10)
IIC Max. external inductance Lo 0.5mH(7,8.9,10)
IIC Max. external capacitance Co 0.096μF(7,8;9,10)
IIB Max. external inductance Lo 1.5mH(7,8;9,0)
IIB Max. external capacitance Co 0.288μF(7,8;9,10)
IIA Max. external inductance Lo 4.0mH(7,8;9,10)
IIA Max. external capacitance Co 0.528μF(7,8;9,10)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class B
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Data communication
HART Yes
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Notes
Utilization restriction 1. It is not allowed to use HHC (HART hand-held communicator) in hazardous area and safe area at the same time.2. HHC (HART hand-held communicator) used in hazardous area must have an EX certification.
