1input/1output
0/4~20mA
0/4~20mA
0/1~5V
24VDC
Terminal Power Supply

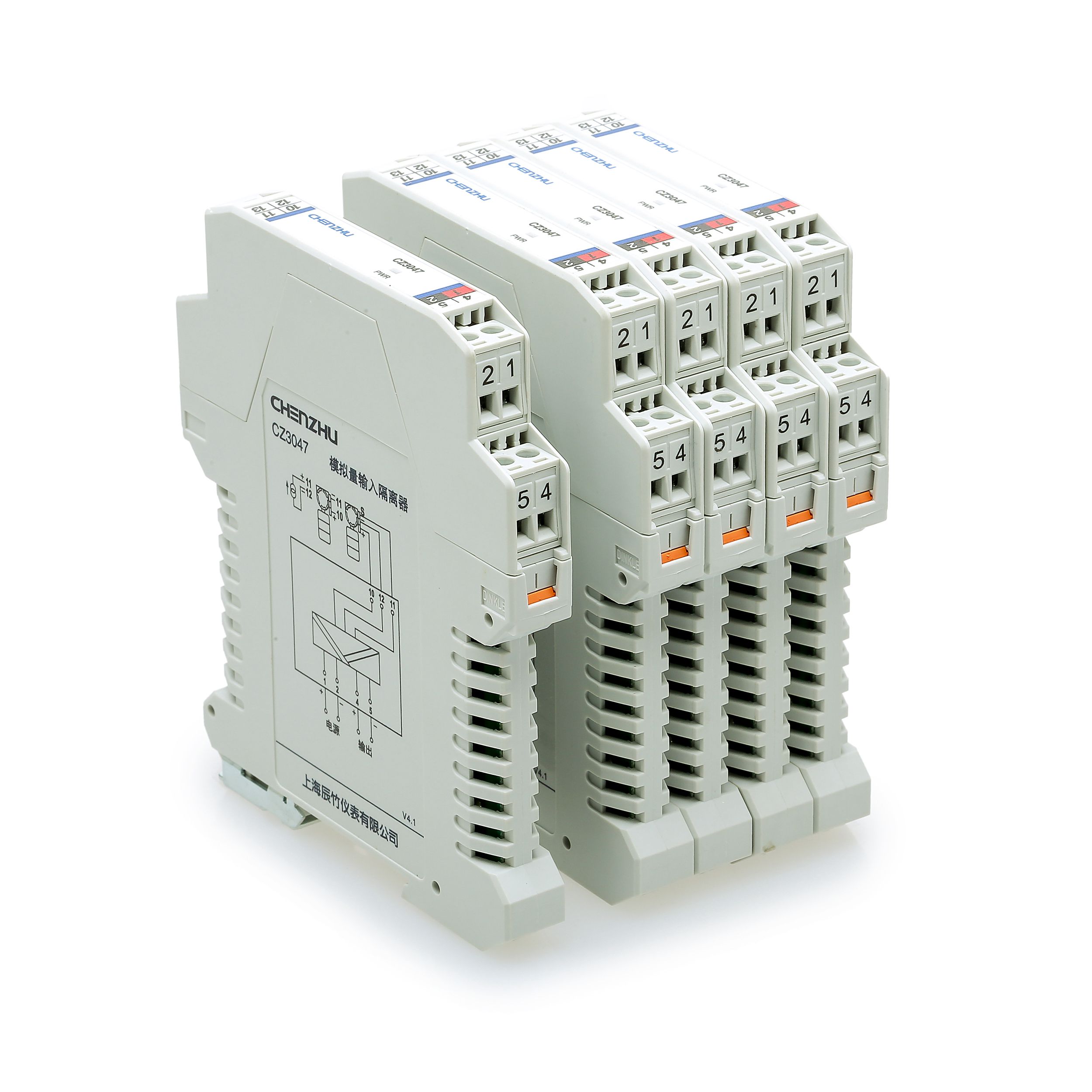

| Product Name | CZ3067 signal isolator |
| Number of channels | 1 input 1 output |
| Supply voltage(Ue) | 20-35V DC |
| Input signal | 0-20mA,4-20mA |
| Output signal | 0-20mA,4-20mA,0-5V,1-5V |
| Field apparatus | 2-wire valve positioner,electric converter |
Packing information
unit packaging size for 1pc of CZ3067 signal isolator:
outer carton for 5 pcs of CZ3067 signal isolator: 17*15*13 cm
outer carton for 12 pcs of CZ3067 signal isolator: 30*18*15 cm
outer carton for 30 pcs of CZ3067 signal isolator: 35*29*14 cm
outer carton for 60 pcs of CZ3067 signal isolator: 35*29*26 cm
FAQ
Q: What information should I provide before order?
A: Please specify the following information:
1. Which Analog intput signal you need? 0-20mA,4-20mA?
2. Which output signal you need? 4-20mA or 0-20mA or 0/1-5V?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
A: We are manufacturer, providing own brand product and also ODM/OEM services.
A: ≤ 20 pcs, generally it is 3~7 working days after 100% down-pay; 20-100 pcs, it is 2~4 weeks after 100% down-pay according to quantity; More than 100 pcs, pls contact with our support.
A: 100% T/T in advance.
| Number of channels | 1input/1output |
| Dielectric strength | 1500V AC;1minute(among power supply ,input and output ) |
| Output accuracy(20°C) | 0.1%F.S. |
| Temperature drift | 0.005%F.S./℃ |
| Response time | Reach 90% of final value in 0.5ms |
| Insulation resistance | ≥100MΩ;500V DC(among power supply,input,output and the shell) |
| Electromagnetic compatibility | According to IEC 61326-1(GB/T 18268) |
| Weight | Approx 100g |
| Field apparatus | 2-wire Valve Positioner,Electric Converter |
| Input signal | 0～20mA;4～20mA |
| Voltage drop | ≤2V |
| Max. input current | ＜30mA |
| Output current | 0～20mA;4～20mA |
| Current output load resistance | RL≤800Ω |
| Output voltage | 0~5V;1~5V |
| Voltage output load resistance | RL≥330kΩ |
| Supply voltage(Ue) | 20~35V DC |
| Power protection | Reverse protection of power supply |
| Current consumption | ≤40mA (at 24Vdc supply,20mA output) |
| Power supply mode | Independent power supply |
| Power connecting mode | Terminal |
| Depth | 114.5mm |
| Height | 99.0mm |
| Width | 12.5mm |
| Material | PA |
| Degree of protection | IP20 |
| Flammability rating | UL94/V0 |
| Colour | white |
| Electrical fast transient/burst immunity | According to:IEC 61326-1;Class A |
| Surge immunity | According to:IEC 61326-1;Class A |
| Radiated,radio-frequency,electromagnetic field immunity | According to:IEC 61326-1 |
| Electrostatic discharge immunity | According to:IEC 61326-1;Class A |
| Immunity to conducted disturbances, induced by radio-frequency fields | According to:IEC 61326-1 |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+80℃ |
| Relative humidity | 10%~90% |
| Environmental requirements | The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using |
| Conductor cross section solid range | 0.5~2.5mm² |
| Conductor cross section flexible range | 0.5~2.5mm² |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 24 |
| Stripping length | 8mm |
| Screw thread | M3 |
| Connection method | Screw connection |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
| Mounting type | DIN35mm |
