Frequency input,Isolated Barrier(2 channels)

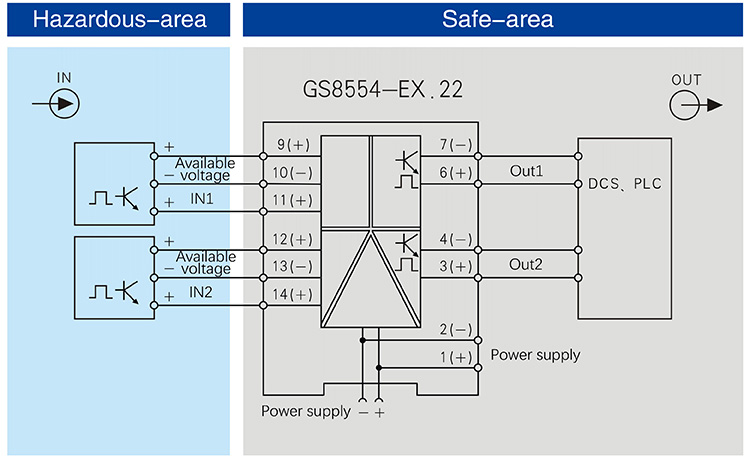

GS8554-EX.22  Frequency input,Isolated Barrier(2 channels)
24V level,It can provide the transmitter located in the hazardous area a separate power,The product requires independent power supply, power supply, transfer current signal generated by transmitter from a hazardous area to a safe area, can also transfer current signal from a safe area to a hazardous area and drive equipments like actuator in field. input and output three isolation.
Number of channels:
2input/2outputs
Input signal:
Electric Level/NPN Transistor/PNP Transistor
Power Distribution:
24V/20mA
Output signal:
12V Electric Level
24V Electric Level
Transistor
Power Supply Mode:
24VDC
Power Connection Mode:
Terminal Power Supply
Bus Power Supply
GS8554-EX.22
产品详情
产品参数
下载
click to consult
加入对比
加入询价单

Frequency input,Isolated Barrier(2 channels)

Frequency input,Isolated Barrier(2 channels)


Product Name GS8554-EX.22 Isolated Barrier
Number of channels 2inputs/2outputs
Supply voltage(Ue) 20~35V DC
Input signal NPN;PNP;Level signal
Output signal 12V level;24V level;transistor
Weight Approx 150g
Field apparatus 2-wire Frequency signal source,3-wire Frequency signal source

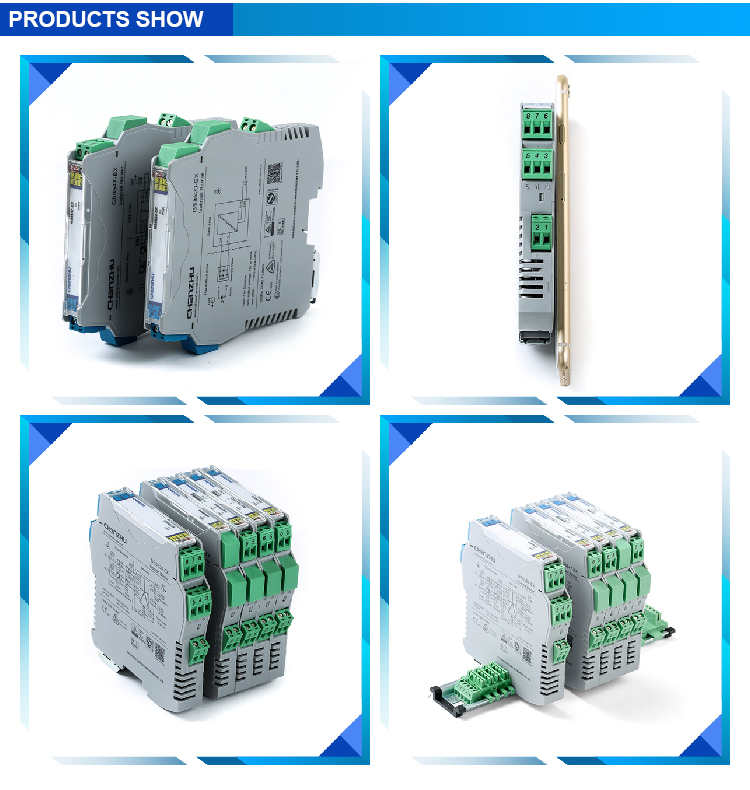

Frequency input,Isolated Barrier(2 channels)Frequency input,Isolated Barrier(2 channels)


Frequency input,Isolated Barrier(2 channels)

Frequency input,Isolated Barrier(2 channels)


General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Operating conditions
Connection data
Installation
Others
产品参数
General
Number of channels 2inputs/2outputs
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC
Weight Approx 150g
Field apparatus 2-wire Frequency signal source,3-wire Frequency signal source
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal NPN;PNP;Level signal
Open circuit voltage ≤26V
Distribution voltage Voltage: ≥16V at 20mA
Level signal input VH≥4V;VL≤1V,frequency≤50kHz
NPN input Frequency≤20kHz
PNP input Frequency≤20kHz
Output data
Output signal 12V level;24V level;transistor
Transistor output Transistor collector output:High level Vcc;Low level≤2.5V(drive current≤10mA);Transistor emitter output:High level Vcc-2.5V;Low level≤0.5V(drive current≤10mA);Note:"Vcc"is external power supply of output,Vcc≤40V
Level signal output 24V series PLC,DCS high level 16V≤VH≤24V,12V series PLC,DCS high level 9V≤VH≤12V,low level VL≤0.5V
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤160mA (at 24Vdc supply,12V/20mA distribution)
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal
Dimensions
Depth 118.9mm
Height 106.0mm
Width 17.5mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 28V(9,10,11;12,13,14)
Max.output current Io 93mA(9,10,11;12,13,14)
Max.output power Po 651mW(9,10,11;12,13,14)
IIC Max. external inductance Lo 4.2mH(9,10,11;12,13,14)
IIC Max. external capacitance Co 0.083μF(9,10,11;12,13,14)
IIB Max. external inductance Lo 12.6mH(9,10,11;12,13,14)
IIB Max. external capacitance Co 0.65μF(9,10,11;12,13,14)
IIA Max. external inductance Lo 33.6mH(9,10,11;12,13,14)
IIA Max. external capacitance Co 2.15μF(9,10,11;12,13,14)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class A
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Others
Switch setting function Type of input signal(level transistor)can be changed through setting K1,K2
