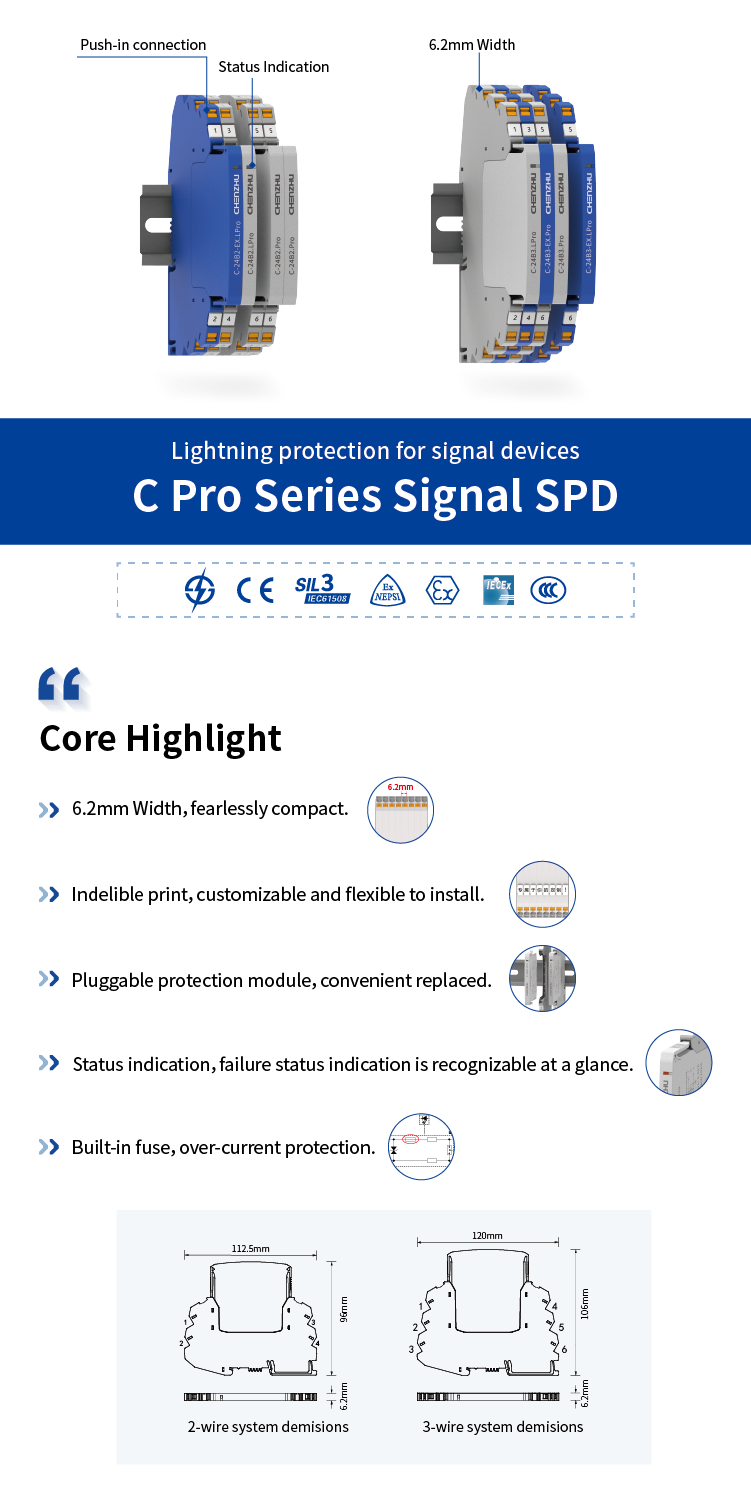

24V
2
10kA
Push-in connection
| Features | 24V; 10kA; Intrinsic Safety;Two Wire; Pluggable protection module |
| Protected Objects/Systems | AI;AO;DI;DO |
| Depth | 96.0mm |
| Width | 6.2mm |
| Height | 112.5mm |
| Colors | Blue |
| Flame Retardant Grade | V0 |
| Protection Level | IP20 |
| Material | PA66 |
| Brand | Dinkle |
| Response Time | 1ns |
| Resistance per Wire | 1ohm |
| Bandwidth | 45MHz（-0.5dB) |
| Leakage Current | ＜1uA |
| Maximun continuous operating voltage Uc | 32 VDC |
| Nominal operating voltage Un | 24 VDC |
| Nominal Operating Current IL | 500mA |
| Voltage Protection Level Up（8/20us) | 60V（Line to Line）/830V（Line to Ground） |
| Impulse Current Iimp（10/350us) | 2.5kA |
| Maximum Discharge Current Imax（8/20us） | 20kA |
| Nominal Discharge Current In（8/20us) | 10kA |
| Maximum Internal Inductance Li | 0mH |
| Maximum Internal Capacitance Ci | 0μF |
| Maximum Input Power Pi | 5.32W |
| Maximum Input Current Ii | 500mA |
| Maximum Input Voltage Ui | 30V |
| Certification | Explosion-Proof Certification;Lightning Protection Certification;Functional Safety Certification; CE Certification |
| Lightning Protection Certification | Shanghai Lightning Protection Products Test Center |
| Functional Safety | SIL3 |
| Names | GB/T 18802.21 / IEC 61643-21 |
| Maximum Altitude | 2000m |
| Applicable Location | Cabinet |
| Permissible Humidity (Operation) | 10%—90% |
| Ambient Temperature (Storage) | -40—85℃ |
| Ambient Temperature (Operation) | T4:-40~+80℃; T5:-40~+75℃; T6:-40~+35℃ |
| Connection Method | Terminal Connection |
| Stripping Length | 8mm |
| Conductor Cross Section Flexible | 0.2—2.5mm2 |
| Conductor Cross Section Solid | 0.2—4mm2 |
| Mounting Method | 35mm Lead Rail |
| Interface | Push-in |
| Mounting Position | Cabinet |
