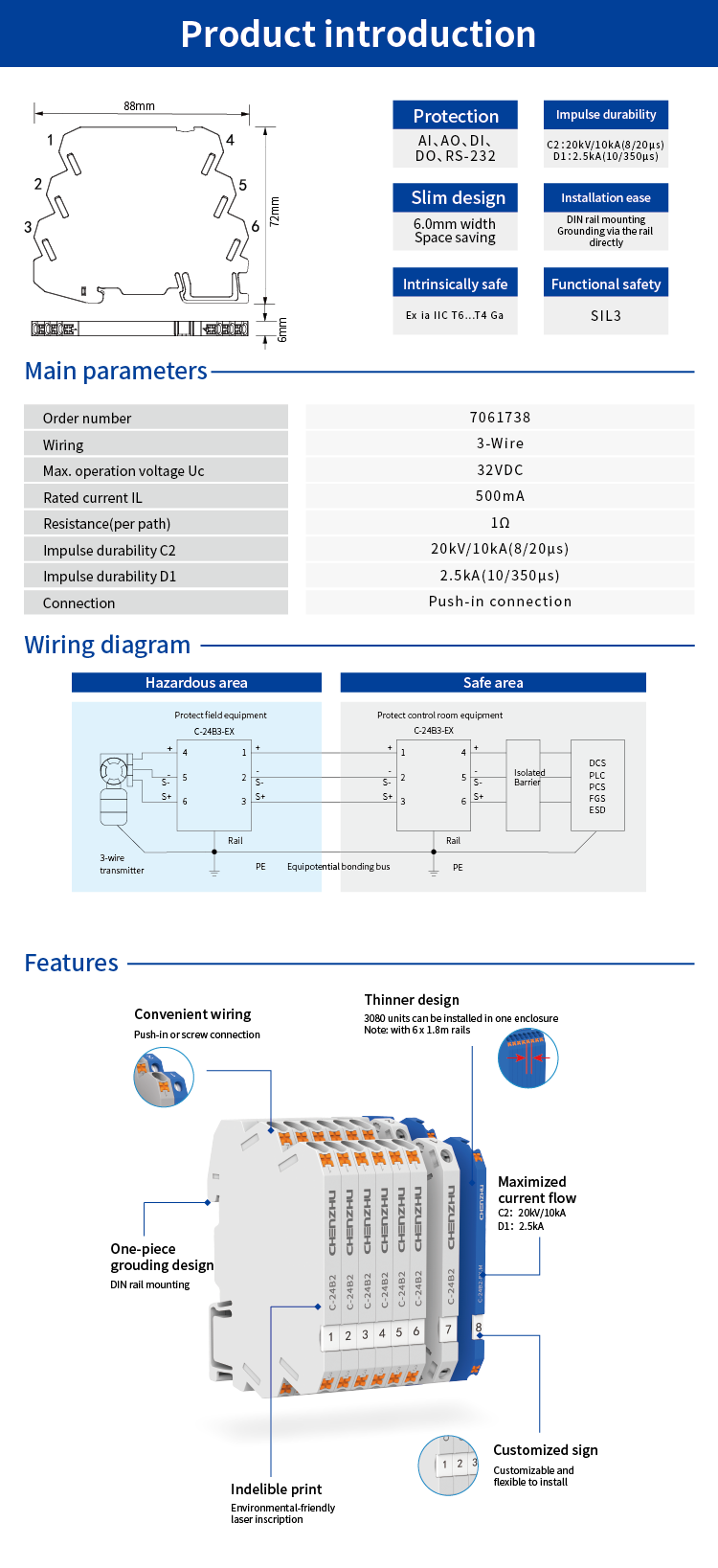

Product Features
| Features |
24V; 10kA; Intrinsic Safety; Three Wire
|
Protections
| Protected Objects/Systems |
AI;AO;DI;DO;RS-232
|
Dimensions
| Depth |
72.0mm
|
| Width |
6.0mm
|
| Height |
88.0mm
|
Housing
| Colors |
Blue
|
| Flame Retardant Grade |
V0
|
| Protection Level |
IP20
|
| Material |
PA66
|
| Brand |
Dinkle
|
Basic Parameter
| Response Time |
1ns
|
| Resistance per Wire |
1ohm
|
| Bandwidth |
40MHz（-0.5dB)
|
| Leakage Current |
＜1uA
|
| Maximun continuous operating voltage Uc |
32 VDC
|
| Nominal operating voltage Un |
24 VDC
|
| Nominal Operating Current IL |
500mA
|
Security Data（Lightning Protection）
| Voltage Protection Level Up（8/20us) |
60V（Line to Line）/600V（Line to Ground）
|
| Impulse Current Iimp（10/350us) |
2.5kA
|
| Maximum Discharge Current Imax（8/20us） |
20kA
|
| Nominal Discharge Current In（8/20us) |
10kA
|
Security Data（Explosion-Proof）
| Maximum Internal Inductance Li |
0mH
|
| Maximum Internal Capacitance Ci |
0μF
|
| Maximum Input Power Pi |
5.32W
|
| Maximum Input Current Ii |
500mA
|
| Maximum Input Voltage Ui |
30V
|
Safety Characteristic Parameter（SIL）
| Safety Integrity Level（SIL） |
SIL3
|
| Safe Failure Fraction（SFF） |
90.62%
|
| λDD |
2.48E-08
|
| λDU |
2.57E-09
|
| λSD |
1.23E-08
|
| λSU |
6.05E-08
|
Product Approvals
| Certification |
Lightning Protection Certification;Functional Safety Certification; CE Certification
|
Certification
| Lightning Protection Certification |
Shanghai Lightning Protection Products Test Center
|
| Functional Safety |
SIL3
|
Standards
| Names |
GB/T 18802.21 / IEC 61643-21; GB/ T 3836.1 / IEC 60079-0; GB/ T 3836.4 / IEC 60079-11; IEC 61508
|
Ambient Requirements
| Maximum Altitude |
2000m
|
| Applicable Location |
Cabinet
|
| Permissible Humidity (Operation) |
10%—90%
|
| Ambient Temperature (Storage) |
-40—85℃
|
| Ambient Temperature (Operation) |
T4:-40~+80℃ T5:-40~+70℃ T6:-40~+50℃
|
Connection Parameters
| Connection Method |
Terminal Connection
|
| Stripping Length |
8mm
|
| Conductor Cross Section Flexible |
0.2—2.5mm2
|
| Conductor Cross Section Solid |
0.2—4mm2
|
Mounting
| Mounting Method |
35mm Lead Rail
|
| Interface |
Push-in
|
| Mounting Position |
Cabinet
|
