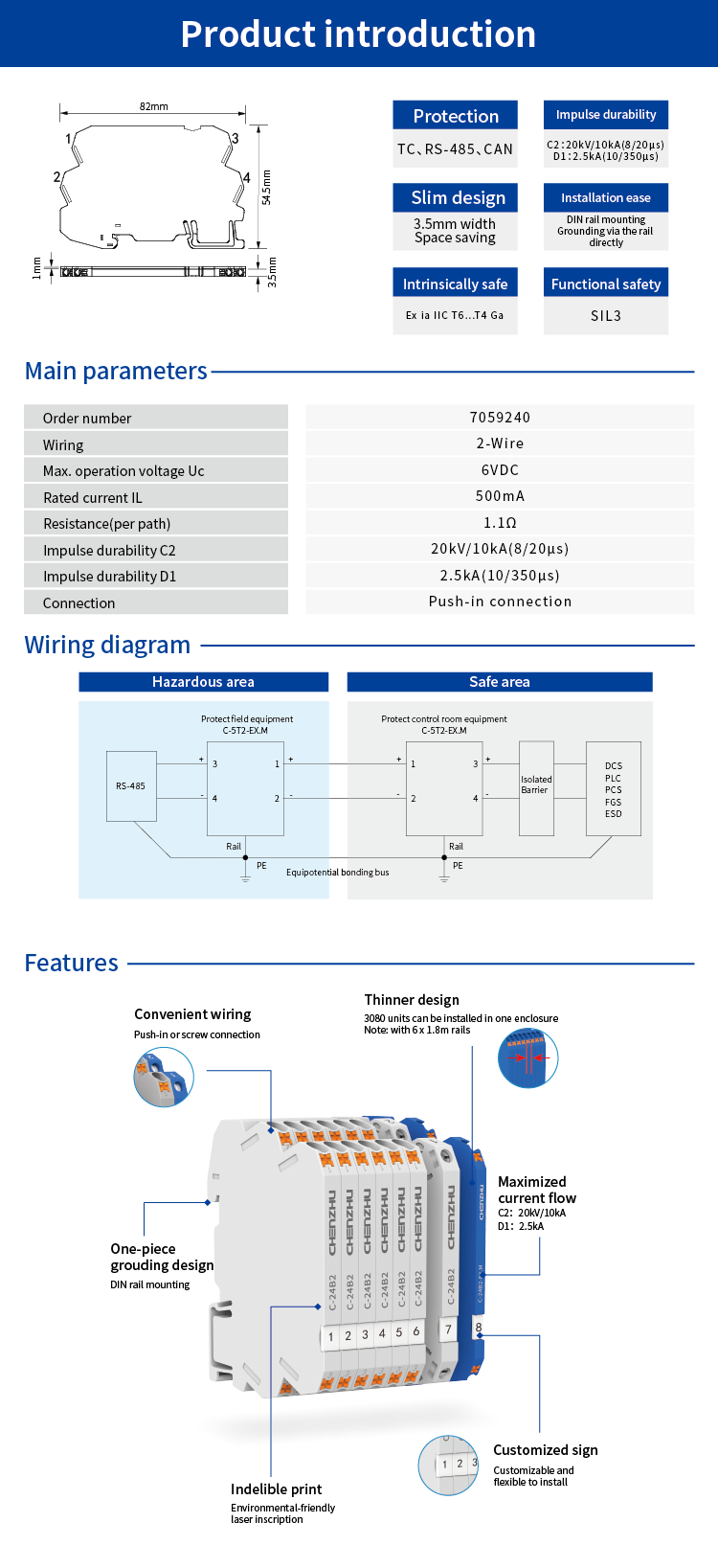

Product Features
| Features |
5V; 10kA; Intrinsic Safety; Two Wire
|
Protections
| Protected Objects/Systems |
TC; RS-485; CAN
|
Dimensions
| Depth |
54.5mm
|
| Width |
6.0mm
|
| Height |
82.0mm
|
Housing
| Colors |
Blue
|
| Flame Retardant Grade |
V0
|
| Protection Level |
IP20
|
| Material |
PA66
|
| Brand |
Dinkle
|
Basic Parameter
| Response Time |
1ns
|
| Resistance per Wire |
1.1ohm
|
| Bandwidth |
220kHz（-0.5dB)
|
| Leakage Current |
＜10uA
|
| Maximun continuous operating voltage Uc |
6VDC
|
| Nominal operating voltage Un |
5VDC
|
| Nominal Operating Current IL |
500mA
|
Security Data（Lightning Protection）
| Voltage Protection Level Up（8/20us) |
30V（Line to Line）/600V（Line to Ground）
|
| Impulse Current Iimp（10/350us) |
2.5kA
|
| Maximum Discharge Current Imax（8/20us） |
20kA
|
| Nominal Discharge Current In（8/20us) |
10kA
|
Security Data（Explosion-Proof）
| Maximum Internal Inductance Li |
0mH
|
| Maximum Internal Capacitance Ci |
0μF
|
| Maximum Input Power Pi |
5.32W
|
| Maximum Input Current Ii |
500mA
|
| Maximum Input Voltage Ui |
6V
|
Safety Characteristic Parameter（SIL）
| Safety Integrity Level（SIL） |
SIL3
|
| Safe Failure Fraction（SFF） |
90.75%
|
| λDD |
1.68E-08
|
| λDU |
1.71E-09
|
| λSD |
0.00E+00
|
| λSU |
5.37E-08
|
Product Approvals
| Certification |
Explosion-Proof Certification;Lightning Protection Certification;Functional Safety Certification; CE Certification
|
Certification
| Explosion-Proof Certification |
Ex ia IIC T6…T4 Ga
|
| Lightning Protection Certification |
Shanghai Lightning Protection Products Test Center
|
| Functional Safety |
SIL3
|
Ambient Requirements
| Maximum Altitude |
2000m
|
| Applicable Location |
Cabinet、Explosion-Proof Tank
|
| Permissible Humidity (Operation) |
10%—90%
|
| Ambient Temperature (Storage) |
-40—85℃
|
| Ambient Temperature (Operation) |
T4:-40~+80℃ T5:-40~+70℃ T6:-40~+50℃
|
Connection Parameters
| Connection Method |
Terminal Connection
|
| Stripping Length |
8mm
|
| Conductor Cross Section Flexible |
0.2—1.5mm2
|
| Conductor Cross Section Solid |
0.2—1.5mm2
|
Mounting
| Mounting Method |
35mm Lead Rail
|
| Interface |
Push-in
|
| Mounting Position |
Cabinet
|
5V
