DO Signal (SIS)
24V DC
1NO
3A
| Product Name | CZSR8402-1A DO signal (SIS) input Safety Relay |
| Number of channels | Single channel |
| Supply voltage(Ue) | 24V DC |
| Input signal | DO signal (SIS) |
| Output signal | Relay: 1NO |
| Ambient temperature | -20℃~+60℃ |
| Certifications |
TUV SIL3; CE; EX NEPSI; ETC |
| Application | DO Signal (SIS) |
| General features | DO Signal (SIS); 24V DC; 1NO; 3A |
| Supply Voltage (Ue) | 15V~35V DC |
| Current consumption | ≤80mA (24V DC) |
| Power protection | Reverse protection |
| Power supply mode | Independent power supply |
| Power connecting mode | Terminal |
| Input device | DO Signal (SIS) |
| Input current | ≤8mA |
| Max. overall cable resistance | ≤50KΩ |
| Output signal | Relay contact |
| Number of contacts | 1 |
| Contact type | 1NO |
| Contact material | AgSnO₂ |
| Contact fuse protection | 10A gL/gG NEOZED(NO) |
| Utilisation category | AC-15,3A/230V; DC-13,3A/24V |
| Switch-on delay | ≤100ms |
| Delay-on de-energisation | ≤30ms |
| Recovery time | ≤100ms |
| Supply interruption before de-energisation | 20ms |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+80℃ |
| Relative humidity | 10%~90% |
| Vibration | Frequency: 10Hz~55Hz; Amplitude: 0.35mm |
| Overvoltage category | Ⅲ |
| Pollution degree | 2 |
| Rated insulation voltage | 250V AC |
| Rated impulse withstand voltage | Input~Output: 6000V (1.2/50us) |
| Insulation strength | 1500V AC, 1min |
| Insulation resistance | Input~Output: ≥100MΩ |
| Airgap creepage | In accordance with EN 60947-1 |

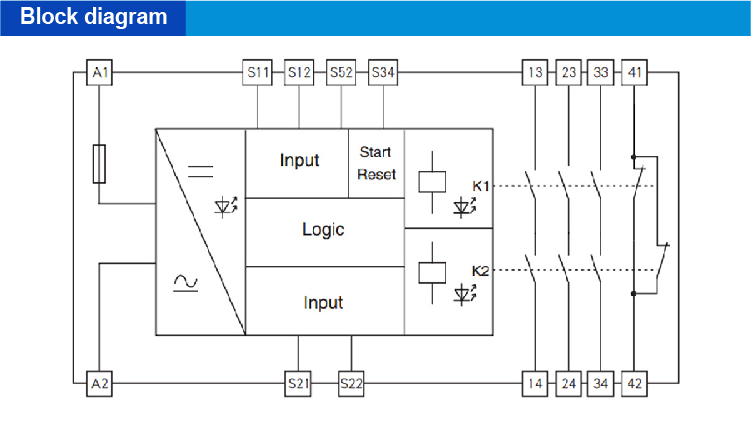

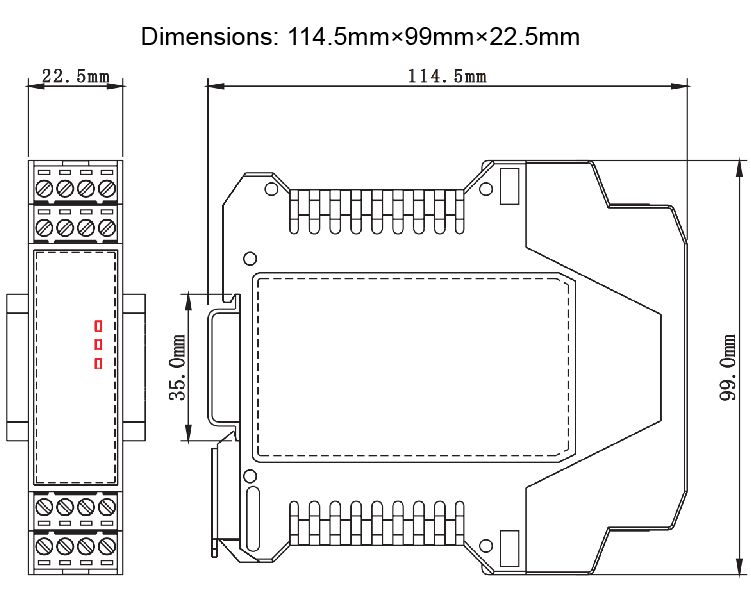

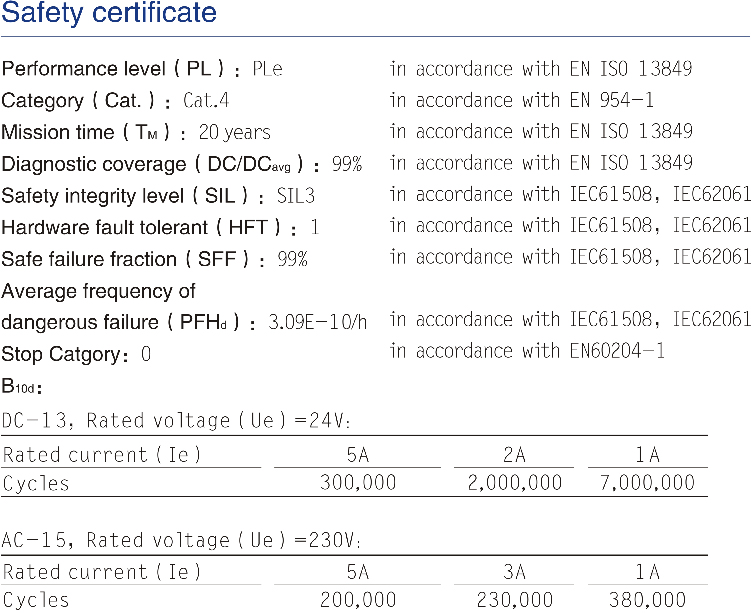

| Depth | 114.5mm |
| Height | 99.0mm |
| Width | 22.5mm |
| Material | PA |
| Protection type | IP20 |
| Flammability rating | UL94/V0 |
| Colour | Yellow/Grey |
| Approvals | SIL (TUV); EX NEPSI |
| Functional safety | SIL3, in accordance with IEC 61508 |
| CE | LVD directive |
| Type of equipment | Type A |
| Safety integrity level (SIL) | SIL 3 |
| Mode of operation (Low Demand) | IEC 61508 - Low Demand |
| Safe failure fraction (Low Demand) (SFF) | ≥99% |
| Proof test interval (Low Demand) (PTI) | 20 years |
| λS (Low Demand) | 5.87E-07 |
| λDU (Low Demand) | 4.00E-09 |
| λDD (Low Demand) | 3.96E-07 |
| Average probability of dangerous failure on demand (Low Demand) (PFDAVG) | 1.77E-05 |
| Diagnostic coverage (Low Demand) （DC） | ≥99% |
| Mode of operation (High Demand) | IEC 61508 - High Demand |
| Safe failure fraction (High Demand) (SFF) | ≥99% |
| Proof test interval (High Demand) (PTI) | 20 years |
| λS (High Demand) | 5.87E-07 |
| λDU (High Demand) | 4.00E-09 |
| λDD (High Demand) | 3.96E-07 |
| Average probability of dangerous failure on demand (High Demand) (PFDAVG) | 2.03E-10 |
| Diagnostic coverage (High Demand) （DC） | ≥99% |
| Electromagnetic compatibility | In accordance with IEC 61326-1(GB/T 18268), IEC 61326-3-1 |
| Electrical fast transient/burst immunity | In accordance with IEC 61326-3-1 |
| Surge immunity | In accordance with IEC 61326-3-1 |
| Radiated,radio-frequency,electromagnetic field immunity | In accordance with IEC 61326-3-1 |
| Electrostatic discharge immunity | In accordance with IEC 61326-3-1 |
| Immunity to conducted disturbances, induced by radio-frequency fields | In accordance with IEC 61326-3-1 |
| Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz | In accordance with IEC 61326-3-1 |
| Conductor cross section solid range | 0.5~2.5mm² |
| Conductor cross section flexible range | 0.5~2.5mm² |
| Min. conductor cross section (AWG) | 24 |
| Max. conductor cross section (AWG) | 12 |
| Stripping length | 8mm |
| Screw thread | M3 |
| Connection method | Screw terminals |
| Min. tightening torque | 0.5Nm |
| Max. tightening torque | 0.6Nm |
| Mounting type | DIN35mm |
