E-Stop button, safety gate | 230V AC | 3NO+1NC | Auto/Manual Reset
CZSR8003-3A1B  E-Stop button, safety gate | 230V AC | 3NO+1NC | Auto/Manual Reset
CZSR8003-3A1B is suitable for the application of E-Stop button and safety gate, with the power supply of 230V AC, and 3 safety output contacts (N/O) and 1 auxiliary output contact (N/C). It can be operated in single or double channel mode, manual or automatic reset, and with the function of monitoring the short circuit between channels.
Input Device:
E-Stop button, safety gate
Supply Voltage:
230V AC
Number of Contacts:
3NO+1NC
Reset Mode:
Auto/Manual reset
CZSR8003-3A1B
产品详情
产品参数
下载
click to consult
加入对比
加入询价单

E-Stop button, safety gate | 230V AC | 3NO+1NC | Auto/Manual Reset

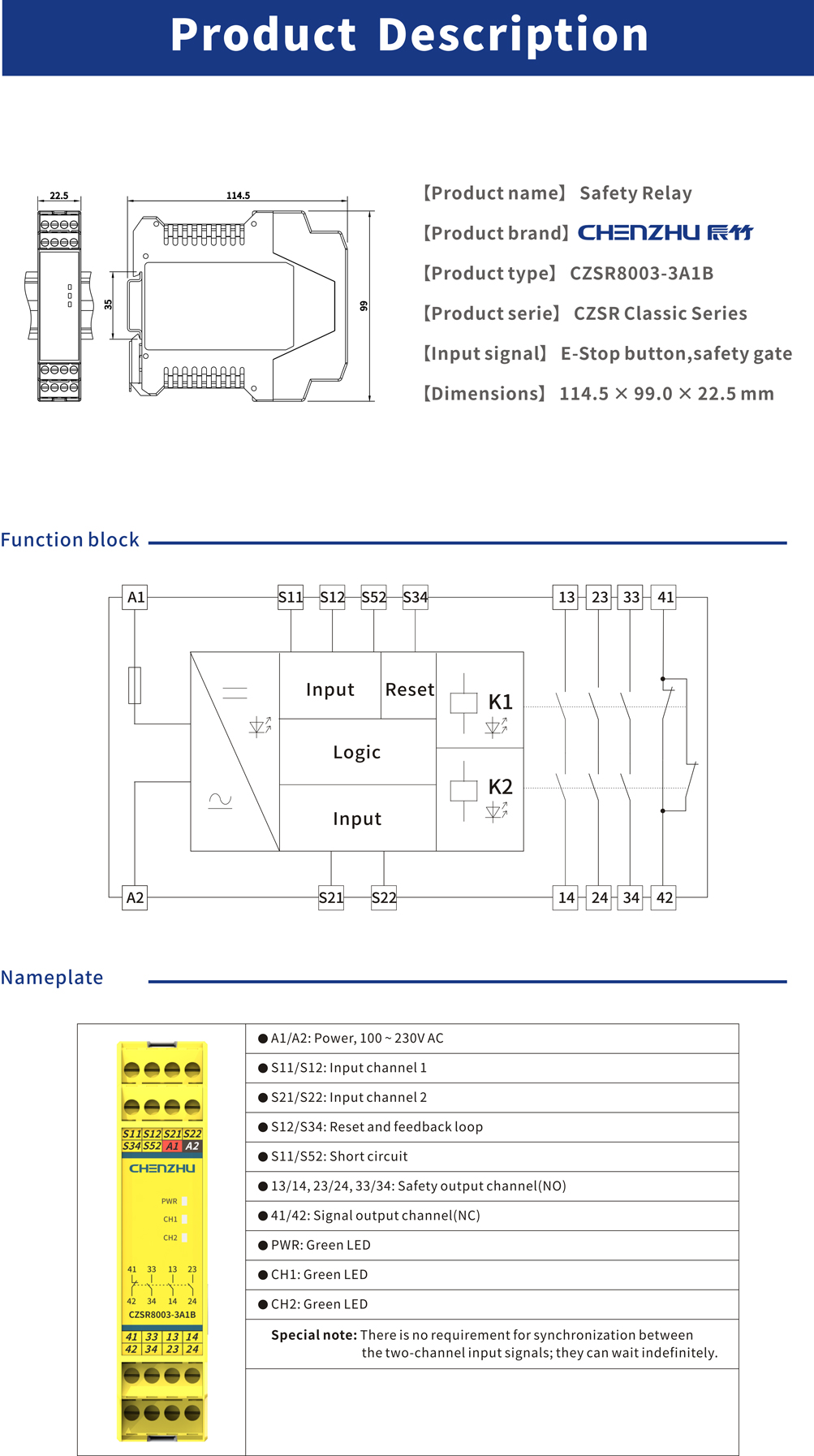

Product Name  CZSR8003-3A1B E-Stop button, safety gate input Safety Relay
Number of channels  Dual channel inputs / 4 outputs
Supply voltage(Ue)  100V~230V AC
Input signal  Switch: E-Stop button, safety gate
Output signal  Relay: 3NO+1NC
Ambient temperature  -20℃~+60℃
Certifications
 SIL3; CE; PLe; Cat.4


E-Stop button, safety gate | 230V AC | 3NO+1NC | Auto/Manual Reset

E-Stop button, safety gate | 230V AC | 3NO+1NC | Auto/Manual Reset

E-Stop button, safety gate | 230V AC | 3NO+1NC | Auto/Manual Reset


E-Stop button, safety gate | 230V AC | 3NO+1NC | Auto/Manual Reset


Product Application
General Features
Power Supply
Input
Output
Time
Operating Conditions
Insulation
Dimensions
Housing
Product Approvals
Standard / Specification
Safety-related Parameters (SIL)
Safety-related Parameters (PL)
EMC
Connection
Installation
产品参数
Product Application
Application E-Stop button, safety gate
General Features
General features E-Stop button, safety gate; 230V AC; 3NO+1NC; Auto/Manual Reset
Power Supply
Supply Voltage (Ue) 100V~230V AC
Current consumption ≤7.0VA (230V AC)
Power supply mode Independent power supply
Power connecting mode Terminal
Input
Input device E-Stop button, safety gate
Input current ≤50mA
Max. overall cable resistance ≤15Ω
Output
Output signal Relay contact
Number of contacts 4
Contact type 3NO+1NC
Contact material AgSnO₂ + 0.2μm Au
Contact fuse protection 10A gL/gG NEOZED(NO); 6A gL/gG NEOZED(NC)
Utilisation category AC-15,5A/230V; DC-13,5A/24V
Time
Switch-on delay with Auto-reset: ≤300ms; with Manual-reset: ≤150ms
Delay-on de-energisation ≤30ms
Recovery time ≤500ms
Supply interruption before de-energisation 20ms
Operating Conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Vibration Frequency: 10Hz~55Hz; Amplitude: 0.35mm
Insulation
Overvoltage category
Pollution degree 2
Rated insulation voltage 250V AC
Rated impulse withstand voltage Input~Output: 6000V (1.2/50us); Between outputs: 4000V (1.2/50us)
Insulation strength 1500V AC, 1min
Insulation resistance Input~Output: ≥100MΩ; Between Outputs: ≥100MΩ
Airgap creepage In accordance with EN 60947-1
Dimensions
Depth 114.5mm
Height 99.0mm
Width 22.5mm
Housing
Material PA
Protection type IP20
Flammability rating UL94/V0
Colour Yellow/Grey
Product Approvals
Approvals SIL (TUV); CE
Standard / Specification
Functional safety SIL3, in accordance with IEC 61508
CE MD directive; LVD directive
Safety-related Parameters (SIL)
Type of equipment Type A
Safety integrity level (SIL) SIL 3
Mode of operation (Low Demand) IEC 61508 - Low Demand
Safe failure fraction (Low Demand) (SFF) ≥99%
Proof test interval (Low Demand) (PTI) 20 years
λS (Low Demand) 7.97E-07
λDU (Low Demand) 6.06E-09
λDD (Low Demand) 6.00E-07
Average probability of dangerous failure on demand (Low Demand) (PFDavg) 2.69E-05
Diagnostic coverage (Low Demand) (DC) ≥99%
Mode of operation (High Demand) IEC 61508 - High Demand
Safe failure fraction (High Demand) (SFF) ≥99%
Proof test interval (High Demand) (PTI) 20 years
λS (High Demand) 7.97E-07
λDU (High Demand) 6.06E-09
λDD (High Demand) 6.00E-07
Average probability of dangerous failure on demand (High Demand) (PFDavg) 3.09E-10
Diagnostic coverage (High Demand) (DC) ≥99%
Safety-related Parameters (PL)
Performance level (PL) PLe
Category (Cat.) Cat.4
Stop category 0
Mission time (TM) 20 years
Diagnostic covery (DCavg) ≥99%
Mean time to repair (MTTR) 0
Mean time to dangerous failure (MTTFd) 188 years
Number of cycles until 10% of the components fail dangerously (B10d) 300000(5A)
EMC
Electromagnetic compatibility In accordance with IEC 61326-1(GB/T 18268), IEC 61326-3-1
Electrical fast transient/burst immunity In accordance with IEC 61326-3-1
Surge immunity In accordance with IEC 61326-3-1
Radiated,radio-frequency,electromagnetic field immunity In accordance with IEC 61326-3-1
Electrostatic discharge immunity In accordance with IEC 61326-3-1
Immunity to conducted disturbances, induced by radio-frequency fields In accordance with IEC 61326-3-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz In accordance with IEC 61326-3-1
Connection
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Min. conductor cross section (AWG) 24
Max. conductor cross section (AWG) 12
Stripping length 8mm
Screw thread M3
Connection method Screw terminals
Min. tightening torque 0.5Nm
Max. tightening torque 0.6Nm
Installation
Mounting type DIN35mm
