T2-40/4PF-AC Power SPD (220/380VAC; Three TN-S; In=20kA; alarm output ) 7062313-上海辰竹仪表有限公司

T2-40/4PF AC Power SPD (220/380VAC; Three TN-S; In=20kA; alarm output ) 7062313

380VAC, SPD for AC power; TN-S system,Three phase; In(8/20us): 20kA/phase, Imax: 40kA/phase; hot-pluggable; fault indication; alarm output

voltage:

220/380VAC

Power Distribution:

Three phase TN-S

Nominal discharge current ln:

20kA

Remote alarm output :

With

T2-40/4PF

Product details

Technichal Data

Download

click to consult

contrast

enquire

AC Power SPD (220/380VAC; Three TN-S; In=20kA; alarm output ) 7062313

Product Features

Protections

Dimensions

Housing

Basic Parameter

Security Data（Lightning Protection）

Product Approvals

Certification

Standards

Ambient Requirements

Connection Parameters

Mounting

Technichal Data

Generate PDF

Product Features

Features

220/380VAC; Imax=40kA; Up=1.7kV; alarm output

Protections

Protected Objects/Systems

TN-S

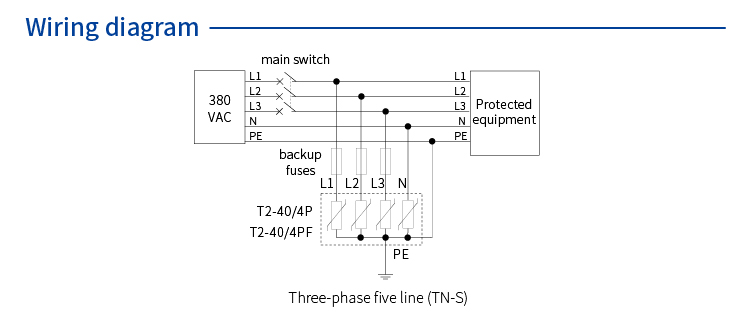

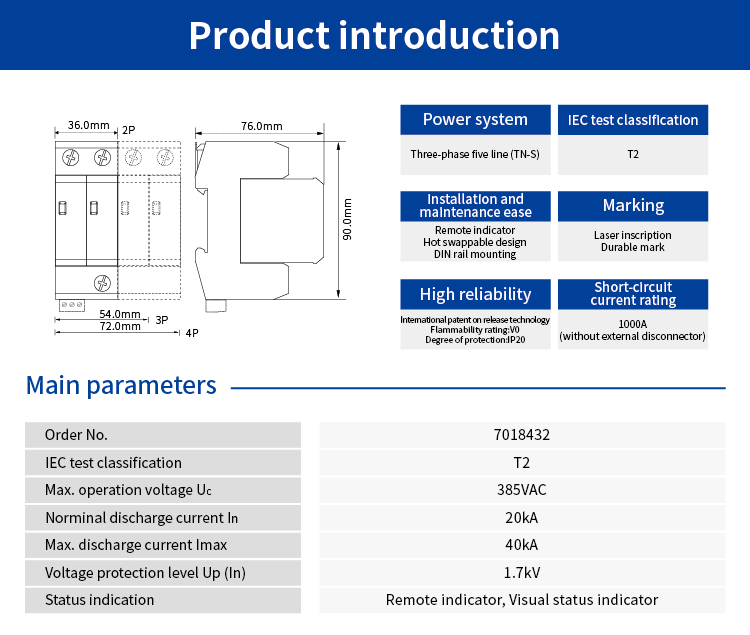

Dimensions

Depth	76.0mm
Height	90.0mm
Width	72.0mm

Housing

Brand	Dinkle
Material	PA66
Protection Level	IP20
Flame Retardant Grade	V0
Colors	灰色

Basic Parameter

Nominal operating voltage Un	220VAC
Maximun continuous operating voltage Uc	385VAC
Response Time	25ns
Number of Wires	5
Leakage Current	＜20uA

Security Data（Lightning Protection）

Nominal Discharge Current In（8/20us)	20kA
Maximum Discharge Current Imax（8/20us）	40kA
Voltage Protection Level Up（8/20us)	1.7kV

Product Approvals

Certification

Lightning Protection Certification

Certification

Lightning Protection Certification

Shanghai Lightning Protection Products Test Center

Standards

Names

GB/T 18802.1 / IEC 61643-11

Ambient Requirements

Ambient Temperature (Operation)	﹣40—70℃
Ambient Temperature (Storage)	﹣40—85℃
Permissible Humidity (Operation)	5%—95%
Applicable Location	Branch Distribution Box
Maximum Altitude	2000m

Connection Parameters

Conductor Cross Section Solid	4—35mm2
Conductor Cross Section Flexible	4—35mm2
Stripping Length	12mm
Connection Method	Terminal Connection
Maximum Tightening Torque	5Nm

Mounting

Mounting Position	Distribution Box
Mounting Method	35mm Lead Rail
Interface	Screw
