LBGS8031-EX AI,Isolated Barrier(1 channel,Loop powered)

1input/1output,AI,Isolated Barrier.Field apparatus:Application1: 2-wire intelligent transmitter(HART), 2-wire intelligent transmitter Application 2: 2-wire valve positioner, electrical converter.Input signal:4~20mA;HART.Output signal:4~20mA;HART.Approx 100g,Loop powered.

Number of channels:

1input/1output

Input signal:

4~20mA

Output signal:

4~20mA

Power Supply Mode:

Loop Power Supply

Power Connection Mode:

Terminal Power Supply

HART:

Support

Special Function:

Surge protection function

LBGS8031-EX

Product details

Technichal Data

Download

click to consult

contrast

enquire

AI,Isolated Barrier(1 channel,Loop powered)

Product Name	LBGS8031-EX Isolated Barrier
Number of channels	1input/1output
Supply voltage(Ue)	20~30V DC(Application 1)
Input signal	4~20mA;HART
Output signal	4~20mA;HART
Weight	Approx 100g

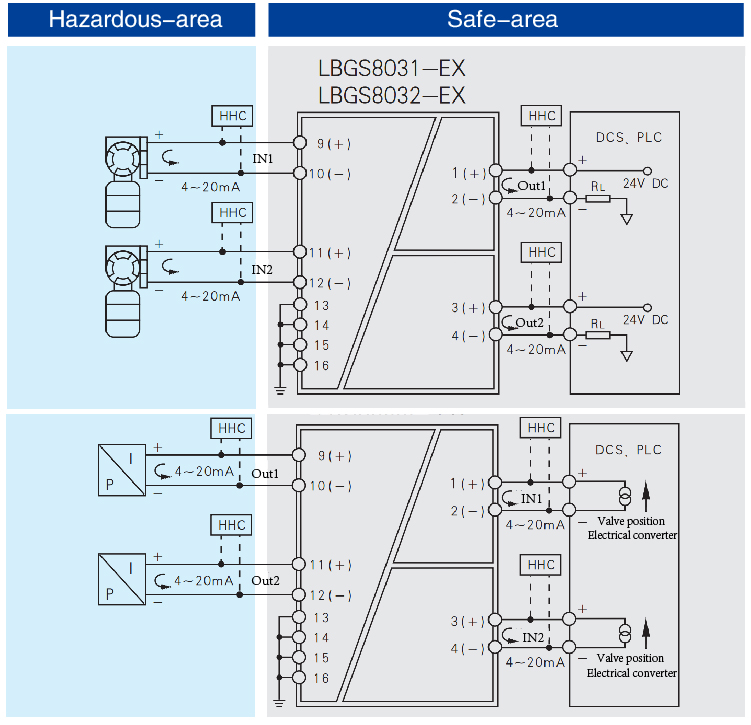

Field apparatus	Application1: 2-wire intelligent transmitter(HART), 2-wire intellige nt tran smitter Application 2: 2-wire valve positioner, electrical co nverter
