AI,Isolated Barrier(2 channels,Loop powered)
GS8532-EX  AI,Isolated Barrier(2 channels,Loop powered)
It can provide the transmitter located in the hazardous area a separate power, transfer current signal generated by transmitter from a hazardous area to a safe area; can also transfer current signal from a safe area to a hazardous area and drive equipments like actuator in field. It allows bi-directional transmission of HART communication signals.
GS8532-EX
Product details
Technichal Data
Download
click to consult
contrast
enquire

AI,Isolated Barrier(2 channels,Loop powered)

AI,Isolated Barrier(2 channels,Loop powered)


Product Name  GS8532-EX Isolated Barrier
Number of channels  2inputs/2outputs
Supply voltage(Ue)
  20~30V DC(Application 1)
Input signal  4~20mA;HART
Output signal  4~20mA;HART
Weight  Approx 150g

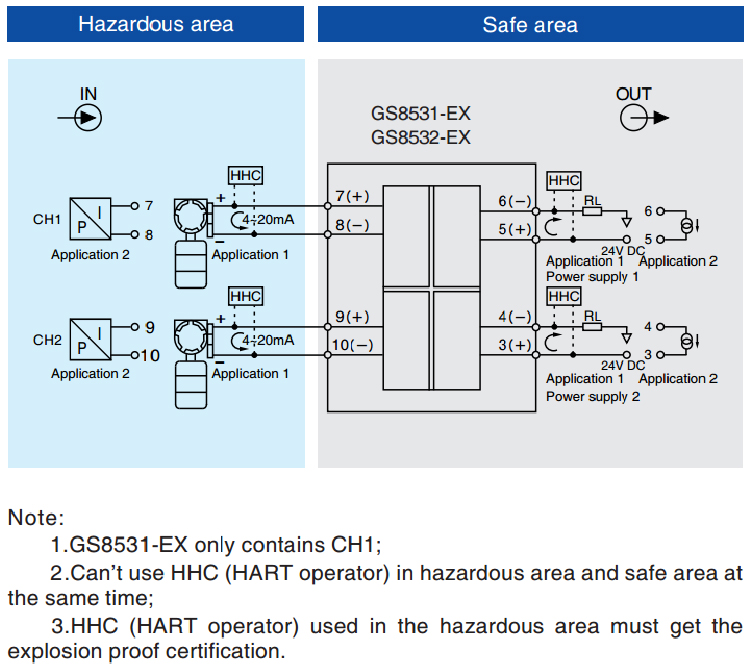

Field apparatus  Application1: 2-wire intelligent transmitter(HART), 2-wire intelligent transm  itter Application 2: 2-wire valve positioner, electrical converter

AI,Isolated Barrier(2 channels,Loop powered)

AI,Isolated Barrier(2 channels,Loop powered)


AI,Isolated Barrier(2 channels,Loop powered)

AI,Isolated Barrier(2 channels,Loop powered)


Technichal Data
"Hey, let's talk about your concerns~"
I Want To Ask Questions
Cancel
Submit
Select All
No.
Type
Name/Description
Language
Download
1
Certification
GS8532-EX,CCC证书 2020322316000237 GS8531-EX、GS8532-EX.pdf
English
2
Certification
GS8532-EX,AI Loop Powered China EX Certificate.pdf
English
3
Technical drawings
CHENZHU EPLAN GS8532-EX.edz
English
4
Manual
GS8532-EX datasheet.pdf
English
5
Manual
GS8532-EX User Manual-6.1.pdf
English
6
Certification
GS8532-EX China Ex Certificate.pdf
English
7
Certification
GS8532-EX China CCC Certificate(SITIIAS).pdf
English
