Explosion-proof lift;safety door,Isolated Barrier(1 channel)

Explosion-proof lift;safety door,Isolated Barrier(1 channel)


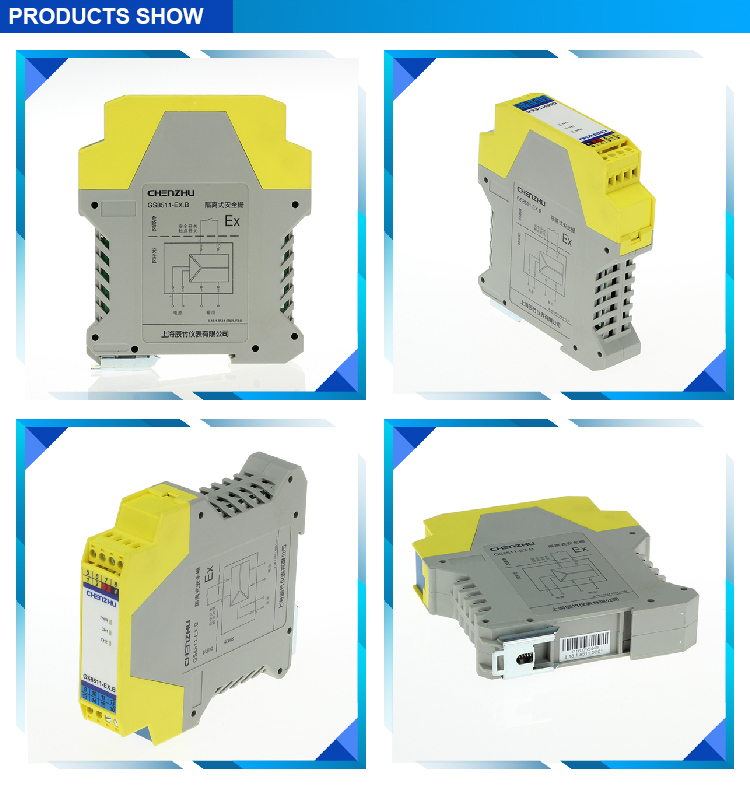

Product Name  GS8511-EX-B Isolated Barrier
Number of channels  1input/1output
Supply voltage(Ue)  15~35V DC
Ambient temperature  -20℃~+60℃
Weight  Approx 150g
EX symbol
 [Ex ia Ga]ⅡC

Explosion-proof lift;safety door,Isolated Barrier(1 channel)

Explosion-proof lift;safety door,Isolated Barrier(1 channel)

Explosion-proof lift;safety door,Isolated Barrier(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
Safety-related parameters(SIL)
Safety-related parameters(PL)
EMC data
Operating conditions
Connection data
Installation
产品参数
General
Number of channels 1input/1output
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Response time ≤150ms(switch-on delay);≤20ms(Delay on de-energisation)
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC
Weight Approx 150g
Field apparatus Safety switch;contact switch
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal Safety switch;contact switch
Distribution voltage ≈8V
Short circuit current ≈8mA
Output data
Drive capability 250V AC,2A or 30V DC,2A
Load type resistive load
Output signal Satety relay
Power supply
Supply voltage(Ue) 15~35V DC
Power protection Reverse protection of power supply
Current consumption ≤95mA(at 24V DC,output energized)
Power supply mode Independent power supply
Power connecting mode Terminal

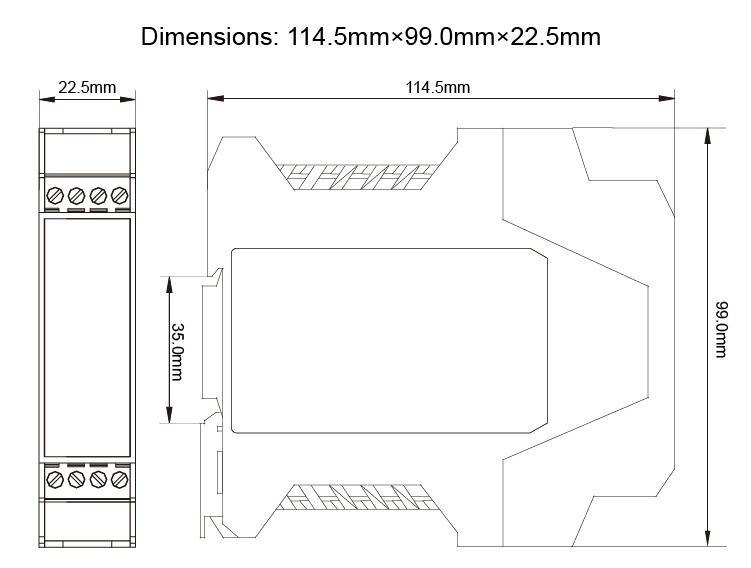

Dimensions
Depth 114.5mm
Height 99.0mm
Width 22.5mm
Housing
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
Product approvals
Approvals NEPSI;SIL(TUV);ETC
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20
Functional safety SIL3 Comply with standard: IEC 61508
Special equipment test Comply with standard:GB 7588、EN 81-1
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 10.5V(9,10)
Max.output current Io 14mA(9,10)
Max.output power Po 37mW(9,10)
IIC Max. external inductance Lo 165mH(9,10)
IIC Max. external capacitance Co 2.4μF(9,10)
IIB Max. external inductance Lo 495mH(9,10)
IIB Max. external capacitance Co 16.8μF(9,10)
IIA Max. external inductance Lo 1000mH(9,10)
IIA Max. external capacitance Co 75.0μF(9,10)
Safety-related parameters(SIL)
Type of equipment Type A
Safety integrity level(SIL) 3
Mode of operation (Low demand) IEC 61508-Low demand
Safe failure fraction(Low demand) (SFF) ≥99%
Proof test interval(Low demand) (PTI) 20 years
λS(Low demand) 5.87E-07
λDU(Low demand) 4E-09
λDD(Low demand) 3.96E-07
Average probability of dangerous failure on demand(Low demand) (PFDAVG) 1.77E-05
Diagnostic coverage(Low demand) (DC) ≥99%
Mode of operation (High demand) IEC 61508-High demand
Safe failure fraction(High demand) (SFF) ≥99%
Proof test interval(High demand) (PTI) 20 years
λS(High demand) 5.87E-07
λDU(High demand) 4E-09
λDD(High demand) 3.96E-07
Average frequency of a dangerous failure per hour(High demand) (PFH) 2.03E-10
Diagnostic coverage(High demand) (DC) ≥99%
Safety-related parameters(PL)
Stop category 0
Mission time (TM) 20 years
Diagnostic covery (Dcavg) ≥99%
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-3-1
Surge immunity According to:IEC 61326-3-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-3-1
Electrostatic discharge immunity According to:IEC 61326-3-1
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-3-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using

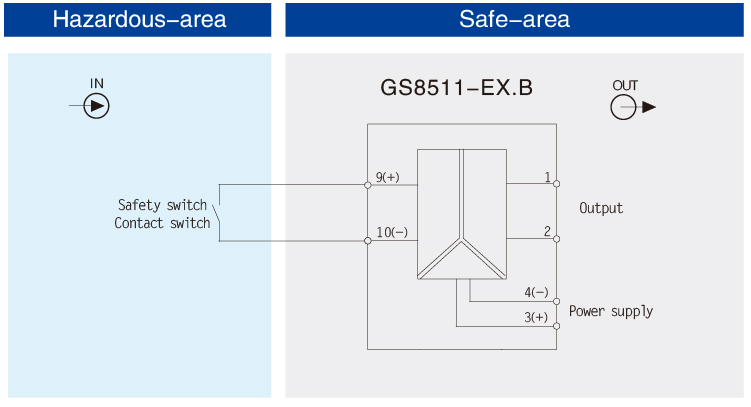

Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
