24V
6.25A

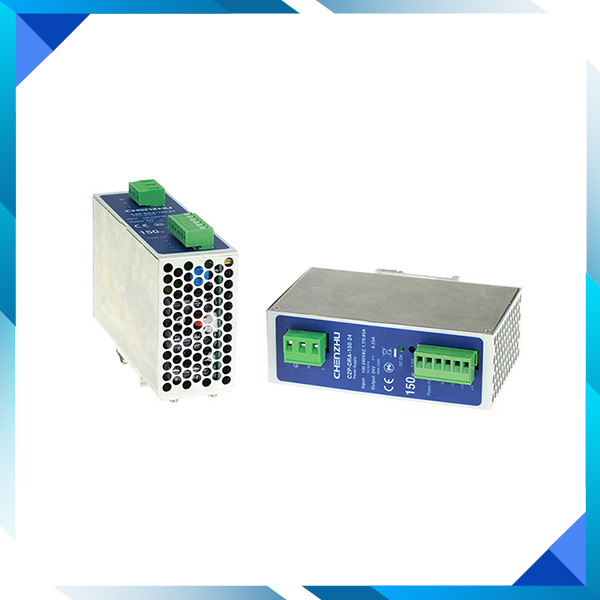

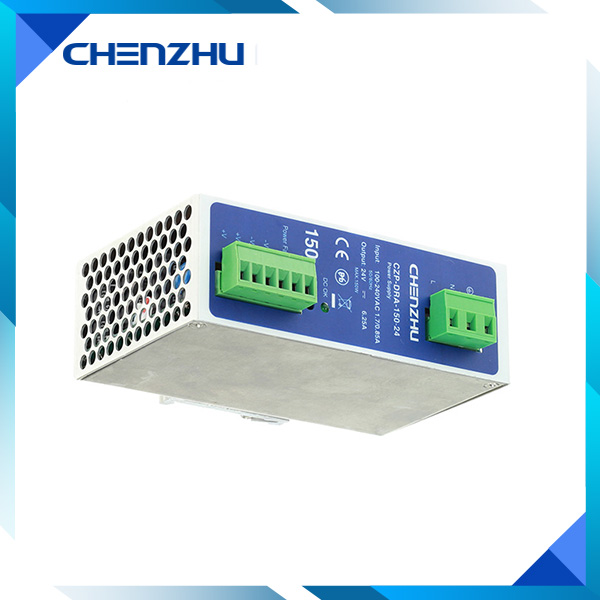

| Product Name | CZP-DRA-150-24 Power Supply |
| Adjustment Output Voltage Range | 24~28VDC |
| max. Load Current | 6.3A |
| Power Factor | 0.99/0.95 |
| Adjustment Input Voltage Range | 85~264V AC or 120~370V DC |
| Max. Output Power | 150W |
| Max. Output Power | 150W |
| Nominal Output Voltage | 24V |
| Adjustment Output Voltage Range | 24~28VDC |
| max. Load Current | 6.3A |
| min. Current | 0.1A |
| Eficiency | 0.92 |
| Ripple/Noise | 180 mVpp,max |
| Line Regulation | 0.01 |
| Load Regulation | 0.01 |
| Hold-up time | 20 ms @ full load, 230 VAC |
| Nominal Input Voltage | 100~240V AC |
| Adjustment Input Voltage Range | 85~264V AC or 120~370V DC |
| Frequency | 47~63Hz |
| Power Factor | 0.99/0.95 |
| Input Current | 1.7/0.85A |
| Leakage Current | 0.5/1.1 mA (ACIN 100V/240V 60Hz lo=100%) |
| Inrush Current | ACIN100V:20A (lo=100% Cold-Start); ACIN200V:40A (lo=100% Cold-Start) |
| Overvoltage Protection | 35V |
| Overload Protection | Yes |
| Overcurrent Protection | Automatic Restart by more than 110% of rated power |
| Overtemperature Protection | Yes |
| Short Circuit Protection | Yes |

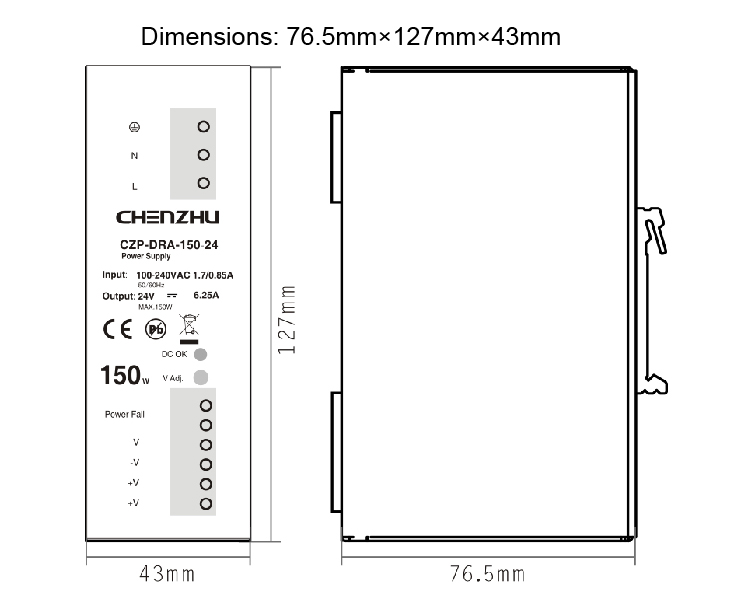

| Depth | 76.5mm |
| Height | 127 |
| Width | 43 |
| Material | Aluminium |
| Degree of protection | IP20 |
| Weight | 0.5Kg |

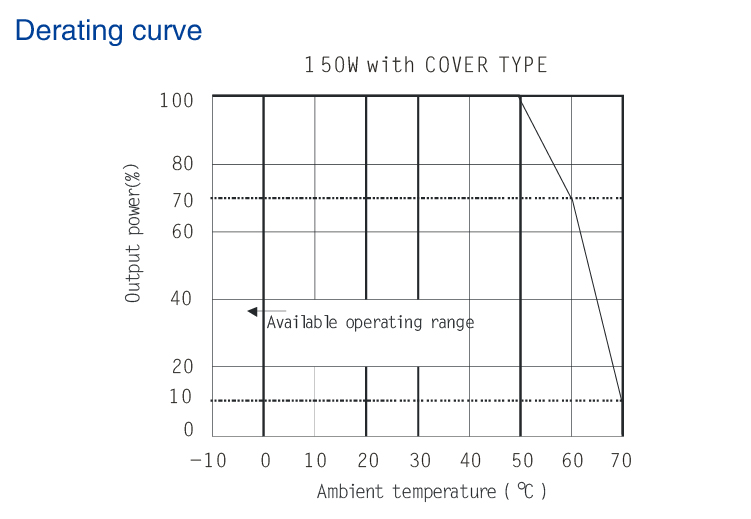

| Ambient Temperature | -10°~70°C |
| Storage Temperature | -25° ~ 85°C |
| Relative Humidity | 5%~95% |
| max. Altitude | 3000 M |
| Cooling | Natural |

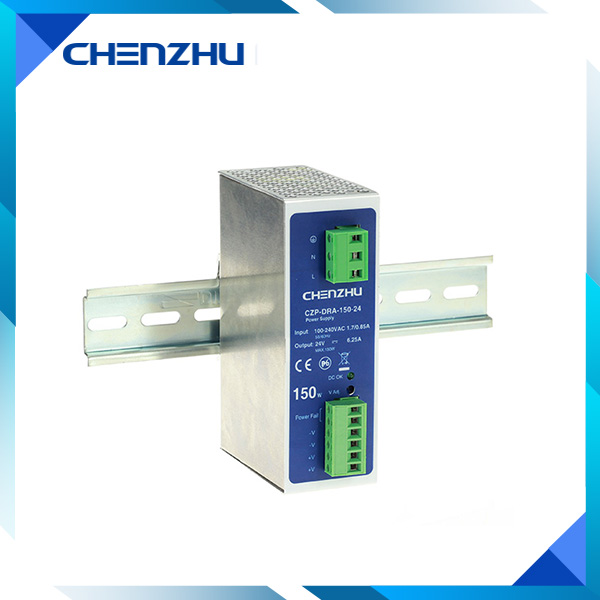

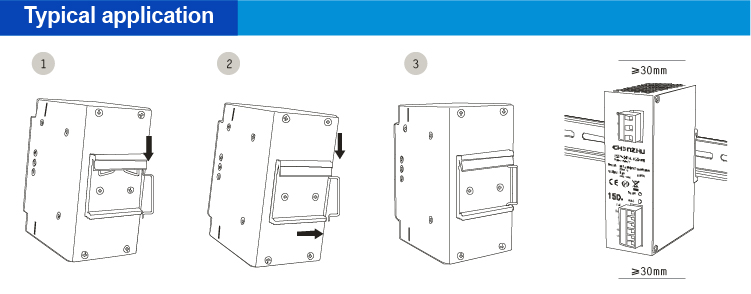

| Mounting Type | DIN-rail mounting to TS35/7.5or TS35/15. |
| Fitting Position | Vertical |
| Wiring Data | 0.15-2.5 mm² 300VAC |
| MTBF demonstrated | >350,000 hours at full load at 25°C ambient conditions |
| Withstand Voltage | I/P-O/P: AC 3KV; I/P-FG: AC 2KV; O/P-FG: DC 0.5KV |
| EMC | compliance with EMC directive 2004 /108/EC |
| Harmonic Current Limits | compliance with EN61000-3-2, EN61000-3-3 |
