Introduction of CHENZHU Laboratory
Tags:Laboratory Introduction of CHENZHU Laboratory 2020-07-16 Introduction of CHENZHU Laboratory 303

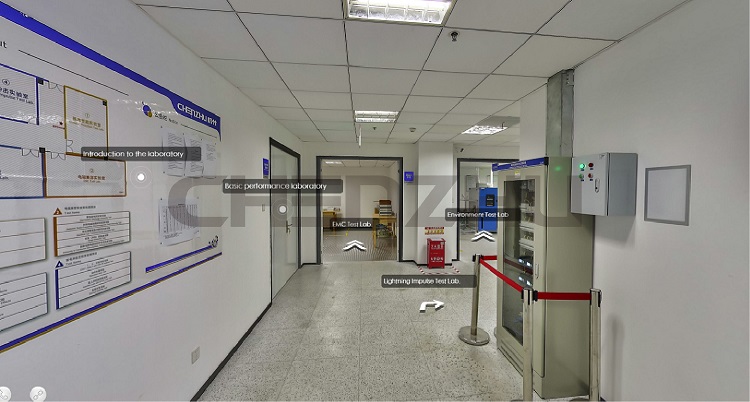

CHENZHU laboratory was authorized by TUV Rheinland group base on ISO/IEC 17025 to better support R&D, which test capabilities reached to 70+ items.

Introduction of CHENZHU Laboratory

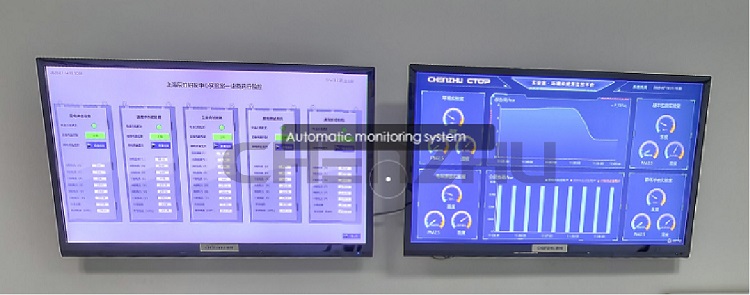

Automatic Monitoring System

Introduction of CHENZHU Laboratory

This system is developed by ourselves, the left screen shows the power on status of seven high-power equipment, and can control the power on and off of the electricity meter through the operating system, so as to control the power on and off of the equipment, avoid the risk brought by the direct operation of the electric meter, and can monitor the power consumption in real time, so as to strengthen the safety of power consumption; the right screen displays four main laboratories in real time In order to better control the experimental environment conditions.

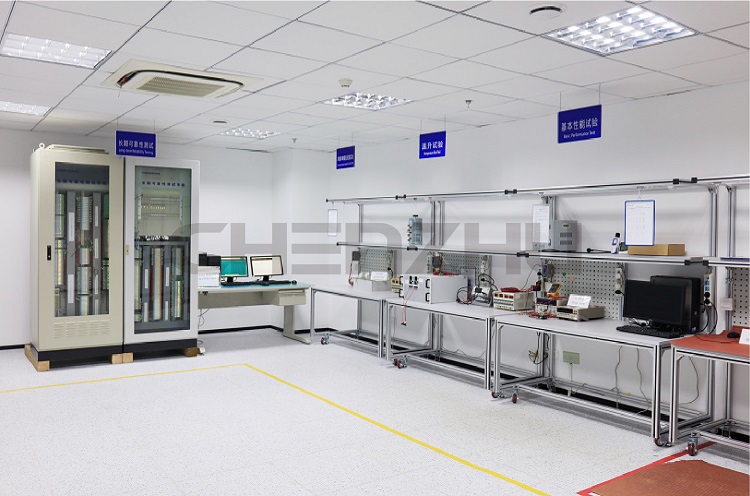

Basic Performance Lab.

Introduction of CHENZHU Laboratory

The basic performance laboratory mainly tests the basic functions of the instrument, such as accuracy, power consumption, electrical performance and so on. In addition to the equipment used for basic performance, the laboratory also includes a DCS simulation system to conduct long-term reliability tests on our products. Some products in the cabinet have been stored for more than ten years.

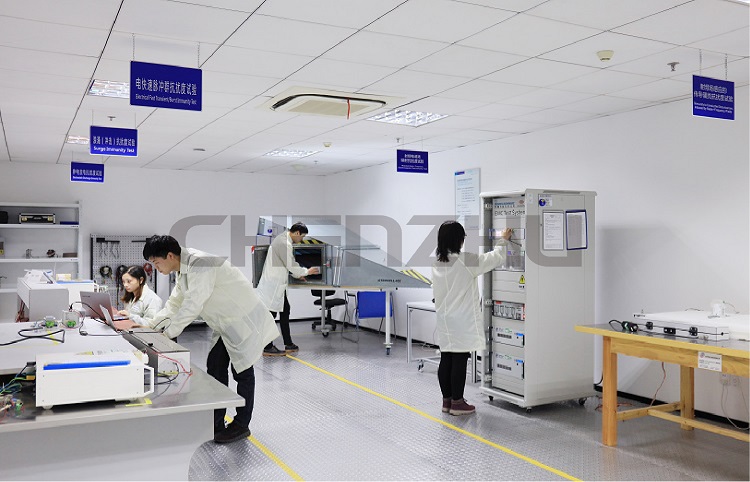

EMC Lab.

Introduction of CHENZHU Laboratory

At present, EMC laboratory mainly verifies the EMC immunity of products, that is, the ability of products to work normally under electromagnetic interference environment. It mainly includes five tests: Electrical fast pulse group immunity test (EFT), surge (impact) immunity test, electrostatic discharge immunity test (ESD), radio frequency electromagnetic field radiation immunity test (RS), and radio frequency field inductance Shall be conducted disturbance immunity test (CS).

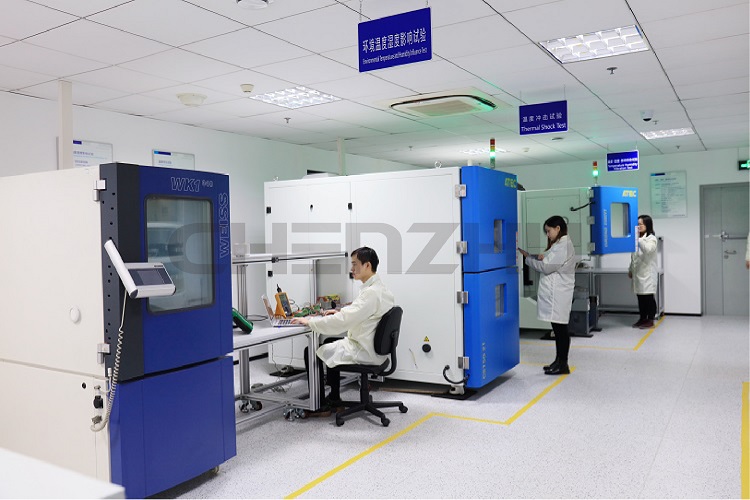

Environmental Lab.

Introduction of CHENZHU Laboratory

The environmental lab. includes three temperature chambers (including one temperature and humidity test chamber, one temperature impact test chamber and one three comprehensive test chamber) and two blast drying chambers. It mainly conducts environmental tests on products such as constant temperature and humidity, alternating humidity and heat, temperature shock and vibration, to verify the performance of products under various harsh working and storage environment conditions.



Temperature shock box demonstration

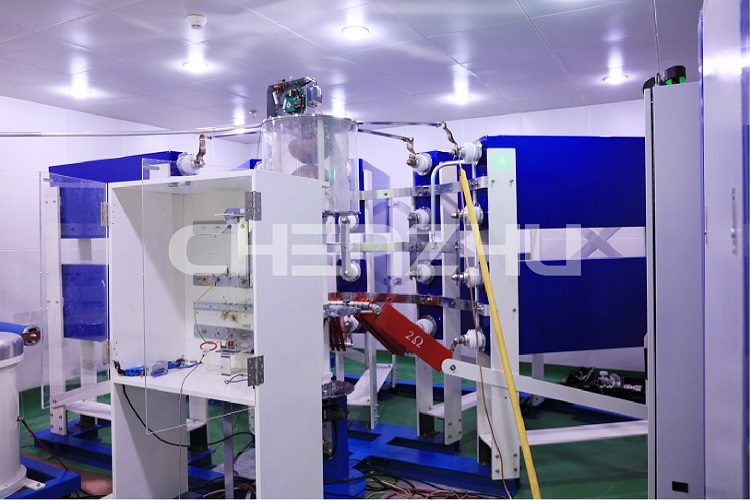

Lightning impulse current equipment

Introduction of CHENZHU Laboratory

Lightning impulse current equipment can generate 10/350 μ s and 8/20 μ s lightning current waveforms, and its maximum discharge current can reach 200 kA, which can verify whether the product can resist the impact of lightning and other large current. The discharge equipment is operated in the shielding room through the outdoor operating system. The indoor monitoring camera is installed, and the outdoor operating system can monitor the indoor situation at any time.
