Bus connector plug for GS8200-EX series isolated barries
CZBPS-F2  Bus connector plug for GS8200-EX series isolated barries
Suitable for GS8200-EX series products with DIN Rail BUS Power function, including 1.Bus connector; 2. Bus connector plug; 3. Bus connector reverse plug; This is the bus connector plug for GS8200-EX series isolated barries.
Form:
Bus connector
CZBPS-F2
产品详情
产品参数
click to consult
加入对比
加入询价单

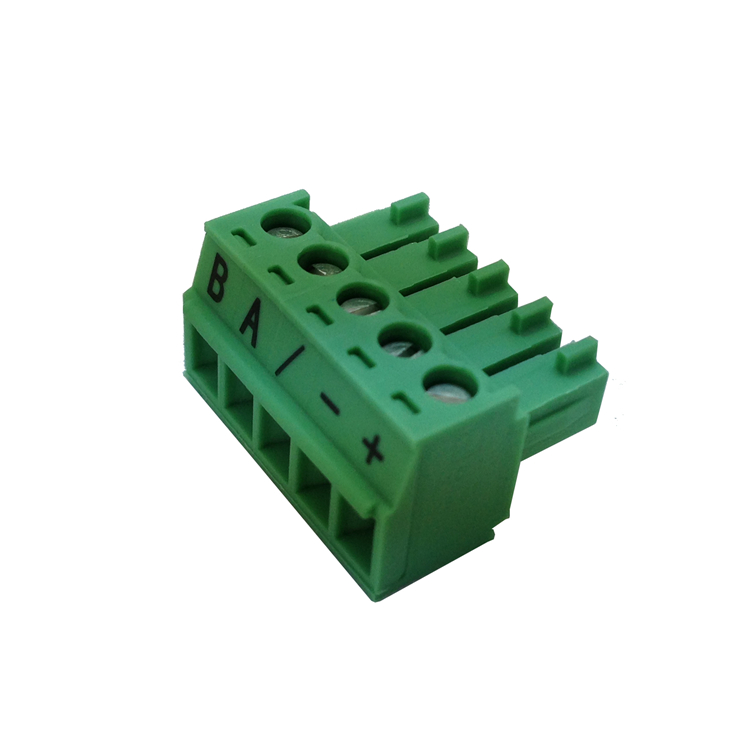

Bus connector plug for GS8200-EX series isolated barries


DIN Rail Bus Power fuction accessories including:



  • Bus connector

  • Bus connector plug

  • Bus connector reverse plug


This is the bus connector plug for GS8200-EX series isolated barries.


NOTES:

1. Each isolated barriesr is used with one bus connector in a set. Connectors can be combined in a group, 8 connectors combined in a group is recommended, and 16 is at most;

 2. A bus connector plug and a bus connector reverse plug should be assembled for one group;

3. The Wire used for bus power supply module, whose length of ferrules or bared wired is about 8mm and should be locked by M2 bolts;

4. There is an error prevention function against incorrect positioning of the device,. Pay attention to the direction of error prevention slot during the installation.


Technical data


Bit

5

Spacing

3.81mm

Rated voltage

160V

Max. load current

8A

Rated surge voltage

2500V

Wire size 0.14~1.5mm2
Ferrules size 0.25~1.5mm(without insulating bush)
0.25~0.5mm(with insulating bush)
