Bus connector for 17.5 mm width product

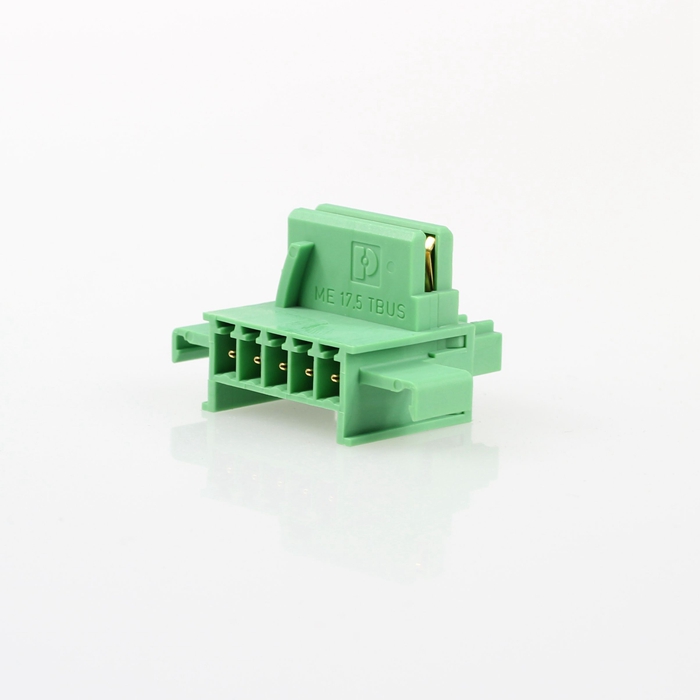

CZBPS-C-17.5  Bus connector for 17.5 mm width product
Suitable for 17.5 mm width product products with DIN Rail BUS Power function; Accessories including 1.Bus connector; 2. Bus connector plug; 3. Bus connector reverse plug This is the bus connector for 17.5 mm width product, such as GS8500-EX/GS82000EX series isolated barries.
CZBPS-C-17.5
Product details
Technichal Data
contrast
enquire

Bus connector for 17.5 mm width product

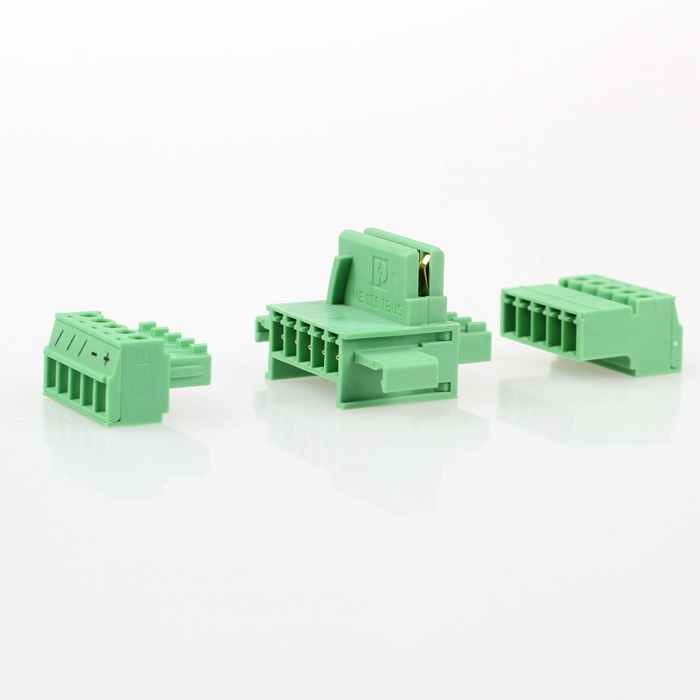

DIN Rail Bus Power fuction accessories including:



  • Bus connector

  • Bus connector plug

  • Bus connector reverse plug


This is the bus connector for 17.5mm width product of GS8500-EX/GS8200-EX series isolated barries.


NOTES:

1. Each isolated barriesr is used with one bus connector in a set. Connectors can be combined in a group, 8 connectors combined in a group is recommended, and 16 is at most;

 2. A bus connector plug and a bus connector reverse plug should be assembled for one group;

3. The Wire used for bus power supply module, whose length of ferrules or bared wired is about 8mm and should be locked by M2 bolts;

4. There is an error prevention function against incorrect positioning of the device,. Pay attention to the direction of error prevention slot during the installation.


Technical data


Bit

5

Spacing

3.81mm

Rated voltage

150V

Max. load current

8A

Rated surge voltage

2500V


Connection data
Generate PDF
Technichal Data
Connection data
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
