AC current input,power Transmitter(2 channel)

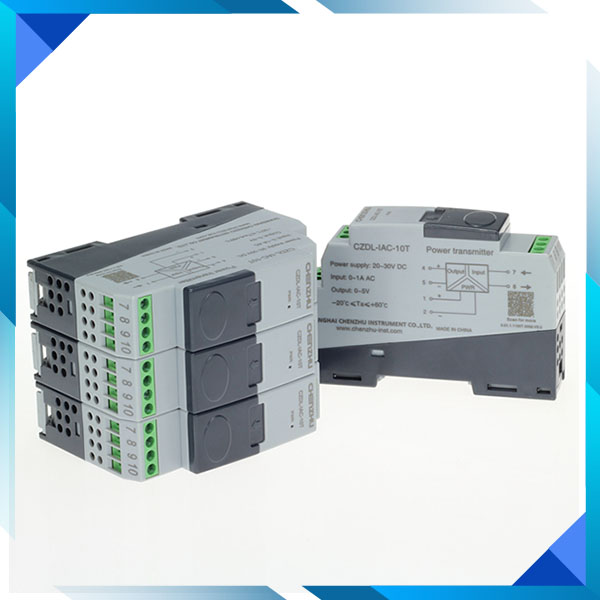

CZDL-IAC-10LD  AC current input,power Transmitter(2 channel)

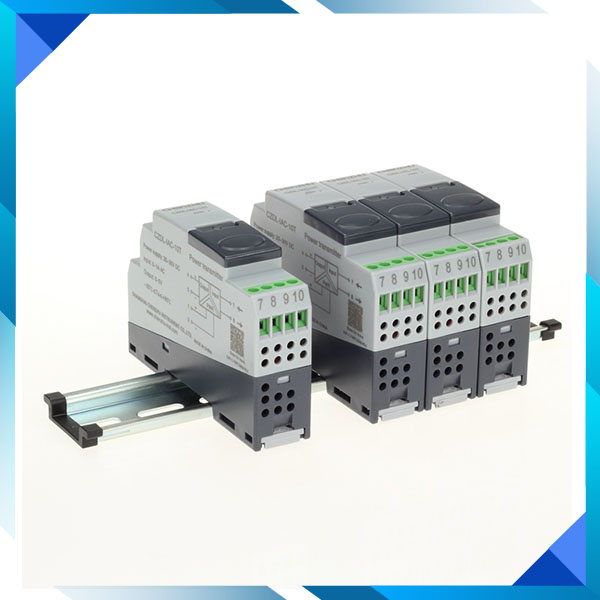

Compact shell structure,DIN35mm rail mounting,Variety current, voltage output selectable.
Number of channels:
2inputs/2outputs
Input signal:
0~10AAC
Output signal:
0~20mA(Without energy)
4-20mA(Without energy)
Power Supply Mode:
Loop Power Supply
contrast
enquire
Generate PDF
CZDL-IAC-10LD
Product details
Download
General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation

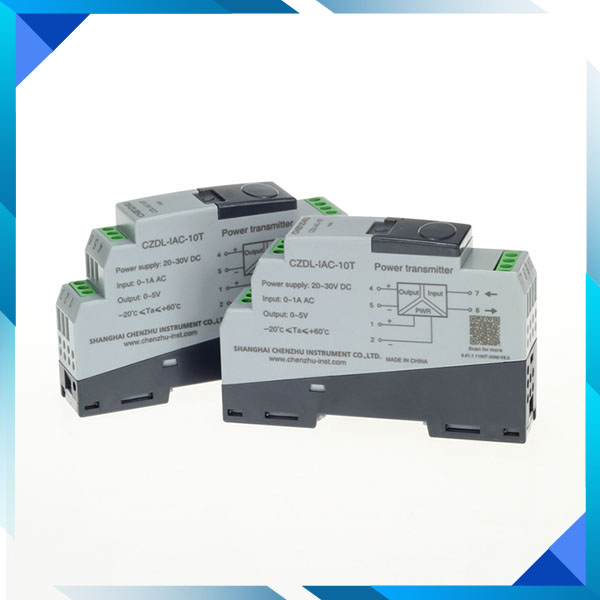

AC current input,power Transmitter(2 channel)

AC current input,power Transmitter(2 channel)



Product Name CZDL-IAC-10LD Transmitter
Number of channels 2
Supply voltage(Ue) 12~30V DC(Ui)
Input signal AC Current
Output current current
Weight Approx 75g


AC current input,power Transmitter(2 channel)

AC current input,power Transmitter(2 channel)

AC current input,power Transmitter(2 channel)


Technichal Data
General
Number of channels 2
Dielectric strength input~output、power supply 4000V AC,50Hz,1min power supply~output 1500V AC,50Hz,1min
Output accuracy(20°C) 0.5% F.S.
Temperature drift 0.02% F.S./℃
Response time Reach 90% of final value in 330ms
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 75g
Input data
Input signal AC Current
Input impedance <5mΩ
Input current 0~1A AC;0~5A AC;0~10A AC
Max.input current 1.2×In(continues);2×In(1minute)
Input frequency range 40Hz~400Hz(sine)
Output data
Output signal current
Output current 0~20mA;4~20mA
Max.output current 30mA
Current output load resistance (Ui-12)/0.02
Power supply
Supply voltage(Ue) 12~30V DC(Ui)
Power connecting mode Terminal

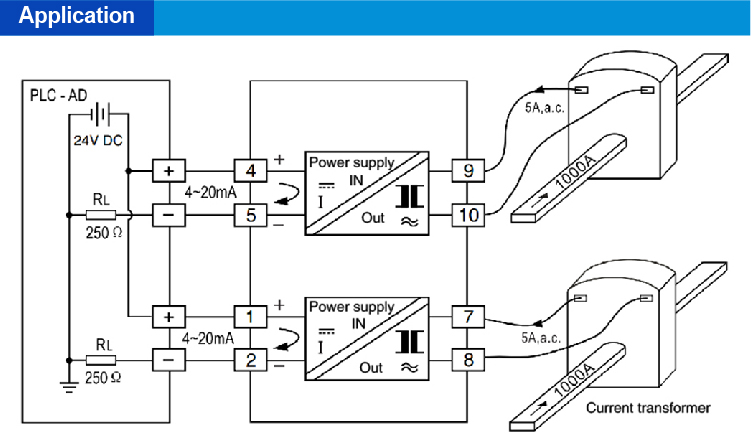

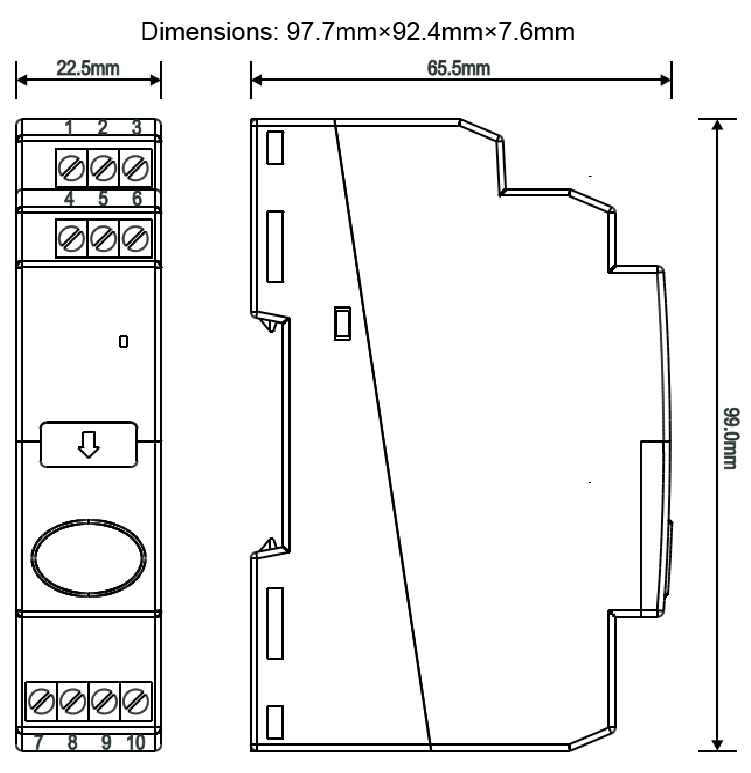

Dimensions
Depth 65.5mm
Height 99.0mm
Width 22.5mm
Housing
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1
Surge immunity According to:IEC 61326-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
