SPD for Signal (24V; 4 wires; In=10kA ) 7058070
T-24-L4  SPD for Signal (24V; 4 wires; In=10kA ) 7058070
SPD for 24V signal; 4 wires; C2: 20kV/10kA, D1: 2.5kA/line; hot-pluggable; grounded through DIN rail
Voltage:
24V
wire:
4
Nominal discharge current ln:
10kA
EX:
-
contrast
enquire
Generate PDF
T-24-L4
Product details
Download
Technichal Data
Product Features
Protections
Dimensions
Housing
Basic Parameter
Security Data(Lightning Protection)
Safety Characteristic Parameter(SIL)
Product Approvals
Certification
Standards
Ambient Requirements
Connection Parameters
Mounting

SPD for Signal (24V; 4 wires; In=10kA ) 7058070

SPD for Signal (24V; 4 wires; In=10kA ) 7058070


Product Name  T-24-L4 Surge protective device
Nominal operating voltage Un  24VDC
Maximun continuous operating voltage Uc  32VDC
Nominal Discharge Current In(8/20us)  10kA
Certification  TUV SIL3
Protected Objects/Systems  AI;AO;DI;DO


SPD for Signal (24V; 4 wires; In=10kA ) 7058070SPD for Signal (24V; 4 wires; In=10kA ) 7058070


SPD for Signal (24V; 4 wires; In=10kA ) 7058070

SPD for Signal (24V; 4 wires; In=10kA ) 7058070

SPD for Signal (24V; 4 wires; In=10kA ) 7058070


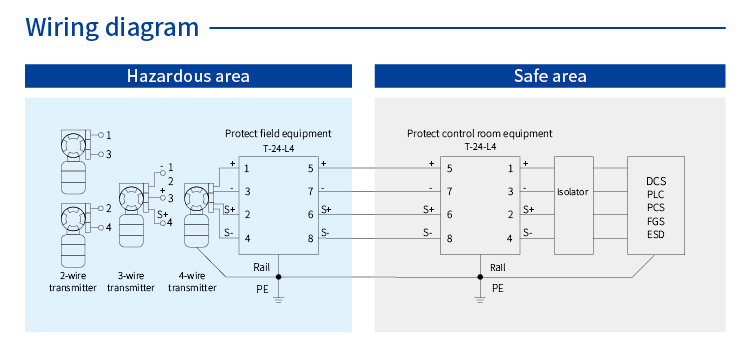

Technichal Data
Product Features
Features 24V, 20kA; Hot Pluggable; 4 wires
Protections
Protected Objects/Systems AI; AO; DI; DO(Double Channel)

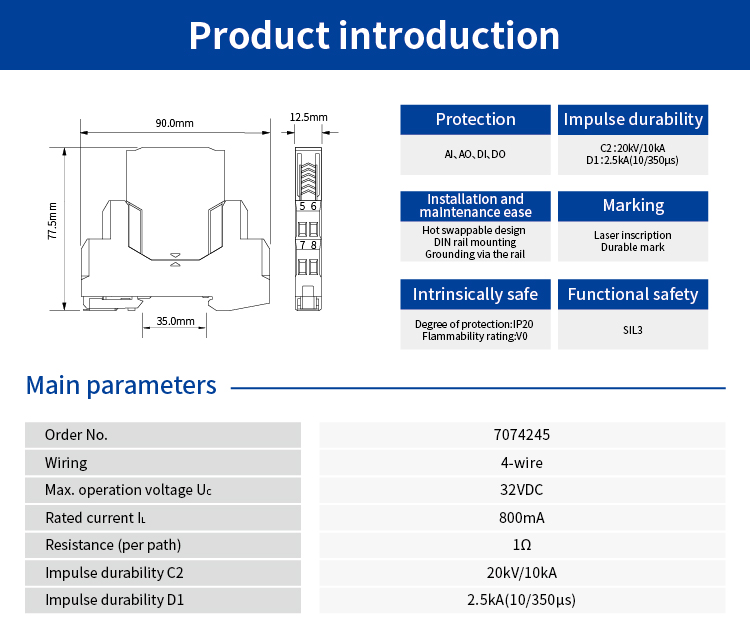

Dimensions
Depth 75.0mm
Height 90.0mm
Width 12.5mm
Housing
Brand Dinkle
Material PA66
Protection Level IP20
Flame Retardant Grade V0
Colors Gray
Basic Parameter
Nominal operating voltage Un 24VDC
Maximun continuous operating voltage Uc 32VDC
Nominal Operating Current IL 800mA
Resistance per Wire 1ohm
Response Time 1ns
Number of Wires 4
Bandwidth 10MHz(-0.5dB)
Leakage Current <1uA
Security Data(Lightning Protection)
Nominal Discharge Current In(8/20us) 10kA
Maximum Discharge Current Imax(8/20us) 20kA
Total Discharge Current Itotal 40kA
Impulse Current Iimp(10/350us) 2.5kA
Total Impulse Current(10/350us) 10kA
Voltage Protection Level Up(8/20us) 60V(Line to Line)/600V(Line to Ground)
Voltage Protection Level Up(1kV/us) 40V(Line to Line)/600V(Line to Ground)
Safety Characteristic Parameter(SIL)
λSU 15.92
λSD 0
λDU 4.04
λDD 25.36
λtotal 45.32
Safe Failure Fraction(SFF) 0.9109
Safety Integrity Level(SIL) SIL3
Product Approvals
Certification Lightning Protection Certification;Functional Safety Certification
Certification
Explosion-Proof Certification N/A
Lightning Protection Certification Shanghai Lightning Protection Products Test Center
Functional Safety SIL3
Standards
Names GB/T 18802.21 / IEC 61643-21; IEC 61508
Ambient Requirements
Ambient Temperature (Operation) ﹣40—70℃
Ambient Temperature (Storage) ﹣40—85℃
Permissible Humidity (Operation) 5%—95%
Applicable Location Cabinet
Maximum Altitude 2000m
Connection Parameters
Conductor Cross Section Solid 0.2—4mm2
Conductor Cross Section Flexible 0.2—2.5mm2
Stripping Length 8mm
Connection Method Terminal Connection
Maximum Tightening Torque 0.5Nm
Mounting
Mounting Position Cabinet
Mounting Method 35mm Lead Rail
Interface Screw
