>> Product >> Surge Protective Device >> T Series >> Product details
5V
2
10kA
Intrinsic safety
| Product Name | T-5-EX-L Surge protective device |
| Nominal operating voltage Un |
5VDC |
| Maximun continuous operating voltage Uc |
6VDC |
Nominal Discharge Current In(8/20us) |
10kA |
| Certification |
TUV SIL3 |
| Protected Objects/Systems |
Thermocouple;RS-485;CAN |
T-5-EX-L，防爆合格证，国家防爆电气产品质量监督检验中
T-5-EX-L，防爆合格证（英文），国家防爆电气产品质量监督检验中
T-5-EX-L，SIL_，SITIIAS
T-5-EX-L，SIL_SITIIAS
T-5-EX-L，型式试验报告，上海市防雷产品质量监督检验站
T-5-EX-L，实用新型专利证书（一种浪涌保护器）
T-5-EX-L，实用新型专利证书（一种浪涌保护器的机座）
T-5-EX-L，实用新型专利证书（一种浪涌保护器的机座结构）
T-5-EX-L，外观设计专利证书（浪涌保护器）
Technichal Data
| Features | 5V; 20kA; Intrinsically Safe; Hot plug; Two Wire |
| Protected Objects/Systems | Thermocouple; RS-485; CAN |

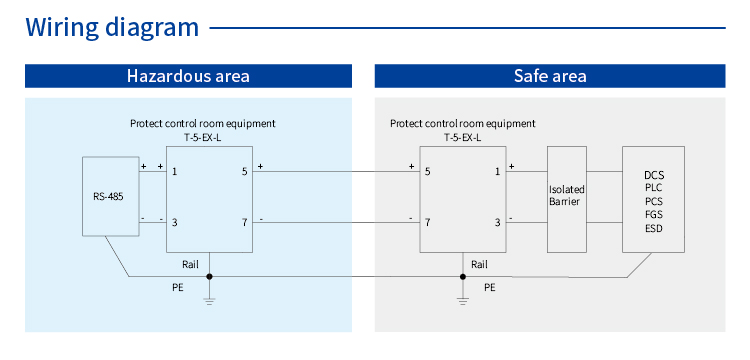

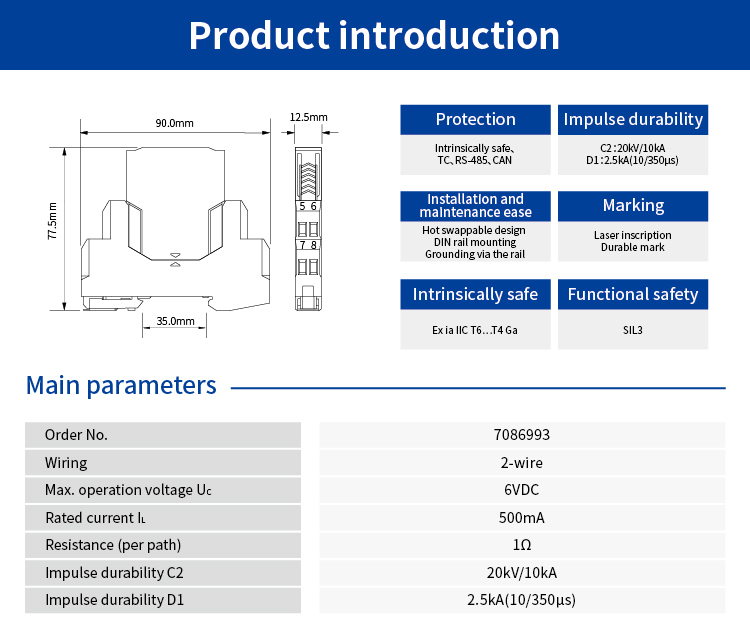

| Depth | 75.00mm |
| Height | 90.0mm |
| Width | 12.5mm |
| Brand | Dinkle |
| Material | PA66 |
| Protection Level | IP20 |
| Flame Retardant Grade | V0 |
| Colors | Blue |
| Nominal operating voltage Un | 5VDC |
| Maximun continuous operating voltage Uc | 6VDC |
| Nominal Operating Current IL | 500mA |
| Resistance per Wire | 1ohm |
| Response Time | 1ns |
| Number of Wires | 2 |
| Bandwidth | 10MHz（-0.5dB) |
| Leakage Current | ＜10uA |
| Nominal Discharge Current In（8/20us) | 10kA |
| Maximum Discharge Current Imax（8/20us） | 20kA |
| Impulse Current Iimp（10/350us) | 2.5kA |
| Voltage Protection Level Up（8/20us) | 40V（Line to Line）/600V（Line to Ground） |
| Voltage Protection Level Up（1kV/us） | 20V（Line to Line）/600V（Line to Ground） |
| Maximum Input Voltage Ui | 6V |
| Maximum Input Current Ii | 500mA |
| Maximum Input Power Pi | 0.75W |
| Maximum Internal Capacitance Ci | 0uF |
| Maximum Internal Inductance Li | 0mH |
| λSU | 11.26 |
| λSD | 0 |
| λDU | 2.02 |
| λDD | 19.38 |
| λtotal | 32.66 |
| Safe Failure Fraction（SFF） | 90.56% |
| Safety Integrity Level（SIL） | SIL3 |
| Certification | Explosion-Proof Certification;Lightning Protection Certification;Functional Safety Certification |
| Explosion-Proof Certification | Ex ia ⅡC T4～T6 Ga |
| Lightning Protection Certification | Shanghai Lightning Protection Products Test Center |
| Functional Safety | SIL3 |
| Names | GB/T 18802.21 / IEC 61643-21; GB 3836.1 / IEC 60079-0; GB 3836.4 / IEC 60079-11; IEC 61508 |
| Ambient Temperature (Operation) | ﹣40—70℃ |
| Ambient Temperature (Storage) | ﹣40—85℃ |
| Permissible Humidity (Operation) | 5%—95% |
| Applicable Location | Cabinet、Explosion-Proof Tank |
| Maximum Altitude | 2000m |
| Conductor Cross Section Solid | 0.2—4mm2 |
| Conductor Cross Section Flexible | 0.2—2.5mm2 |
| Stripping Length | 8mm |
| Connection Method | Terminal Connection |
| Maximum Tightening Torque | 0.5Nm |
| Mounting Position | Cabinet |
| Mounting Method | 35mm Lead Rail |
| Interface | Screw |
