AO,Isolated Barrier(4 channels)
CZ3064D  AO,Isolated Barrier(4 channels)
Four channels of analog output without independent power supply, small power consumption, low power consumption 0.1 W.

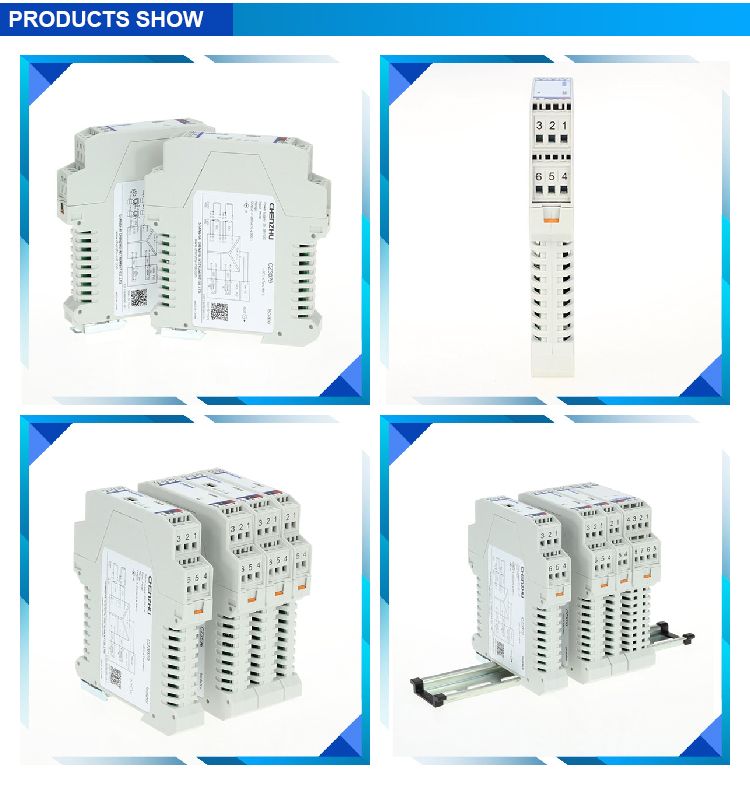

CZ3064D
Product details
Technichal Data
Download
contrast
enquire

AO,Isolated Barrier(4 channels)

AO,Isolated Barrier(4 channels)


Product Name   CZ3064D   Isolator
Number of channels  4inputs/4outputs
Supply voltage(Ue)  20~35V DC
Input signal  4~20mA;HART
Output signal  Current
Temperature drift  0.01%F.S./℃

AO,Isolated Barrier(4 channels)

AO,Isolated Barrier(4 channels)

AO,Isolated Barrier(4 channels)


General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Data communication
Operating conditions
Connection data
Installation
Notes
Generate PDF
Technichal Data
General
Number of channels 4inputs/4outputs
Dielectric strength 1500V AC;1minute(between input and output )
Output accuracy(20°C) 0.2%F.S.
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 0.5ms
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 150g

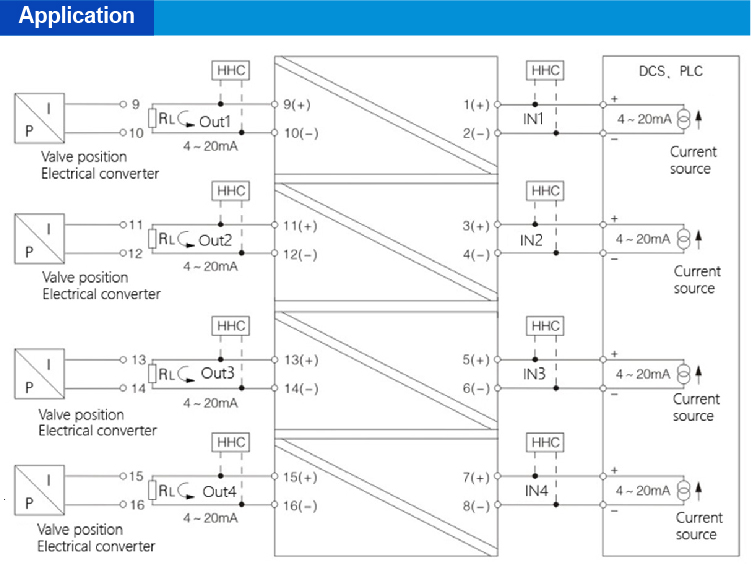

Field apparatus 2-wire Valve Positioner(HART),Electric Converter
Input data
Input signal 4~20mA;HART
Output data
Output signal Current
Output current 4~20mA;HART
Current output load resistance RL≥250Ω (HART)
Load ability RL≤(Ui-6)/0.02
Power supply
Power protection Reverse protection of power supply
Power supply mode Loop powered
Power connecting mode Terminal

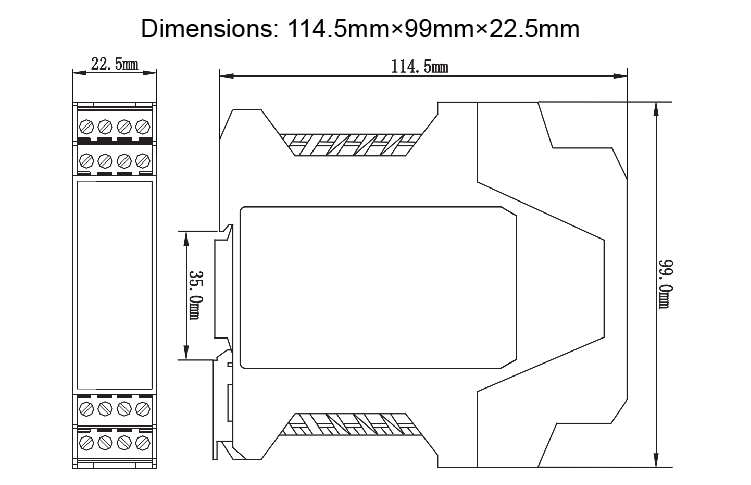

Dimensions
Depth 114.5mm
Height 99.0mm
Width 22.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour white
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1
Surge immunity According to:IEC 61326-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Data communication
HART Yes
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Notes
Utilization restriction It is not allowed to use HHC (HART hand-held communicator) in input and output at the same time.
