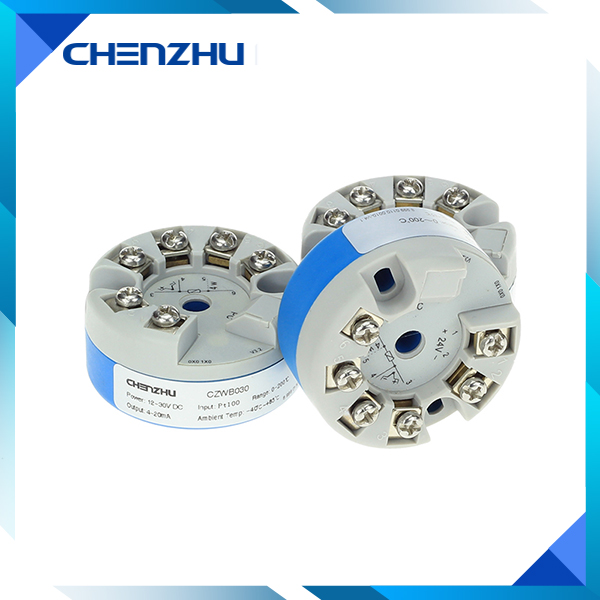

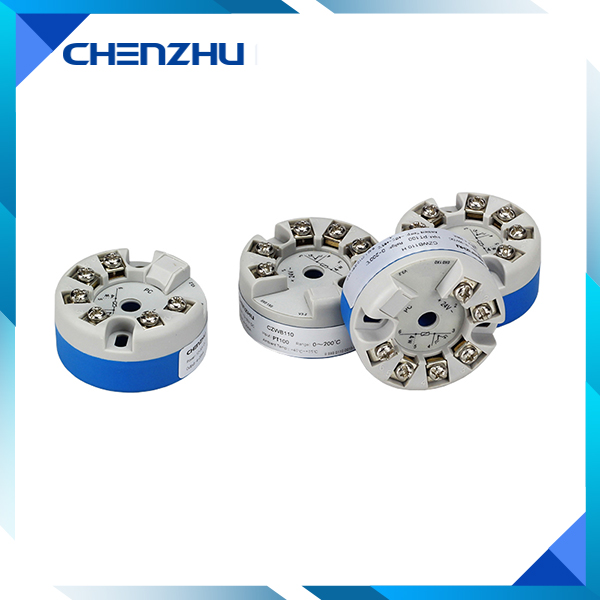

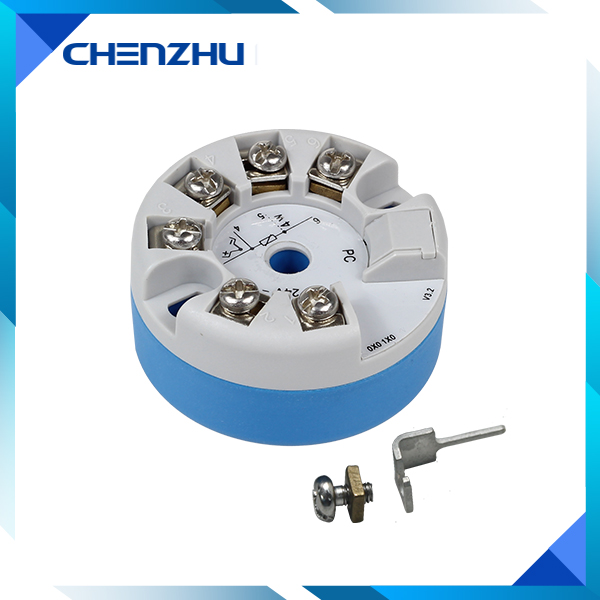

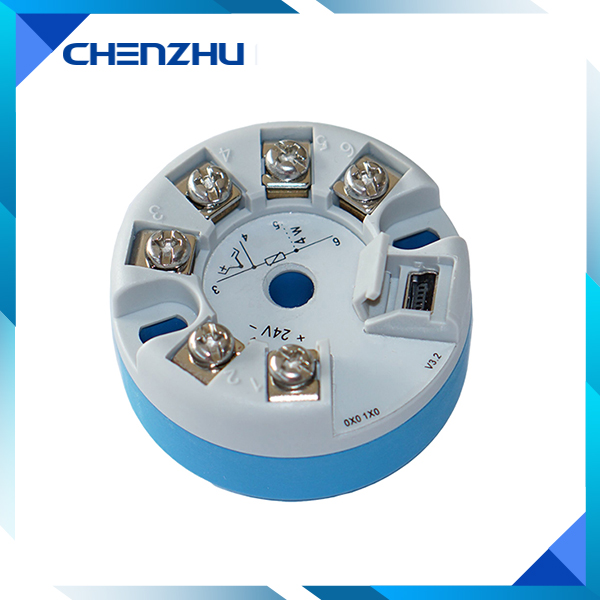

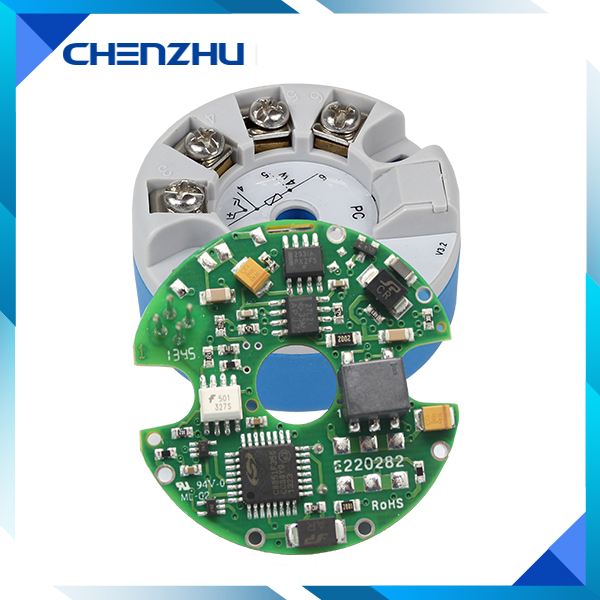

RTD input Temperature transmitter
CZWB110  RTD input Temperature transmitter
RTD input Temperature transmitter.Input signal:Pt100,Cu50,Cu100.Output current:4~20mA.Supply voltage(Ue):12~30VDC.Loop powered,Approx 45g.The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using.
Number of channels:
1input 1output
Input signal:
Pt100/CU50/CU100
Output Signal:
4~20mA(Without Energy)
Supply Voltage:
Loop Power Suply
Special Function:
Field Type
CZWB110
产品详情
产品参数
下载
click to consult
加入对比
加入询价单


Product Name  CZWB110 Transmitter
Number of channels  1
Supply voltage(Ue)  12~30V DC
Input signal  Pt100,Cu50,Cu100
Output current  4~20mA
Weight  Approx 45g


RTD input Temperature transmitter

RTD input Temperature transmitter

RTD input Temperature transmitter


RTD input Temperature transmitter

Product characteristic
General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
产品参数
Product characteristic
Characteristic Input/Output Isolation
General
Number of channels 1
Dielectric strength 1500V AC;1minute(between input and output )
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 1s
Insulation resistance ≥100MΩ;500V DC(between input and output)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 45g
Input data
Input signal Pt100,Cu50,Cu100;
Output data
Output current 4~20mA
Current output load resistance RL≤(Ue-12)/0.021Ω
Alarm indication Lower limit overflow alarm,output current ≈3.8mA;Upper limit overflow alarm,output current ≈20.8mA
Power supply
Supply voltage(Ue) 12~30VDC
Power supply mode Loop powered
Dimensions
Depth 46.6mm
Width 25.0mm
Housing
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour blue
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -40℃~+85℃
Storage temperature -40℃~+85℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M4
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
