RTD/TC Input Temperature Transmitter

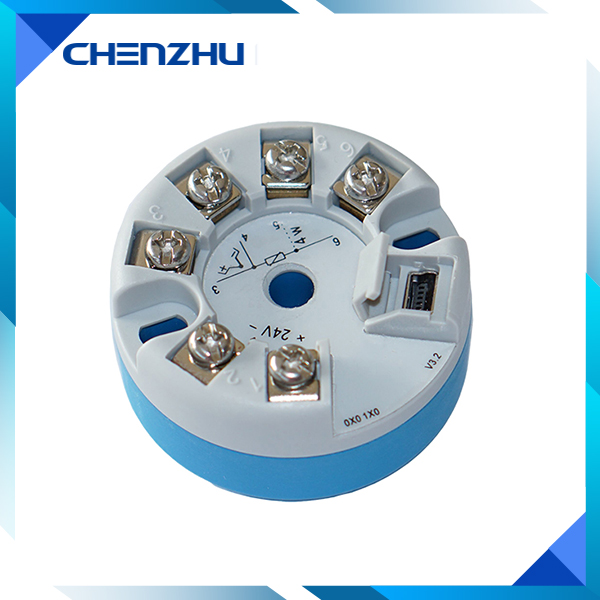

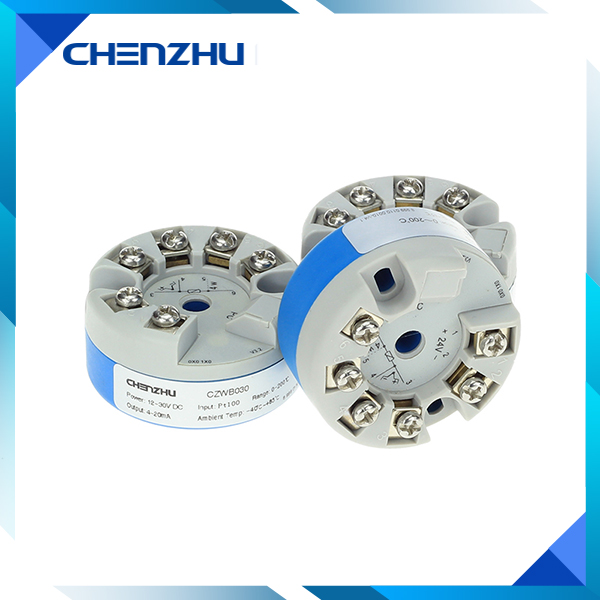

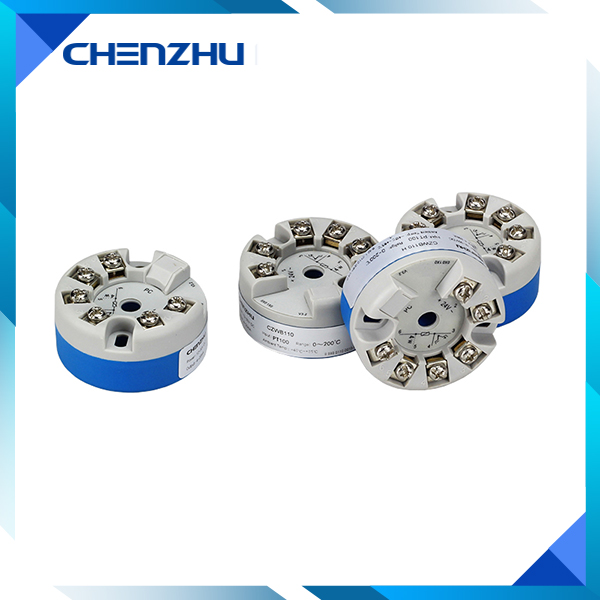

CZWB030  RTD/TC Input Temperature Transmitter
RTD/TC Input Temperature Transmitter.Input signal:Pt100;Cu50;Cu100;T;E;J;K;N;R;S;B;mV.Output current:4~20mA.Supply voltage(Ue):12~30VDC.Loop powered,Approx 45g.
Number of channels:
1input 1output
Input signal:
Pt100;Cu50;Cu100;T;E;J;K;N;R;S;B
Output Signal:
4~20mA(Without Energy)
Supply Voltage:
Loop Power Suply
Special Function:
Field Type
CZWB030
Product details
Technichal Data
Download
contrast
enquire


RTD/TC Input Temperature Transmitter


Product Name  CZWB030 Transmitter
Number of channels  1
Supply voltage(Ue)  12~30V DC
Input signal  Pt100;Cu50;Cu100;T;E;J;K;N;R;S;B;mV
Output current  4~20mA
Weight  Approx 45g


RTD/TC Input Temperature Transmitter

RTD/TC Input Temperature Transmitter

RTD/TC Input Temperature Transmitter


RTD/TC Input Temperature Transmitter

Product characteristic
General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Others
Generate PDF
Technichal Data
Product characteristic
Characteristic Non-Isolated
General
Number of channels 1
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 1s
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 45g
Input data
Input signal Pt100;Cu50;Cu100;T;E;J;K;N;R;S;B;mV
Output data
Output current 4~20mA
Current output load resistance RL≤(Ue-12)/0.021Ω
Alarm indication Lower limit overflow alarm,output current ≈3.8mA;Upper limit overflow and breakage alarm,output current ≈20.8mA
Power supply
Supply voltage(Ue) 12~30VDC
Power supply mode Loop powered
Dimensions
Depth 46.6mm
Width 25.0mm
Housing
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour blue
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class B
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class B
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -40℃~+85℃
Storage temperature -40℃~+85℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M4
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Others
Cold junction compensation accuracy ±1℃(Compensation range:-20℃~+60℃)
