VI,Isolator(1 channel)

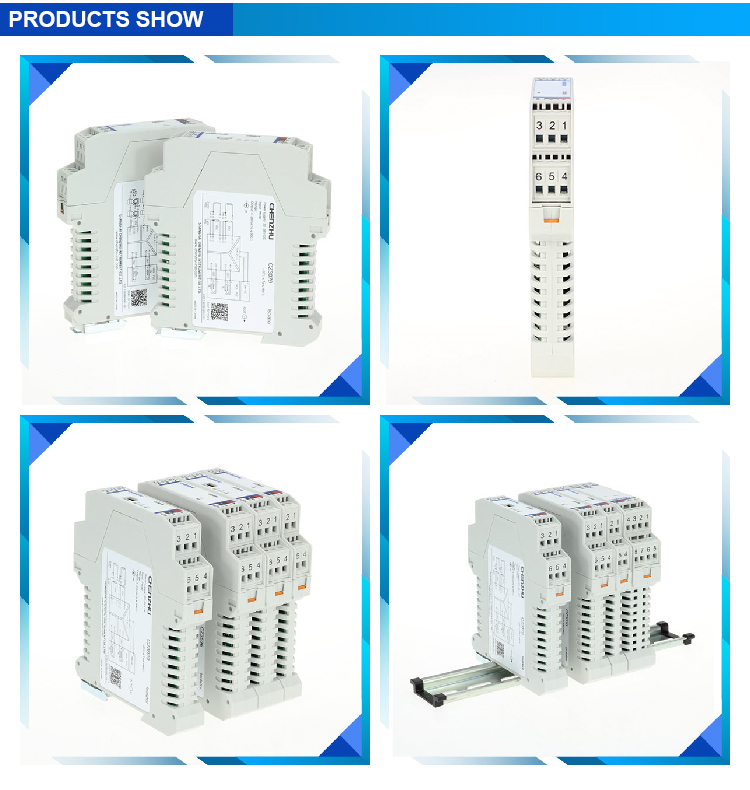

CZ3089  VI,Isolator(1 channel)
One into two, support for multiple input voltage current signal, a variety of input voltage and current signals Can provide isolation power supply to the field instruments
Number of channels:
1input/2outputs
Input signal:
0/4~20mA
0~20mA
4~20mA
Power Distribution:
10V/20mA
15V/20mA
None
Output signal:
0~20mA
4~20mA
0~5V
1~5V
0~10V
CZ3089
Product details
Technichal Data
Download
contrast
enquire

VI,Isolator(1 channel)

VI,Isolator(1 channel)



Product Name  CZ3089 Isolator
Number of channels  1 input/2 outputs
Supply voltage(Ue)  20~35V DC
Input signal
 0~20mA;4~20mA;0~5V;1~5V;0~10V
Output signal
 0~20mA;4~20mA;0~5V;1~5V;0~10V
Weight  Approx 150g


VI,Isolator(1 channel)

VI,Isolator(1 channel)

VI,Isolator(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation
Generate PDF
Technichal Data
General
Number of channels 1input/2outputs
Dielectric strength 1500V AC;1minute(among power supply ,input and output )
Output accuracy(20°C) 0.1%F.S.
Temperature drift 0.01%F.S./℃
Response time ≤0.1s
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 150g
Field apparatus Current source;voltage source
Input data
Input signal 0~20mA;4~20mA;0~5V;1~5V;0~10V
Output data
Output signal 0~20mA;4~20mA;0~5V;1~5V;0~10V
Output current Specified range when ordering
Current output load resistance RL≤300Ω
Output voltage Specified range when the user order
Voltage output load resistance RL≥20kΩ
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤130mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode Terminal

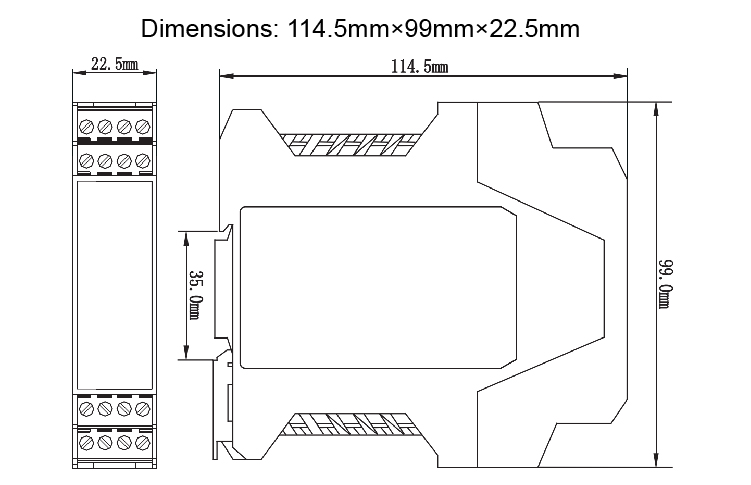

Dimensions
Depth 114.5mm
Height 99.0mm
Width 22.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour white
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class B
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class B
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using

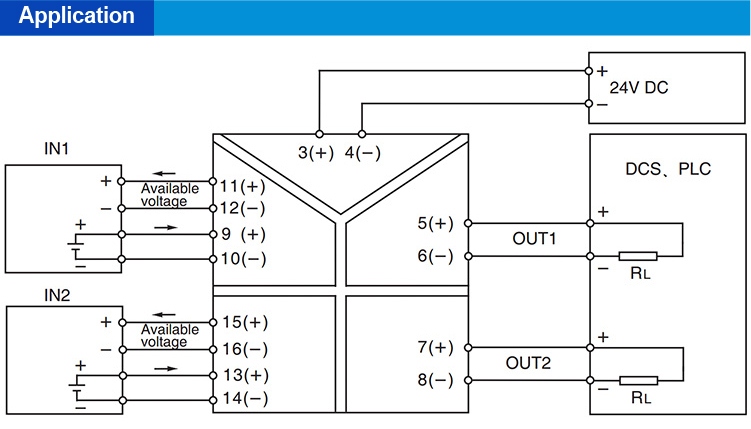

Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
