Potentiometer,Isolator(2 channels)

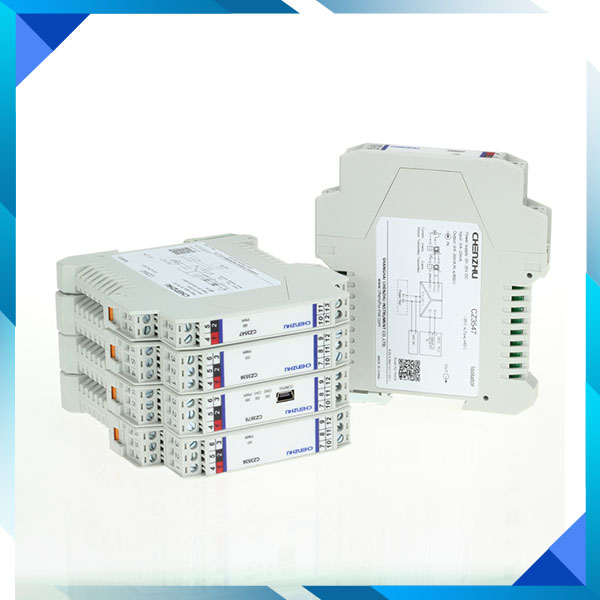

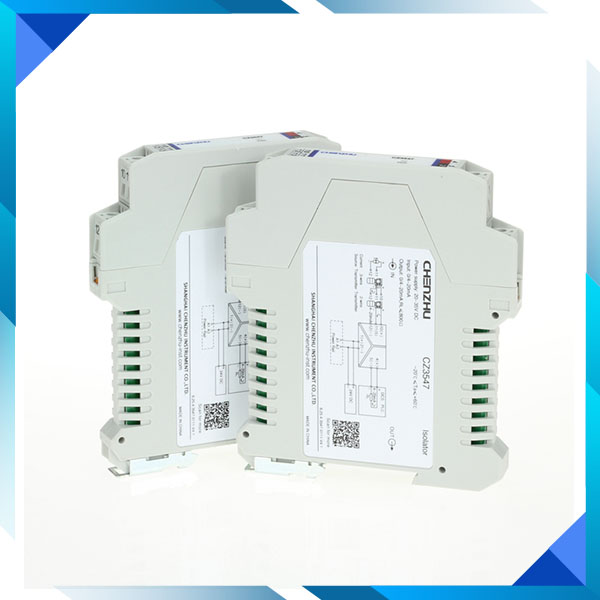

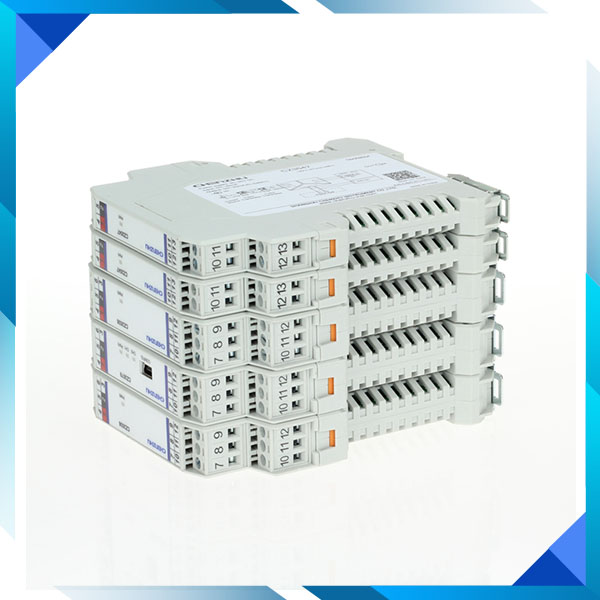

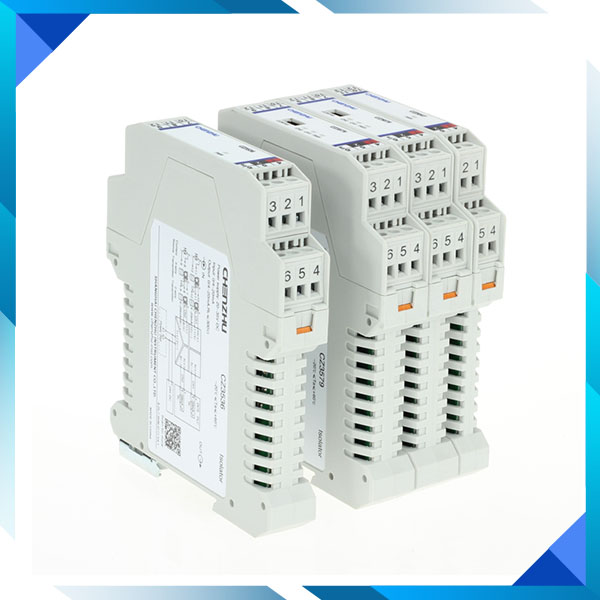

CZ3579.R  Potentiometer,Isolator(2 channels)
2 inputs/2 outputs,potentiometer input up to 5 kΩ, can be customized range range, range range can be according to the site condition changes, range, break line detection and alarm function.
contrast
enquire
Generate PDF
CZ3579.R
Product details
Download
Technichal Data
General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation

Potentiometer,Isolator(2 channels)

Potentiometer,Isolator(2 channels)


Product Name  CZ3579.R Isolator
Number of channels  2 inputs/2 outputs
Supply voltage(Ue)  20~35V DC
Input signal  Potentiometer
Output signal
 0~20mA;4~20mA;0~5V;1~5V
Weight  Approx 150g
Field apparatus  2-wire potentiometer;3-wire potentiometer

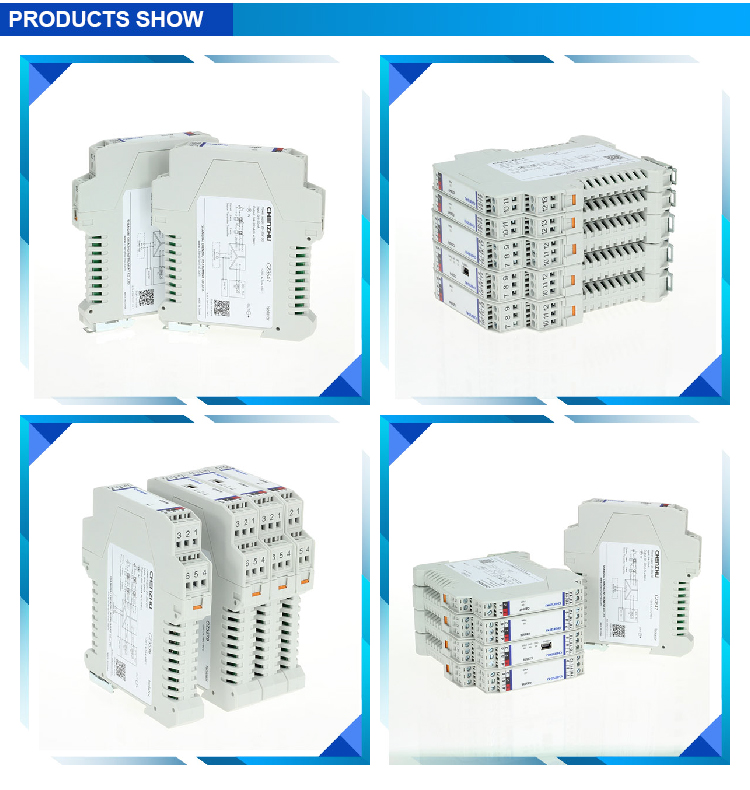

Potentiometer,Isolator(2 channels)

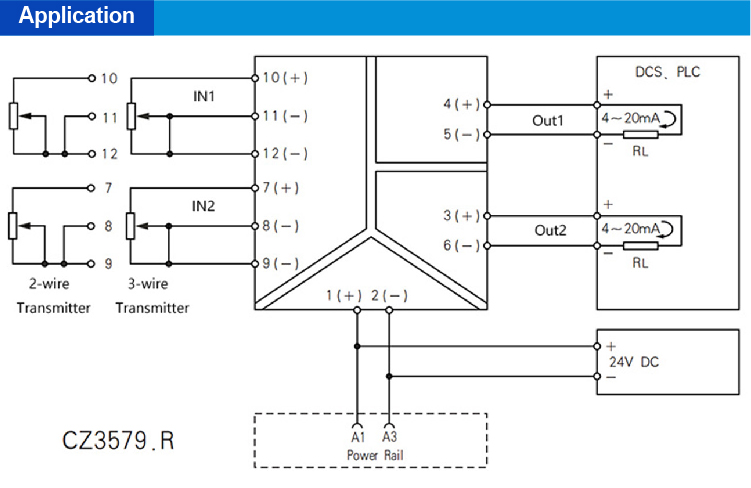

Potentiometer,Isolator(2 channels)

Potentiometer,Isolator(2 channels)


Technichal Data
General
Number of channels 2inputs/2outputs
Dielectric strength 1500V AC;1minute(among power supply ,input and output )
Output accuracy(20°C) 5Ω/0.1%F.S
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 1s
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 150g
Field apparatus 2-wire Potentiometer;3-wire Potentiometer
Input data
Input signal Potentiometer
Output data
Output signal 0~20mA;4~20mA;0~5V;1~5V
Current output load resistance RL≤300Ω
Voltage output load resistance RL≥20kΩ
Alarm indication Lower than range, LED YELLOW falshing, output current ≈3.8mA;Higher than range, LED RED falshing, output current ≈20.8mA;Breakage, LED YELLOW and RED falshing alternately, output current ≈20.8mA
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤55mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal

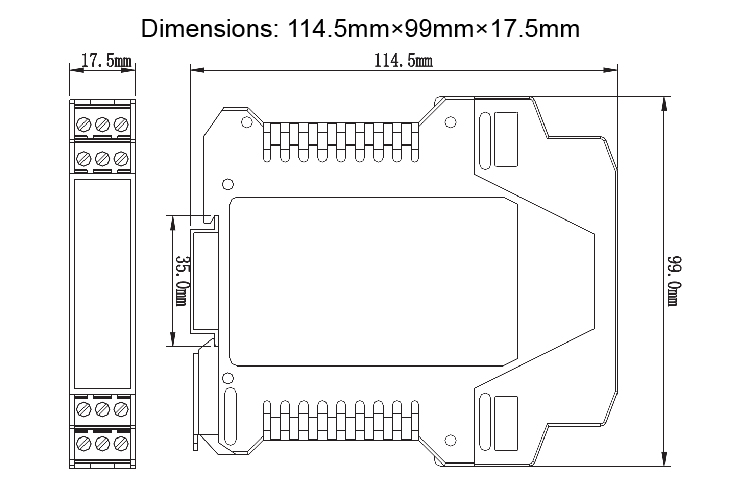

Dimensions
Depth 114.5mm
Height 99.0mm
Width 17.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour white
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
