1 input 1 output TC Input Signal Isolator
CZ3072  1 input 1 output TC Input Signal Isolator
TC 1 input 1 output signal isolator with converts the TC, mV signal input 0/4-20 mA or 0/1-5V signal output. TC input signal isolator conversion accuracy is as high as 0.1%, automatic cold junction compensation function, signal isolator should be supplied power independently, Input circuit, output circuit and power supply are each galvanically isolated.
Number of channels:
1input/1output
Input signal:
T
E
J
K
N
R
S
B
Output signal:
0~20mA
4~20mA;
0~5V
1~5V
Power Supply Mode:
24VDC
Power Connection Mode:
Terminal Power Supply
CZ3072
Product details
Technichal Data
Download
contrast
enquire

1 input 1 output TC Input Signal Isolator

1 input 1 output TC Input Signal Isolator


Product Name  CZ3072 TC input signal isolator
Number of channels  1 input 1 output
Supply voltage(Ue)  20-35V DC
Input signal  T,E,J,K,N,R,S,B,mV
Output signal   0-20mA,4-20mA,0-5V,1-5V
Field apparatus  TC,mV

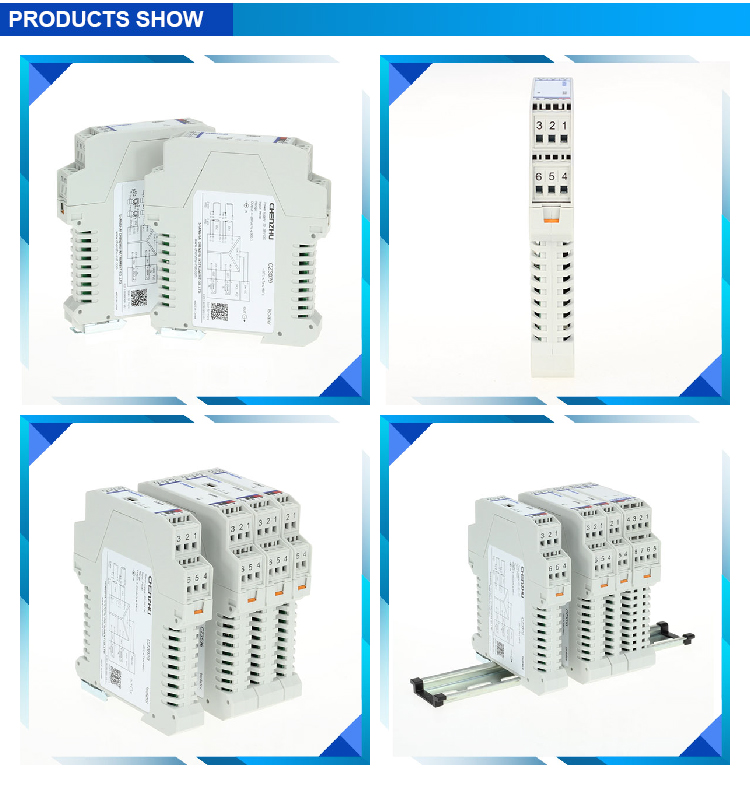

1 input 1 output TC Input Signal Isolator

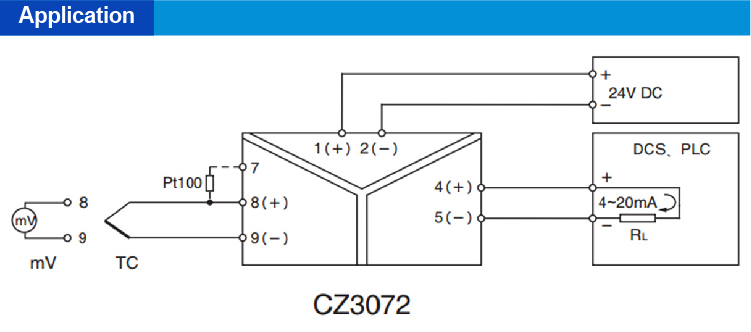

1 input 1 output TC Input Signal Isolator

1 input 1 output TC Input Signal Isolator

Packing information


unit packaging size for 1pc of CZ3072 signal isolator:

outer carton for 5 pcs of CZ3072 signal isolator: 17*15*13 cm

outer carton for 10 pcs of CZ3072 signal isolator: 30*18*15 cm

outer carton for 20 pcs of CZ3072 signal isolator: 35*29*14 cm

outer carton for 40 pcs of CZ3072 signal isolator: 35*29*26 cm


FAQ

Q: What information should I provide before order?

A: Please specify the following information:

1. Which TC input signal you need? T,E,J,K,N,R,S,B,mV?

2. Which output signal you need? 4-20mA or 0-20mA or 0/1-5V?



Q: How to set the input data?

A: Before order, please confirm the sensor type and range scope you need, we will set as you need before delivery out.

On the other hand, CHENZHU RTD/TC producta are programmable. The configuration software and dedicated adapter will be needed.



Q: Are you trading company or manufacturer ?

A: We are manufacturer, providing own brand product and also ODM/OEM services.


Q: How long is your delivery time?

A: ≤ 20 pcs, generally it is 3~7 working days after 100% down-pay; 20-100 pcs, it is 2~4 weeks after 100% down-pay  according to quantity; More than 100 pcs,  pls contact with our support.


Q: What is your terms of payment ?

A: 100% T/T in advance.


General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation
Others
Generate PDF
Technichal Data
General
Number of channels 1input/1output
Dielectric strength 1500V AC;1minute(among power supply ,input and output )
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 1s
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 100g
Field apparatus TC;mV
Input data
Input signal T;E;J;K;N;R;S;B;mV
Output data
Output signal 0~20mA;4~20mA;0~5V;1~5V
Current output load resistance RL≤300Ω
Voltage output load resistance RL≥20kΩ
Alarm indication Lower than range, LED L falshing, output current ≈3.8mA;Higher than range, LED H falshing, output current ≈20.8mA;Breakage, LED L and H falshing at the same time, output current ≈20.8mA
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤35mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode Terminal
Dimensions
Depth 114.5mm
Height 99.0mm
Width 17.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour white
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Others
Cold junction compensation accuracy ±1℃(Compensation range:-20℃~+60℃)
