TC,Isolator(1 channel)
CZ2171  TC,Isolator(1 channel)

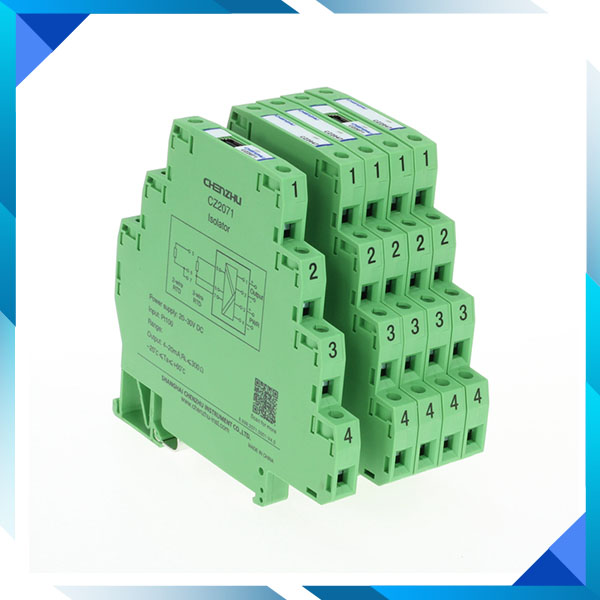

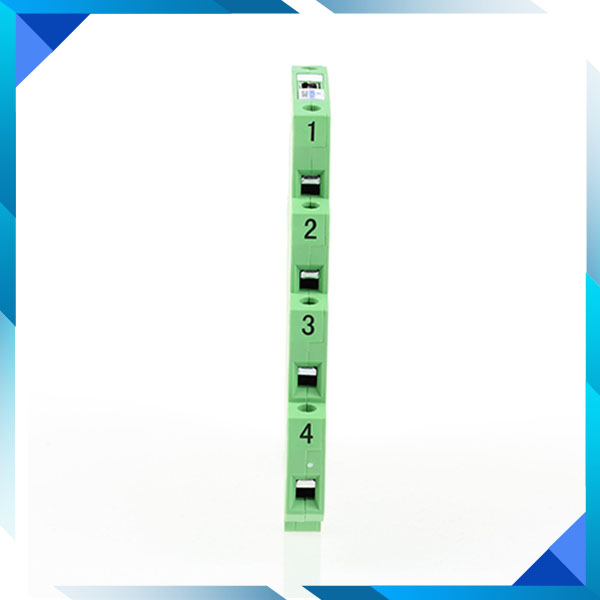

7.6 mm thin shell, save installation space. Site can modify the parameters, easy to use. Support for 13 kinds of commonly used temperature sensor, suitability is strong.
Number of channels:
1input/1output
Input signal:
T
E
J
K
N
R
S
B
Output signal:
0~20mA
4~20mA;
0~5V
1~5V
Power Supply Mode:
24VDC
Power Connection Mode:
Terminal Power Supply
CZ2171
Product details
Technichal Data
Download
contrast
enquire

TC,Isolator(1 channel)

TC,Isolator(1 channel)



Product Name  CZ2171 Isolator
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal
 T;E;J;K;N;R;S;B;mV
Output signal  0~20mA;4~20mA;0~5V;1~5V
Weight  Approx 45g
Field apparatus  TC;mV


TC,Isolator(1 channel)

TC,Isolator(1 channel)

TC,Isolator(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation
Others
Generate PDF
Technichal Data
General
Number of channels 1input/1output
Dielectric strength 1500V AC;1minute(among power supply ,input and output )
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 1s
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 45g
Field apparatus TC;mV
Input data
Input signal T;E;J;K;N;R;S;B;mV
Output data
Output signal 0~20mA;4~20mA;0~5V;1~5V
Current output load resistance RL≤300Ω
Voltage output load resistance RL≥20kΩ
Alarm indication Lower limit overflow alarm, output current ≈3.8mA;Upper limit overflow and breakage alarm, output current ≈20.8mA
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤35mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode Terminal
Dimensions
Depth 92.4mm
Height 97.7mm
Width 7.6mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour green
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm

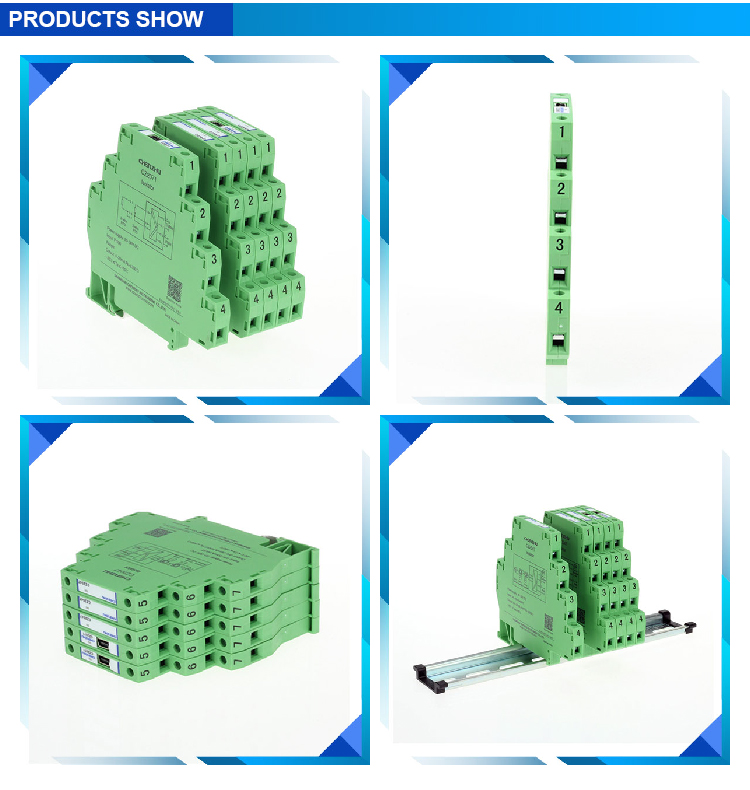

Installation

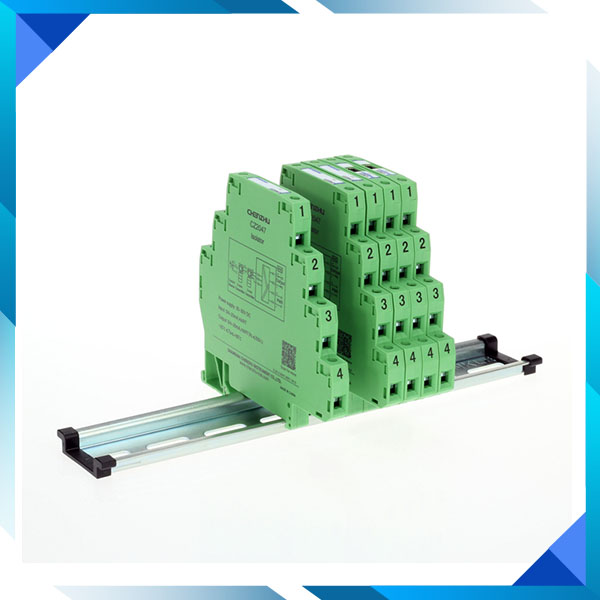

Mounting type DIN35mm
Others
Cold junction compensation accuracy ±1℃;Intensive installation:±3℃(Compensation range:-20℃~+60℃
