1 input 2 outputs Frequency Input Signal Isolator
CZ3055  1 input 2 outputs Frequency Input Signal Isolator
Frequency conversion 1 input 2 outputs signal isolator, frequency input signal isolator will be set according to the user to convert the linear range 4-20mA or 0~20mA output.The product has one relay alarm output. signal isolator should be supplied power independently, Input circuit, output circuit and power supply are each galvanically isolated.
Number of channels:
1input/2output
Input signal:
Frequency(0.1~100kHz)
Output signal:
0~20mA
4~20mA
0~5V
1~5V
Power Supply Mode:
24VDC
Relay alarm output:
Involve
CZ3055
Product details
Technichal Data
Download
contrast
enquire

1 input 2 outputs Frequency Input Signal Isolator

1 input 2 outputs Frequency Input Signal Isolator



Product Name   CZ3055 signal isolator
Number of channels  1 input 2 outputs
Input signal  PNP, NPN, Freuency, Proximity swith, Dry contact
Output signal  0-20mA,4-20mA,0-5V,1-5V,Relay
Temperature drift
 0.01% F.S./℃


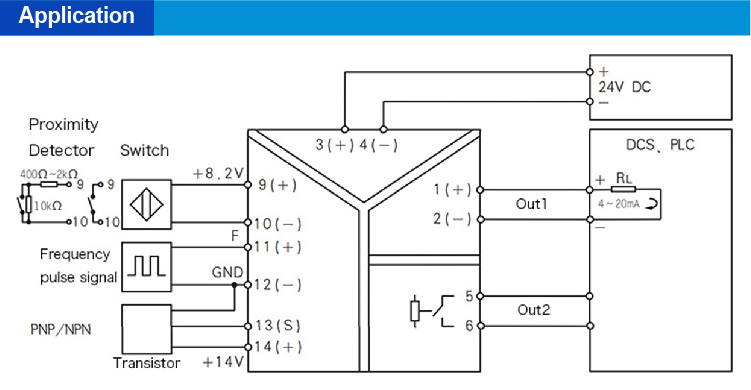

1 input 2 outputs Frequency Input Signal Isolator

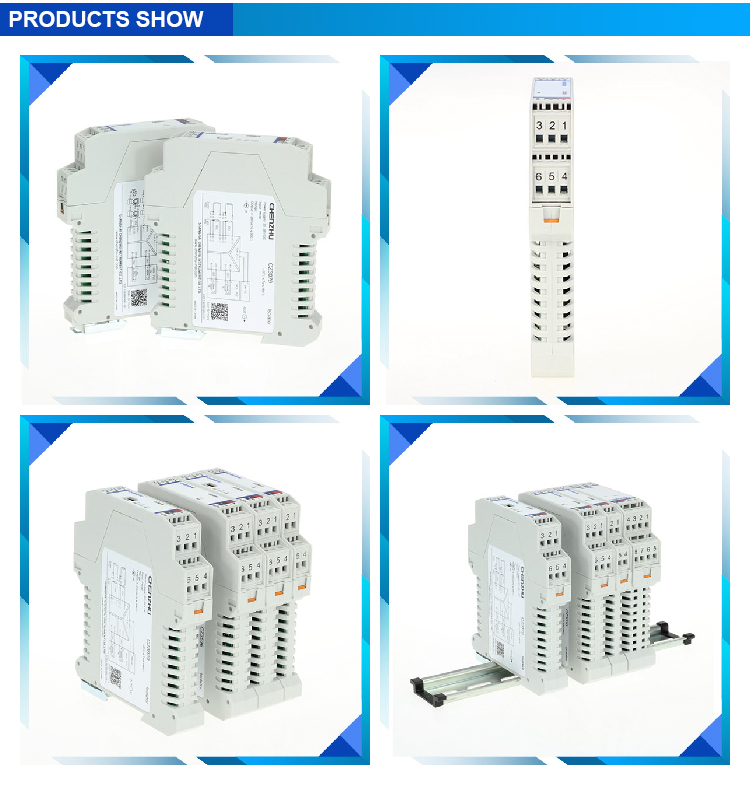

1 input 2 outputs Frequency Input Signal Isolator

1 input 2 outputs Frequency Input Signal Isolator

Q: What information should I provide before order?

A: Please specify the following information:

1. Which frequency input signal you need? PNP, NPN, Freuency, Proximity swith, Dry contact?

2. Which output signal you need? 4-20mA or 0-20mA or 0/1-5V or relay?



Q: How long is your warranty period?

A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2013 and continues to drive our development of new products and solutions to meet our customers’needs.



Q: Are you trading company or manufacturer?

A: We are manufacturer, based on Shanghai, providing own brand product and also ODM/OEM services.


Q: How long is your delivery time?

A: ≤ 20 pcs, generally it is 3~7 working days after 100% down-pay; 20-100 pcs, it is 2~4 weeks after 100% down-pay according to quantity; More than 100 pcs, please contact with our support.



Q: What is your terms of payment?

A: 100% T/T in advance.


General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation
Generate PDF
Technichal Data
General
Number of channels 1input/2outputs
Dielectric strength 1500V AC;1minute(among power supply ,input and output )
Transfer accuracy(20°C) 0.1% F.S.
Temperature drift 0.01% F.S./℃
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 150g
Field apparatus Dry contact or DIN19234 standard NAMUR proximity switch input field devices (including the intrinsically safe type pressure switch, temperature switches, liquid level switch);Level pulse signal;3-wire PNP/NPN sensor;Incremental encoder
Input data
Input signal PNP;NPN;Freuency;Proximity swith;Dry contact
Short circuit current ≈8mA
PNP/NPN transistor 3-wire PNP/NPN sensor:Sensor Available voltage:14V, Current:<20mA;Frequency:0.1Hz~100kHz
Frequency pulse signal Frequency:0.1Hz~100kHz;Maximum allowable input voltage:30Vp-p
Switch, proximity switch Distribution voltage:≈8V; Short circuit current:≈8mA;Frequency:0.1Hz~100kHz
Impulse duration ≥2μs
Output data
Load type resistive load
Output signal 0~20mA;4~20mA;0~5V;1~5V;Relay
Current output load resistance ≤400Ω
Voltage output load resistance ≥300kΩ
Alarm indication Input signal higher than upper limit of alarm,LED H ON;Input signal lower than lower limit of alarm,LED L ON;Input error,LED H and L ON at the same time;Output relay energized,LED RAL ON
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption (at 24Vdc supply,output energized)≤90mA
Power supply mode Independent power supply
Power connecting mode Terminal

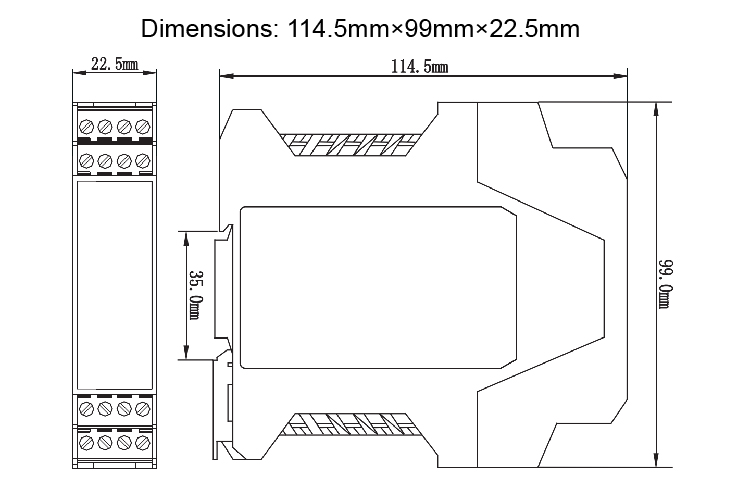

Dimensions
Depth 114.5mm
Height 99.0mm
Width 22.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour white
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1
Surge immunity According to:IEC 61326-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
