AI,Isolator(1 channel)

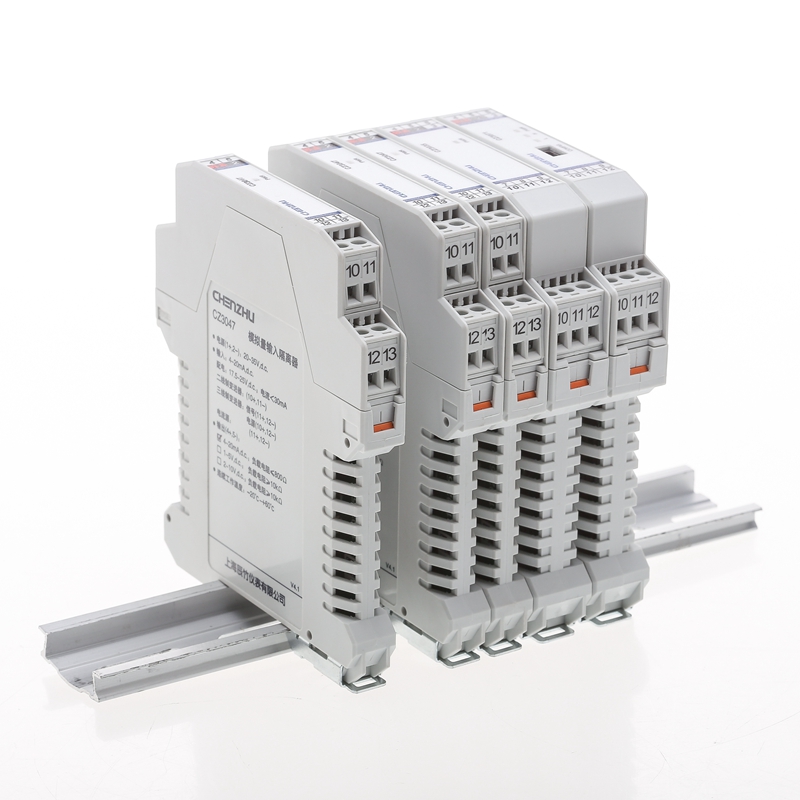

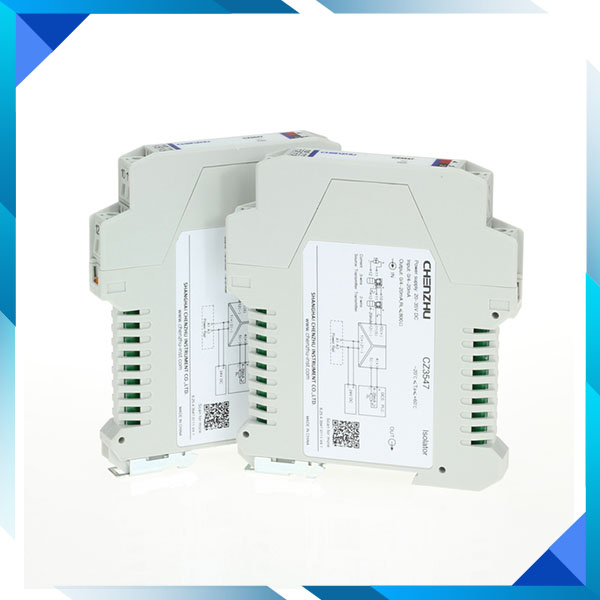

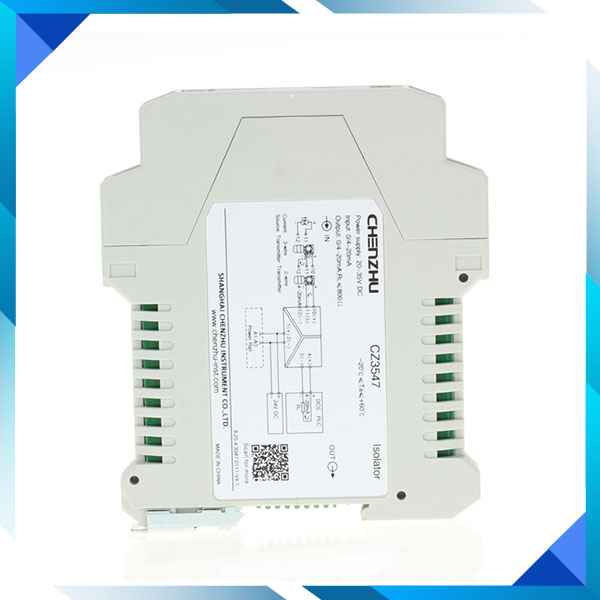

CZ3547  AI,Isolator(1 channel)
The output port is the active signal, the second line, the three wire system and the current source input, the conversion accuracy is better than 5/10000 (0.05%F.S.).The product needs an independent power supply,power supply, input and output three isolation.
Number of channels:
1input/1output
Input signal:
0/4~20mA
Power Distribution:
17.5V/20mA
Output signal:
0/4~20mA
0/1~5V
0/2~10V
Power Supply Mode:
24VDC
Power Connection Mode:
Bus Power Supply
contrast
enquire
Generate PDF
CZ3547
Product details
Download
General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation

AI,Isolator(1 channel)

AI,Isolator(1 channel)



Product Name  CZ3547 Isolator
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal  0~20mA;4~20mA
Output current
 0~20mA;4~20mA
Weight  Approx 100g

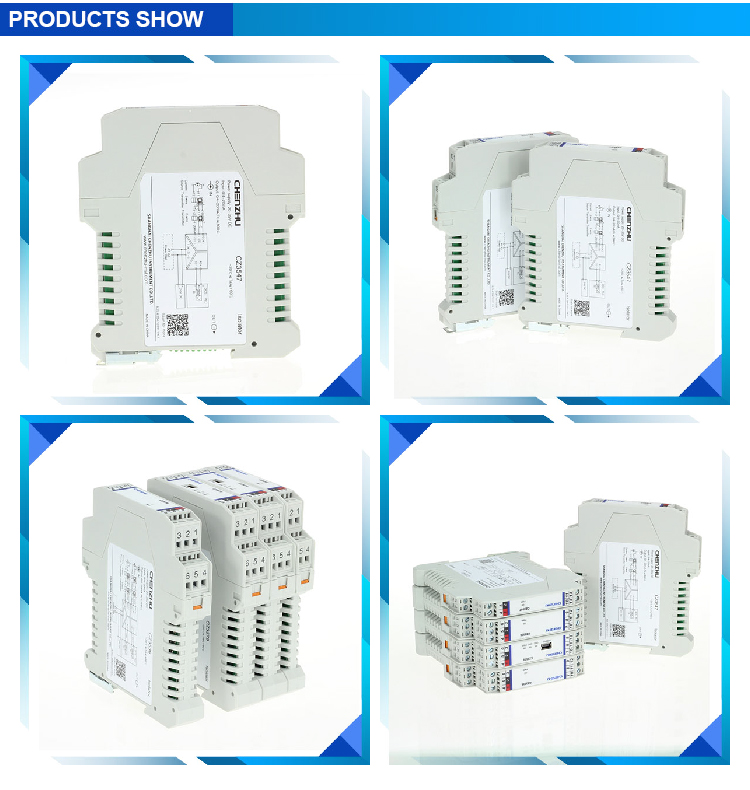

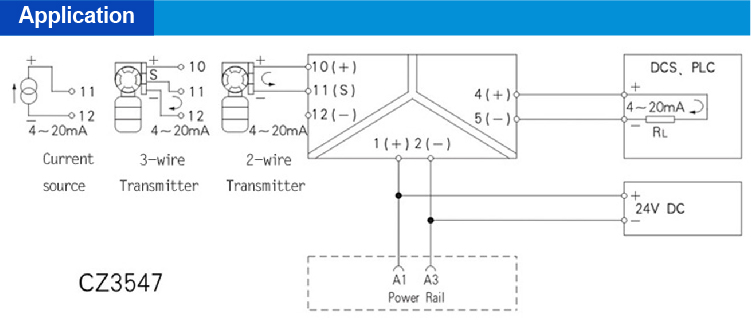

Field apparatus  2-wire transmitter,3-wire transmitter, current source


AI,Isolator(1 channel)

AI,Isolator(1 channel)

AI,Isolator(1 channel)


Technichal Data
General
Number of channels 1input/1output
Dielectric strength 1500V AC;1minute(among power supply ,input and output )
Output accuracy(20°C) 0.1%F.S.
Temperature drift 0.005%F.S./℃
Response time Reach 90% of final value in 0.5ms
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 100g
Field apparatus 2-wire Transmitter,3-wire Transmitter, Current Source
Input data
Input signal 0~20mA;4~20mA
Input impedance ≤50Ω
Max. input current <35mA
Distribution voltage 17.5~25V,current<35mA
Output data
Output current 0~20mA;4~20mA
Current output load resistance RL≤800Ω
Output voltage 0~5V;1~5V;0~10V;2~10V
Voltage output load resistance ≥330kΩ(0~5V);≥330kΩ(1~5V);≥660kΩ(0~10V);≥660kΩ(2~10V)
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤60mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal

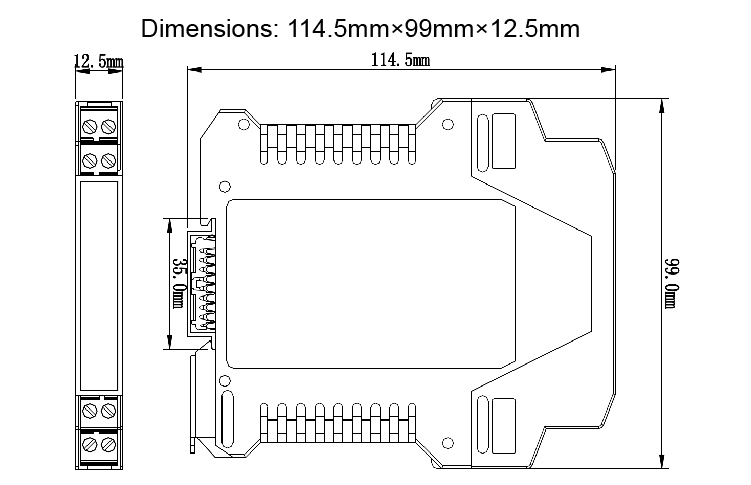

Dimensions
Depth 114.5mm
Height 99.0mm
Width 12.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour white
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
