Explosion proof elevator;safety door, Isolated Barrier(1 channel)

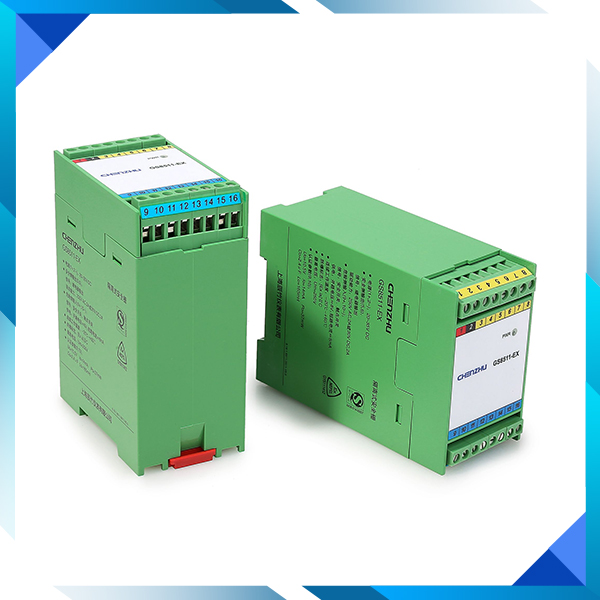

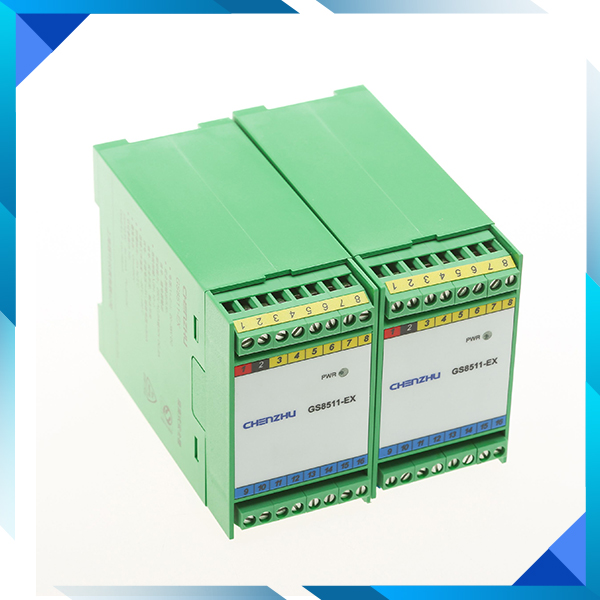

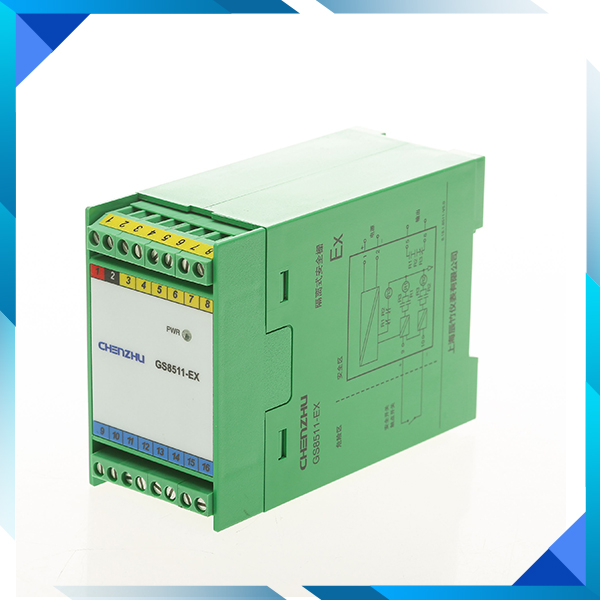

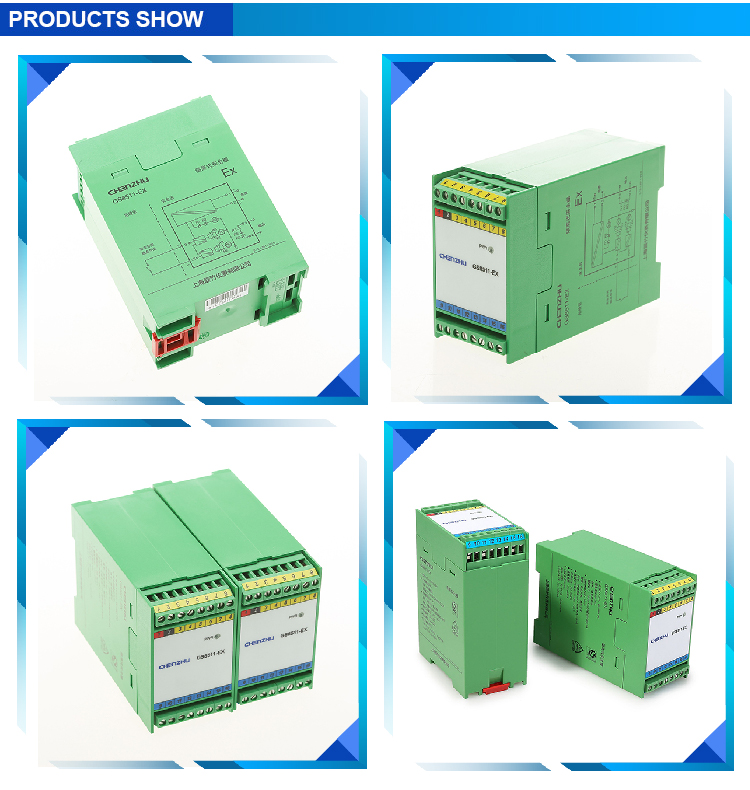

GS8511-EX  Explosion proof elevator;safety door, Isolated Barrier(1 channel)
Relay output Isolated Barrier,transfer digital signals(switch or NAMUR proximity detectors) from a hazardous area to a safe area.Especially suitable for explosion-proof elevator, security doors and other explosion-proof equipment safety switch signal monitoring and processing.
GS8511-EX
Product details
Technichal Data
Download
contrast
enquire

Explosion proof elevator;safety door, Isolated Barrier(1 channel)

Explosion proof elevator;safety door, Isolated Barrier(1 channel)


Product Name  GS8511-EX Isolated Barrier
Number of channels  1input/1output
Supply voltage(Ue)  15~35V DC
Ambient temperature  -20℃~+60℃
Weight  Approx 350g
EX symbol
 [Ex ia Ga]ⅡC

Explosion proof elevator;safety door, Isolated Barrier(1 channel)Explosion proof elevator;safety door, Isolated Barrier(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Operating conditions
Connection data
Installation
Generate PDF
Technichal Data
General
Number of channels 1input/1output
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Response time ≤20ms
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC
Weight Approx 200g
Field apparatus Safety switch; contact switch
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal Safety switch; contact switch
Distribution voltage ≈8V
Short circuit current ≈8mA
Output data
Drive capability 250V AC,2A or 30V DC,2A
Load type resistive load
Output signal Satety relay
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption (at 24Vdc supply,output energized)≤80mA
Power supply mode Independent power supply
Power connecting mode Terminal

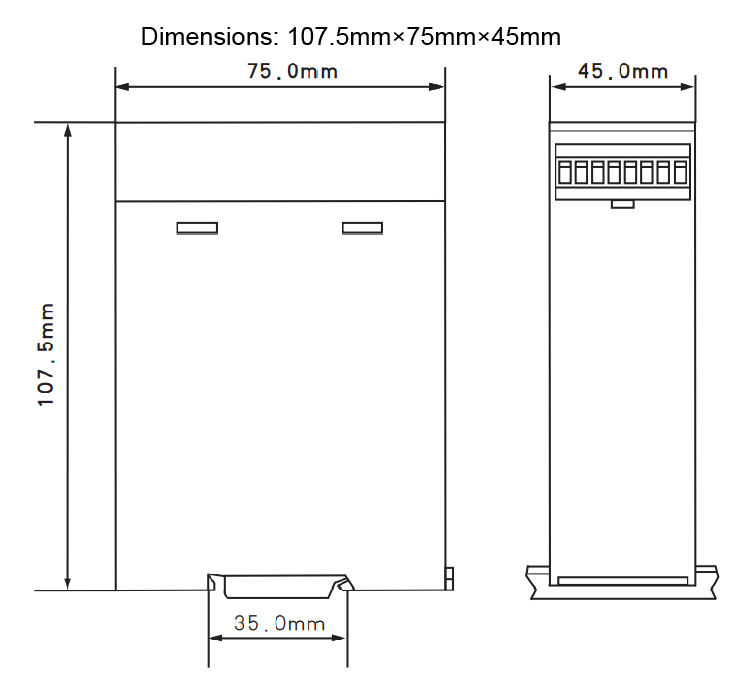

Dimensions
Depth 107.5mm
Height 75.0mm
Width 45.0mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour green
Product approvals
Approvals NEPSI;ETC
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20
Special equipment test Comply with standard:GB 7588、EN 81-1
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 10.5V(9,10)
Max.output current Io 14mA(9,10)
Max.output power Po 37mW(9,10)
IIC Max. external inductance Lo 165mH(9,10)
IIC Max. external capacitance Co 2.4μF(9,10)
IIB Max. external inductance Lo 495mH(9,10)
IIB Max. external capacitance Co 16.8μF(9,10)
IIA Max. external inductance Lo 1000mH(9,10)
IIA Max. external capacitance Co 75.0μF(9,10)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class A
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1;Class A
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1;Class A
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
