RS-485 half duplex,Isolated Barrier(1 channel)

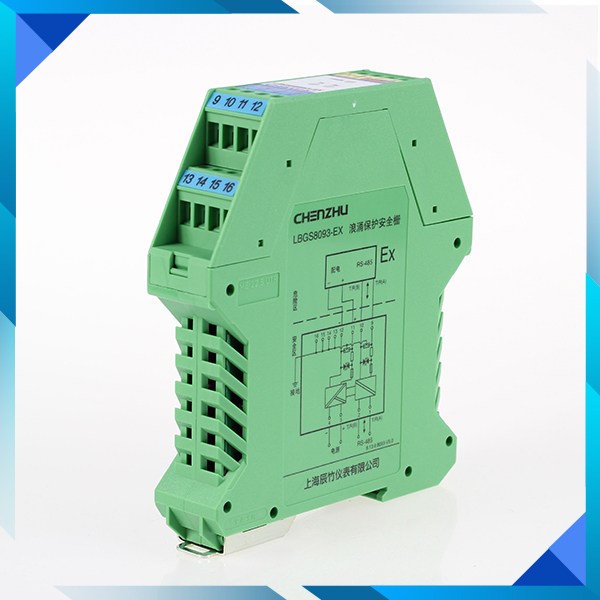

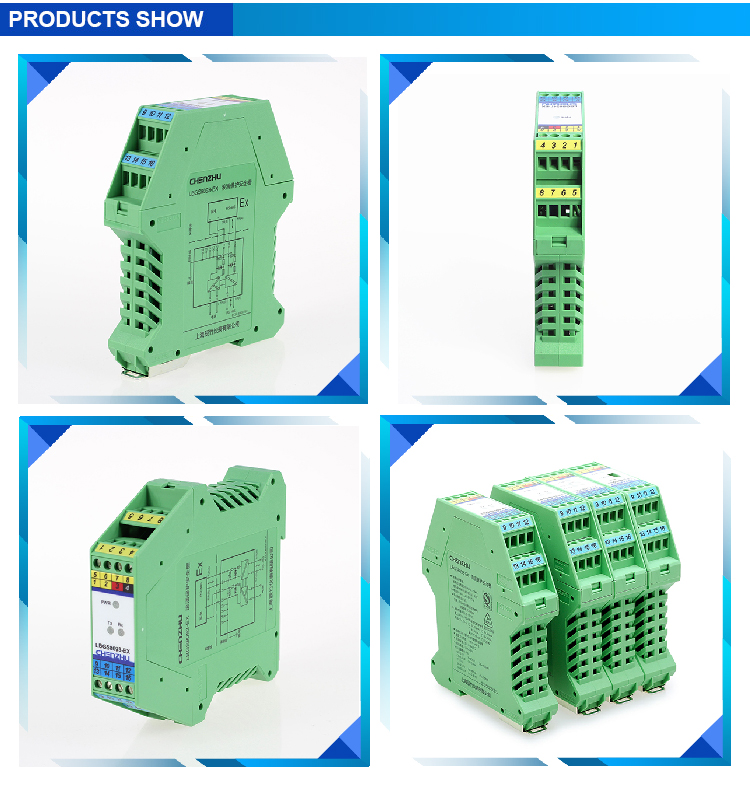

LBGS8093-EX  RS-485 half duplex,Isolated Barrier(1 channel)
RS-485 half duplex,Isolated Barrier.Field apparatus:Communication interface equipment with RS-485.Input signal:RS-485 half duplex.Output signal:RS-485 half duplex.Approx 150g,Independent power supply.
Number of channels:
1input/1output
Input signal:
RS-485 Half Duplex
Power Distribution:
5V/100mA
6V/100mA
8V/50mA
9V/50mA
12V/50mA
Output signal:
RS-485 half duplex
Power Supply Mode:
24VDC
Power Connection Mode:
Terminal Power Supply
Special Function:
Surge protection function
LBGS8093-EX
Product details
Technichal Data
Download
contrast
enquire

RS-485 half duplex,Isolated Barrier(1 channel)

RS-485 half duplex,Isolated Barrier(1 channel)



Product Name
 LBGS8093-EX  Isolated Barrier
Number of channels  1input/1output
Supply voltage(Ue)  20~35V DC
Input signal  RS-485 half duplex
Output signal  RS-485 half duplex
Weight
 Approx 150g
Field apparatus
 Communication interface equipment with RS-485


RS-485 half duplex,Isolated Barrier(1 channel)RS-485 half duplex,Isolated Barrier(1 channel)


RS-485 half duplex,Isolated Barrier(1 channel)


LBGS8093-EX, EX-CN-NEPSI-

General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
Surge-protect properties
EMC data
Operating conditions
Connection data
Installation
Others
Generate PDF
Technichal Data
General
Number of channels 1input/1output
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]IIC
Weight Approx 150g
Field apparatus Interface equipment with RS-485
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal RS-485 half duplex
Distribution voltage 5V/100mA;6V/100mA;8V/50mA;9V/50mA;12V/50mA;None
Output data
Drive capability Up to 32 transceivers
Output signal RS-485 half duplex
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤160mA (at 24Vdc supply,6V/100mA distribution)
Power supply mode Independent power supply
Power connecting mode Terminal

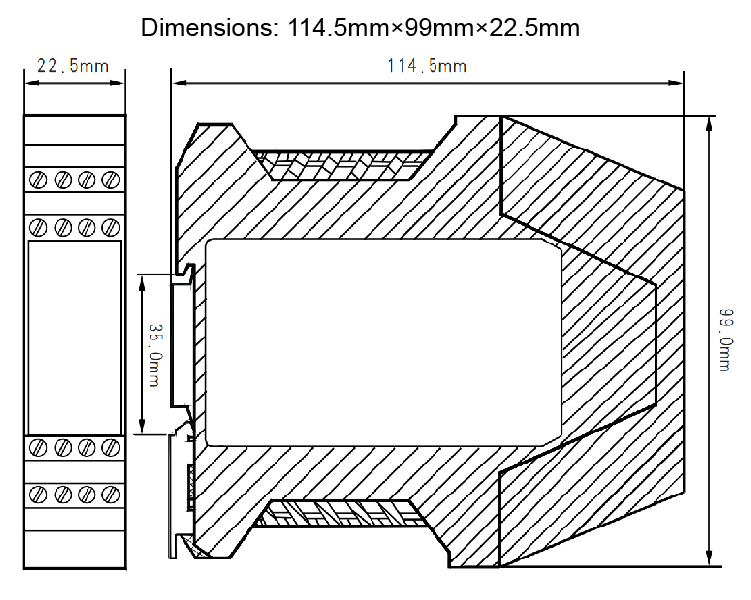

Dimensions
Depth 114.5mm
Height 99.0mm
Width 22.5mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour green
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V

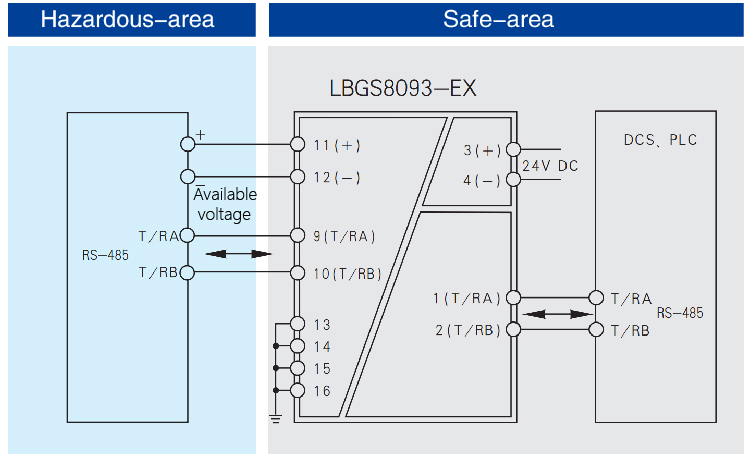

Max.output voltage Uo 8.5V(9,10);23.1V(11,12)
Max.output current Io 90mA(9,10);187mA(11,12)
Max.output power Po 192mW(9,10);1.08W(11,12)
IIC Max. external inductance Lo 3.6mH(9,10);0.8mH(11,12)
IIC Max. external capacitance Co 6.5μF(9,10);0.1μF(11,12)
IIB Max. external inductance Lo 10.8mH(9,10);2.4mH(11,12)
IIB Max. external capacitance Co 60μF(9,10);1.0μF(11,12)
IIA Max. external inductance Lo 28.8mH(9,10);6.4mH(11,12)
IIA Max. external capacitance Co 1000μF(9,10);3.6μF(11,12)
Surge-protect properties
Rated discharge current In(8/20us) 10kA
Voltage protection level Up 60V
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class B
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class B
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Others
Signal level regular Standard RS-485 differential level
Signal transmission delay ≤10μs
Signal transmission rate ≤56kbps
