AI,Relay output Isolated Barrier(1 channel)

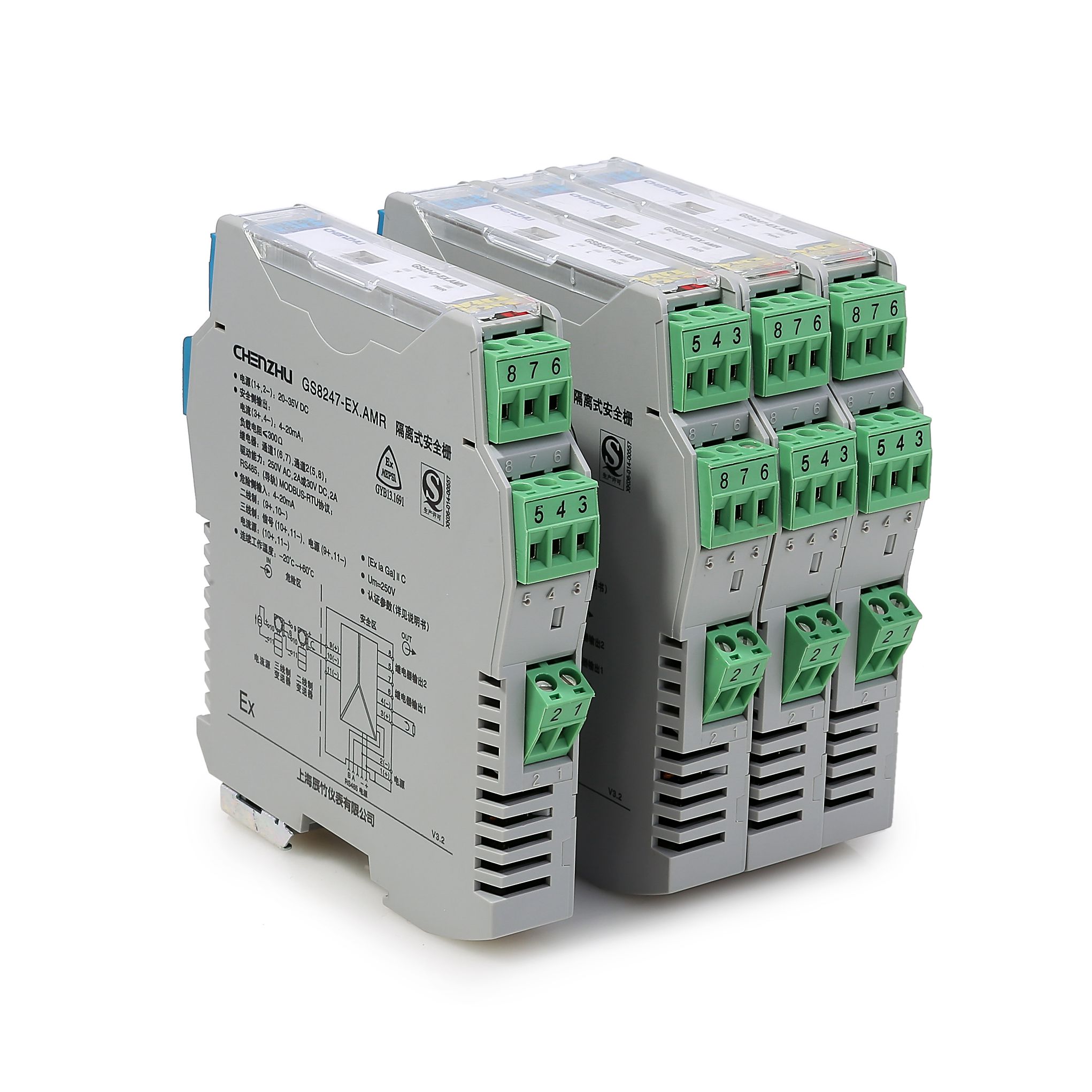

GS8247-EX.MR  AI,Relay output Isolated Barrier(1 channel)
This product Input signal 4~20mA,Output signal RS-485 and relay.provide isolated supplies for transmitter which located in hazardous area. at the same time, provide one channel of RS-485 bus output which based on MOIsolated barrier,with Single channel analog input and multi-functional output,Power connecting mode DIN Rail BUS or Terminal.
Number of channels:
1input/3outputs
Input signal:
4~20mA
Power Distribution:
15.5V/20mA
RS-485 Output:
Involve
Relay alarm output:
Involve
Power Connection Mode:
Terminal Power Supply
Bus Power Supply
GS8247-EX.MR
Product details
Technichal Data
Download
contrast
enquire

AI,Relay output Isolated Barrier(1 channel)

AI,Relay output Isolated Barrier(1 channel)



Product Name
 GS8247-EX.MR  Isolated Barrier
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal  4~20mA
EX symbol  [Ex ia Ga]IIC
Weight  Approx 150g
Field apparatus  2-wire transmitter,3-wire transmitter, current source


AI,Relay output Isolated Barrier(1 channel)AI,Relay output Isolated Barrier(1 channel)

AI,Relay output Isolated Barrier(1 channel)
