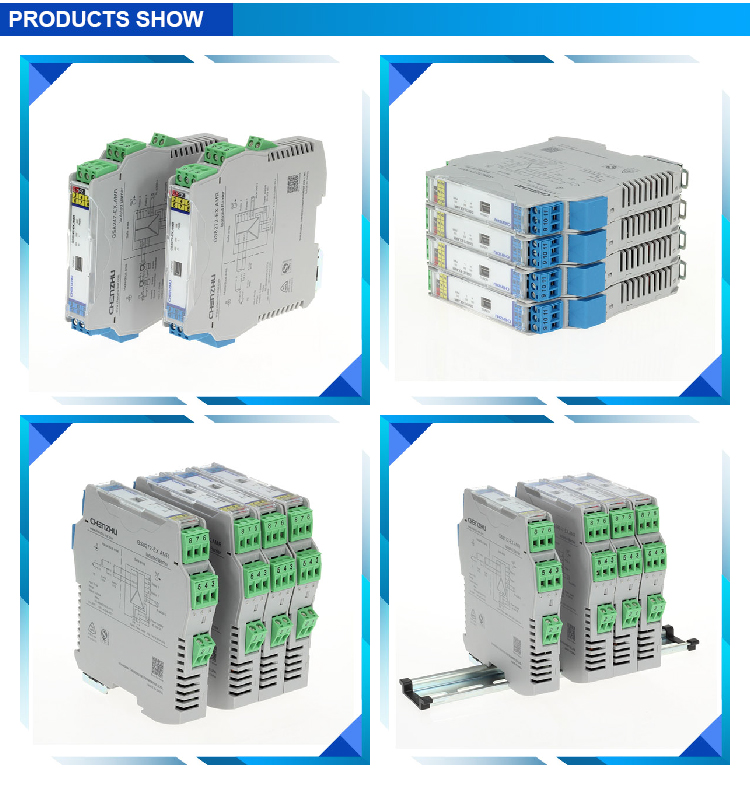

AI,Isolated Barrier(1 channel)
GS8247-EX.AM  AI,Isolated Barrier(1 channel)
This product Input signal 4~20mA,Output signal 4~20mA RS485.provide isolated supplies for transmitter which located in hazardous area. at the same time, provide one channel of RS-485 bus output which based on MODBUS-RTU protocal and two channels of relay alarm output.power supply and RS-485 can be connected with rail,Power connecting mode DIN Rail BUS or Terminal.
Number of channels:
1input/2output
Input signal:
4~20mA
Power Distribution:
15.5V/20mA
Analogue Output:
4~20mA
RS-485 Output:
Involve
Power Connection Mode:
Terminal Power Supply
Bus Power Supply
contrast
enquire
Generate PDF
GS8247-EX.AM
Product details
Download

AI,Isolated Barrier(1 channel)

AI,Isolated Barrier(1 channel)



Product Name
 GS8247-EX.AM  Isolated Barrier
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal  4~20mA
EX symbol  [Ex ia Ga]IIC
Weight  Approx 150g
Field apparatus  2-wire transmitter,3-wire transmitter, current source


AI,Isolated Barrier(1 channel)AI,Isolated Barrier(1 channel)

AI,Isolated Barrier(1 channel)





Technichal Data
