AO,Isolated Barrier(1 channel)

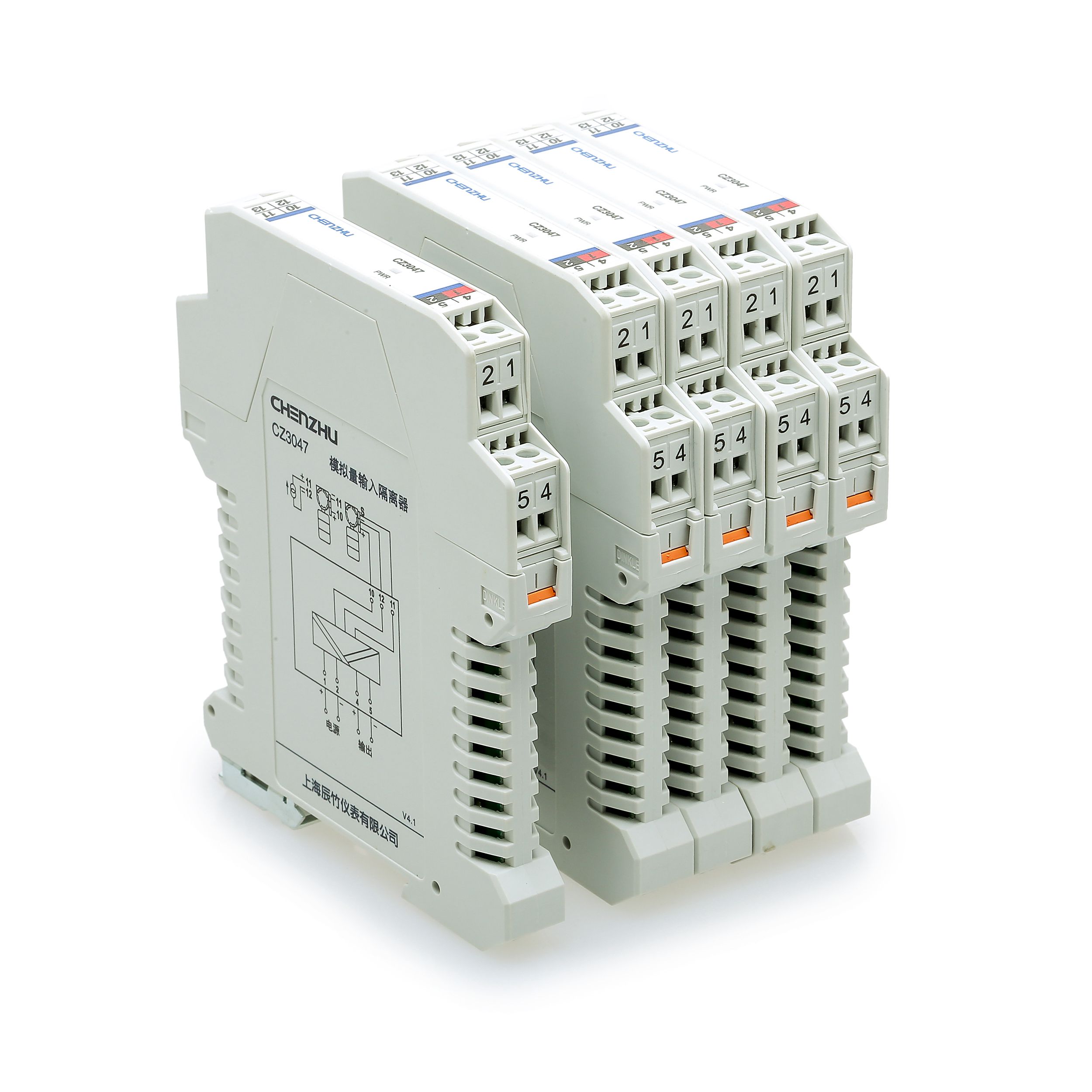

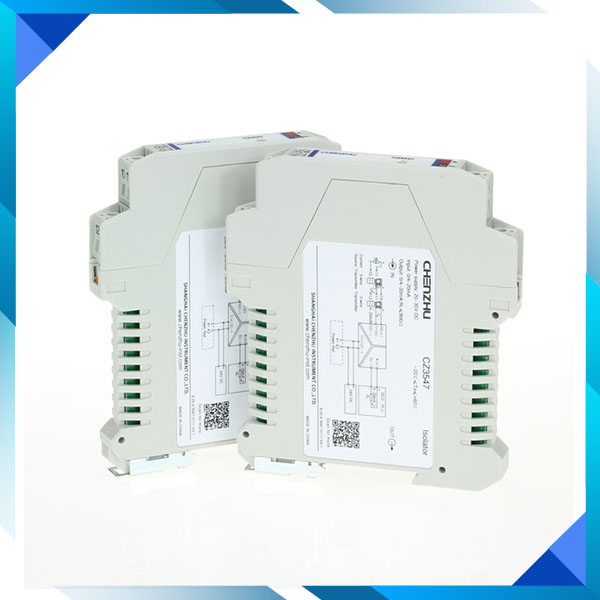

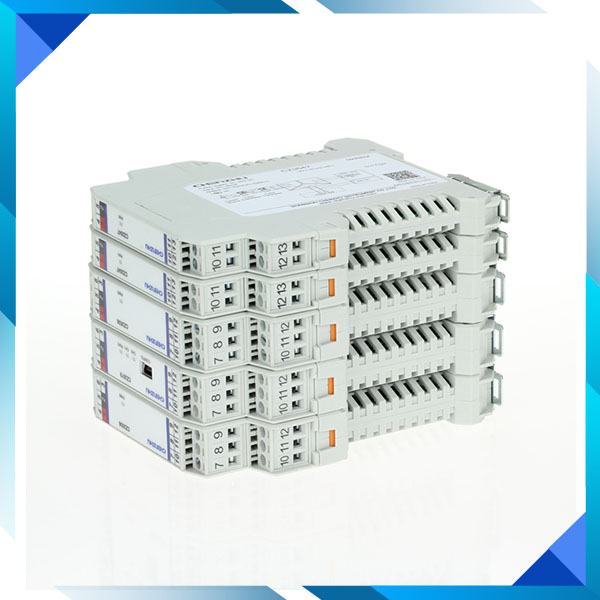

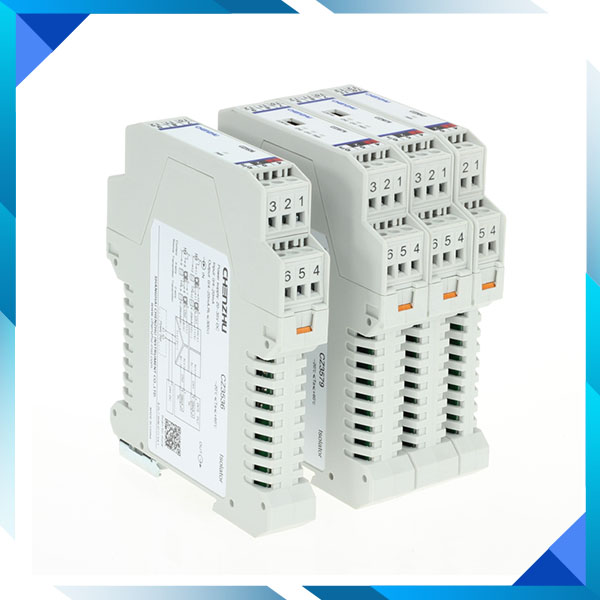

CZ3567  AO,Isolated Barrier(1 channel)
Can drive the internal resistance of up to 800 Ω valve positioner, 4 ~ 20 ma, or 0 to 20 ma, guarantee the accuracy, conversion accuracy is higher than five over ten thousand (0.05%) f.s.
Number of channels:
1input/1output
Input signal:
0/4~20mA
Output signal:
0/4~20mA
0/1~5V
Power Supply Mode:
24VDC
Power Connection Mode:
Bus Power Supply
CZ3567
Product details
Technichal Data
Download
contrast
enquire

AO,Isolated Barrier(1 channel)

AO,Isolated Barrier(1 channel)



Product Name  CZ3567 Isolator
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal  0~20mA;4~20mA
Output signal
 Current;Voltage
Weight  Approx 150g
Field apparatus  2-wire valve positioner,electric converter




AO,Isolated Barrier(1 channel)

AO,Isolated Barrier(1 channel)

AO,Isolated Barrier(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
EMC data
Operating conditions
Connection data
Installation
Generate PDF
Technichal Data
General
Number of channels 1input/1output
Dielectric strength 1500V AC;1minute(among power supply ,input and output )
Output accuracy(20°C) 0.1%F.S.
Temperature drift 0.005%F.S./℃
Response time Reach 90% of final value in 0.5ms
Insulation resistance ≥100MΩ;500V DC(among power supply,input,output and the shell)
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
Weight Approx 150g
Field apparatus 2-wire Valve Positioner,Electric Converter
Input data
Input signal 0~20mA;4~20mA
Voltage drop ≤2V
Max. input current <30mA
Output data
Output signal Current;Voltage
Output current 0~20mA;4~20mA
Current output load resistance RL≤800Ω
Output voltage 0~5V;1~5V
Voltage output load resistance RL≥330kΩ
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤40mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal
Dimensions
Depth 114.5mm
Height 99.0mm
Width 12.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour white
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class A
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
