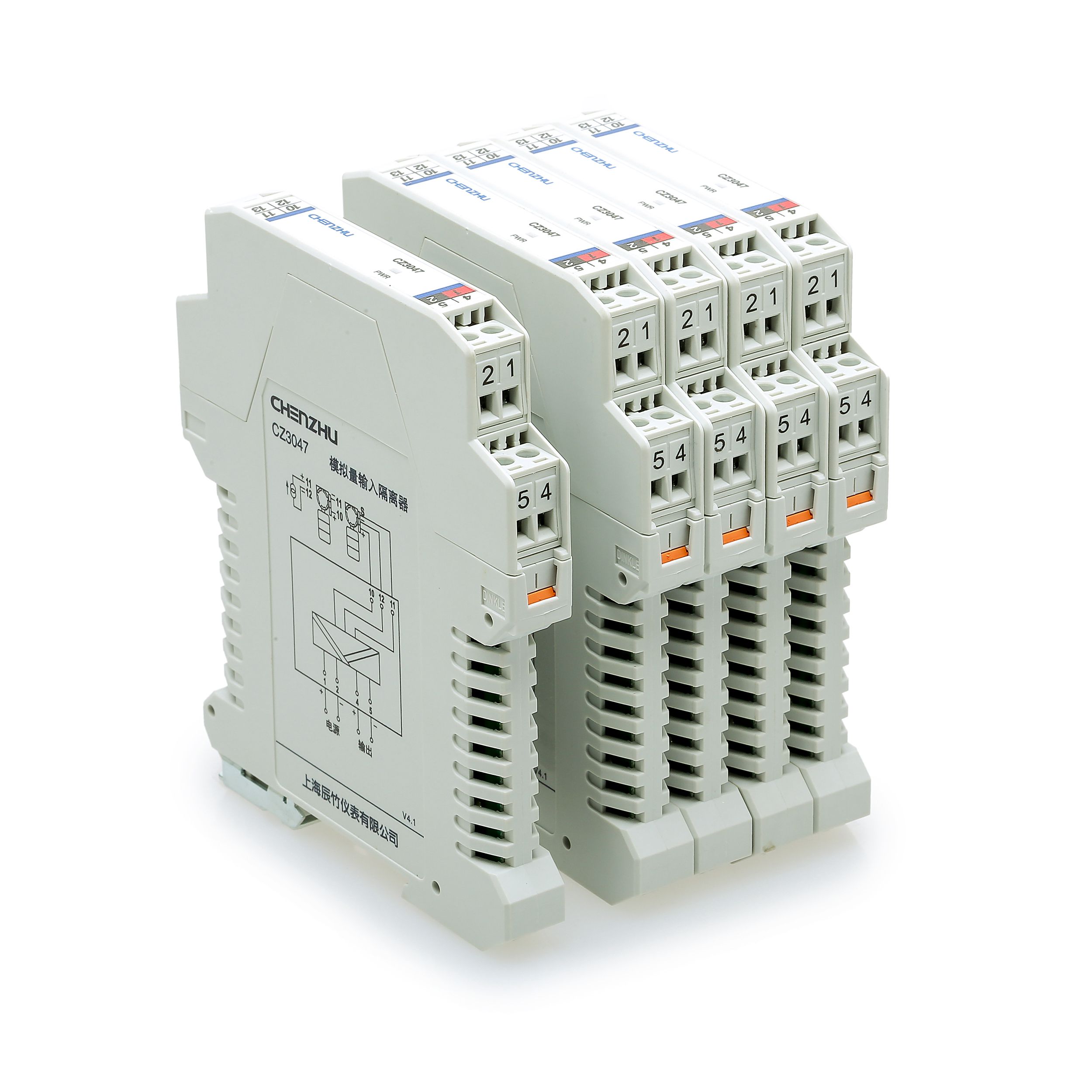

VI,Isolated Barrier(1 channel)
GS8589-EX.11  VI,Isolated Barrier(1 channel)
Voltage input Isolated Barrier, transfer current signal generated by transmitter from a hazardous area to a safe area.The product requires independent power supply, power supply, input and output three isolation.
Number of channels:
1input/1output
Input signal:
0~5V
1~5V
0~10V
Power Distribution:
10V/20mA
15V/20mA
Output signal:
0~5V
1~5V
0~10V
0~20mA
4~20mA
Power Supply Mode:
24VDC
Power Connection Mode:
Terminal Power Supply
Bus Power Supply
GS8589-EX.11
Product details
Technichal Data
Download
contrast
enquire

VI,Isolated Barrier(1 channel)

VI,Isolated Barrier(1 channel)


Product Name   GS8589-EX.11
Number of channels  1input/1output
Supply voltae(Ue)  20~35V DC
Input signal  0~5V;1~5V;0~10V
Output signal  0~20mA;4~20mA;0~5V;1~5V;0~10V
Weight  Approx 150g
Field apparatus  Voltage output device; Current source output device

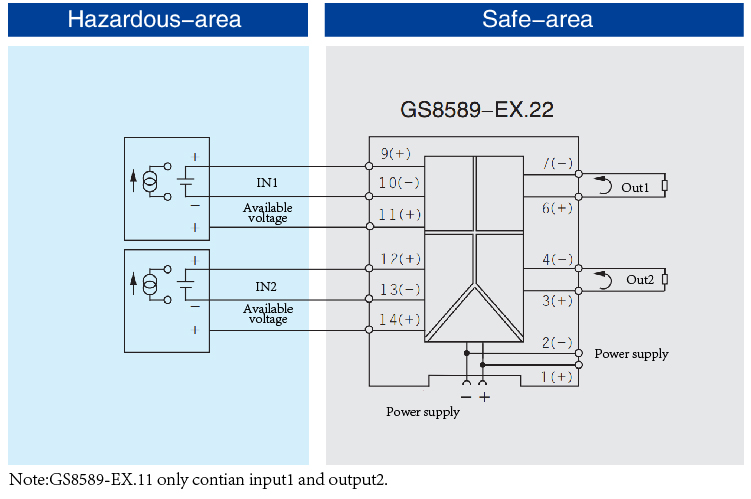

VI,Isolated Barrier(1 channel)

VI,Isolated Barrier(1 channel)

VI,Isolated Barrier(1 channel)

VI,Isolated Barrier(1 channel)


GS8589-EX, EX-CN-NEPSI-

General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Operating conditions
Connection data
Installation
Generate PDF
Technichal Data
General
Number of channels 1input/1output
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Output accuracy(20°C) 0.1%F.S.
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 0.1s
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC
Weight Approx 150g
Field apparatus Voltage Output Device;Current Source Output Device
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal 0~5V;1~5V;0~10V
Input impedance ≥100kΩ
Distribution voltage 10V/20mA;15V/20mA
Output data
Output signal 0~20mA;4~20mA;0~5V;1~5V;0~10V
Current output load resistance RL≤300Ω
Voltage output load resistance RL≥20kΩ
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤100mA (at 24Vdc supply,15V/20mA distribution)
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal
Dimensions
Depth 118.9mm
Height 106.0mm
Width 17.5mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 13.7V(9,10);24.2V(10,11)
Max.output current Io 8mA(9,10);143.8mA(10,11)
Max.output power Po 28mW(9,10);870mW(10,11)
IIC Max. external inductance Lo 250mH(9,10);1.5mH(10,11)
IIC Max. external capacitance Co 0.79μF(9,10);90nF(10,11)
IIB Max. external inductance Lo 750mH(9,10);4.5mH(10,11)
IIB Max. external capacitance Co 5.0μF(9,10);0.70μF(10,11)
IIA Max. external inductance Lo 1000mH(9,10);12mH(10,11)
IIA Max. external capacitance Co 18.1μF(9,10);2.33μF(10,11)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class A
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
