Frequency input,Isolated Barrier(1 channel)
GS8552-EX.12  Frequency input,Isolated Barrier(1 channel)
12V level,It can provide the transmitter located in the hazardous area a separate power,The product requires independent power supply, power supply, transfer current signal generated by transmitter from a hazardous area to a safe area, can also transfer current signal from a safe area to a hazardous area and drive equipments like actuator in field. input and output three isolation.
contrast
enquire
Generate PDF
GS8552-EX.12
Product details
Download
Technichal Data
General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Operating conditions
Connection data
Installation
Others

Frequency input,Isolated Barrier(1 channel)

Frequency input,Isolated Barrier(1 channel)

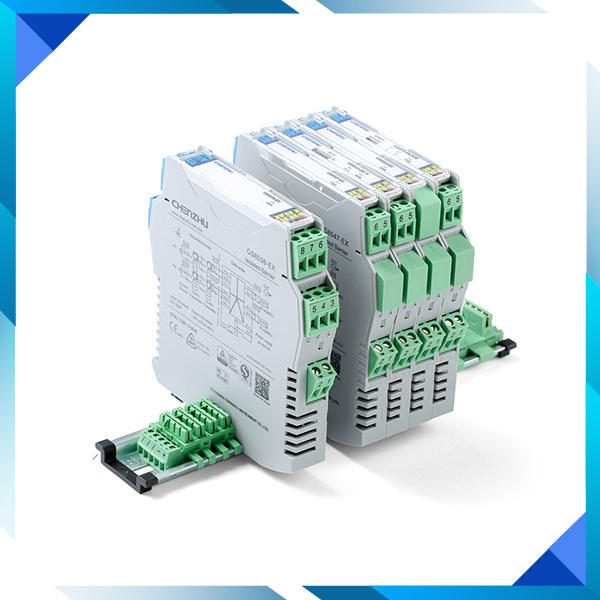

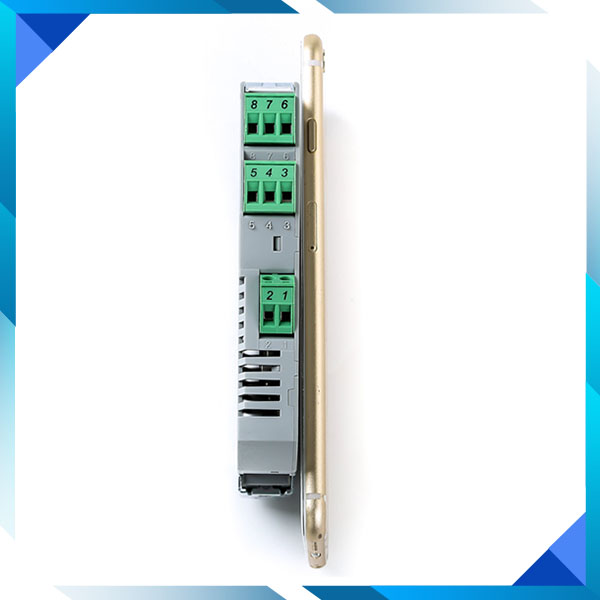

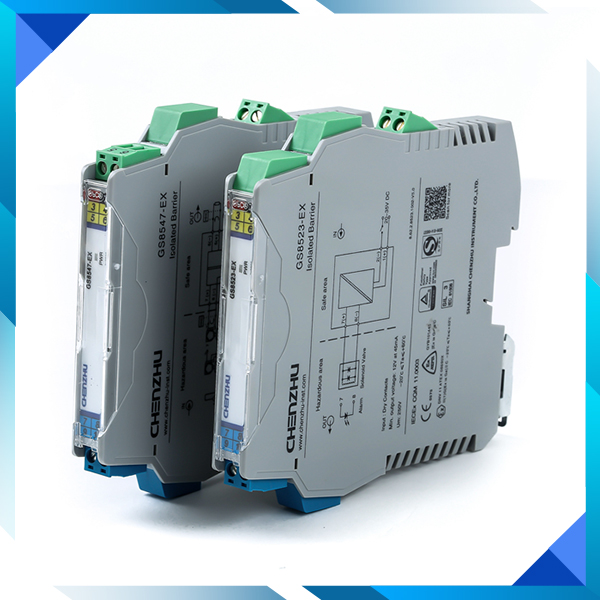

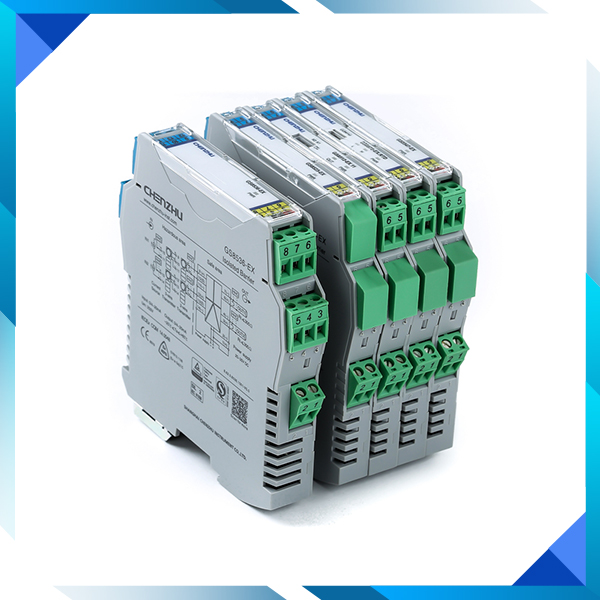

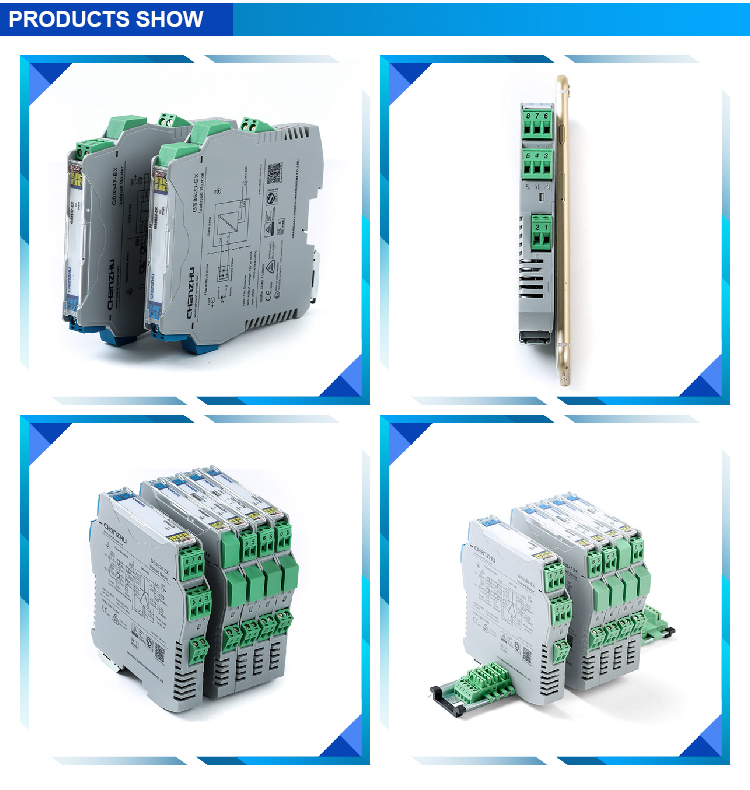

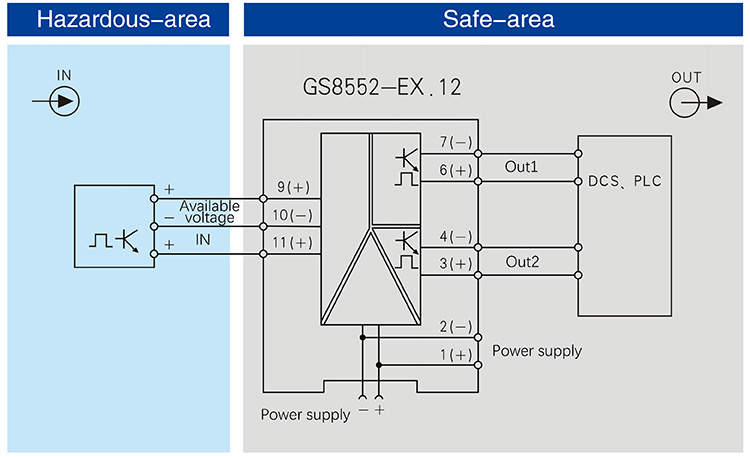

Product Name GS8552-EX.12 Isolated Barrier
Number of channels 1input/2outputs
Supply voltage(Ue) 20~35V DC
Input signal NPN;PNP;Level signal
Output signal 5V level;12V level;transistor
Weight Approx 150g
Field apparatus 2-wire Frequency signal source,3-wire Frequency signal source

Frequency input,Isolated Barrier(1 channel)Frequency input,Isolated Barrier(1 channel)


Frequency input,Isolated Barrier(1 channel)

Frequency input,Isolated Barrier(1 channel)


Technichal Data
General
Number of channels 1input/2outputs
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC
Weight Approx 150g
Field apparatus 2-wire Frequency signal source,3-wire Frequency signal source
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal NPN;PNP;Level signal
Open circuit voltage ≤15V
Distribution voltage Voltage: ≥9V at 20mA
Level signal input VH≥4V;VL≤1V,frequency≤50kHz
NPN input Frequency≤20kHz
PNP input Frequency≤20kHz
Output data
Output signal 5V level;12V level;transistor
Transistor output Transistor collector output:High level Vcc;Low level≤2.5V(drive current≤10mA);Transistor emitter output:High level Vcc-2.5V;Low level≤0.5V(drive current≤10mA);Note:"Vcc"is external power supply of output,Vcc≤40V
Level signal output 12V series PLC,DCS high level 9V≤VH≤12V,5V series PLC,DCS high level 4.5V≤VH≤5V,low level VL≤0.5V
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤60mA (at 24Vdc supply,12V/20mA distribution)
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal

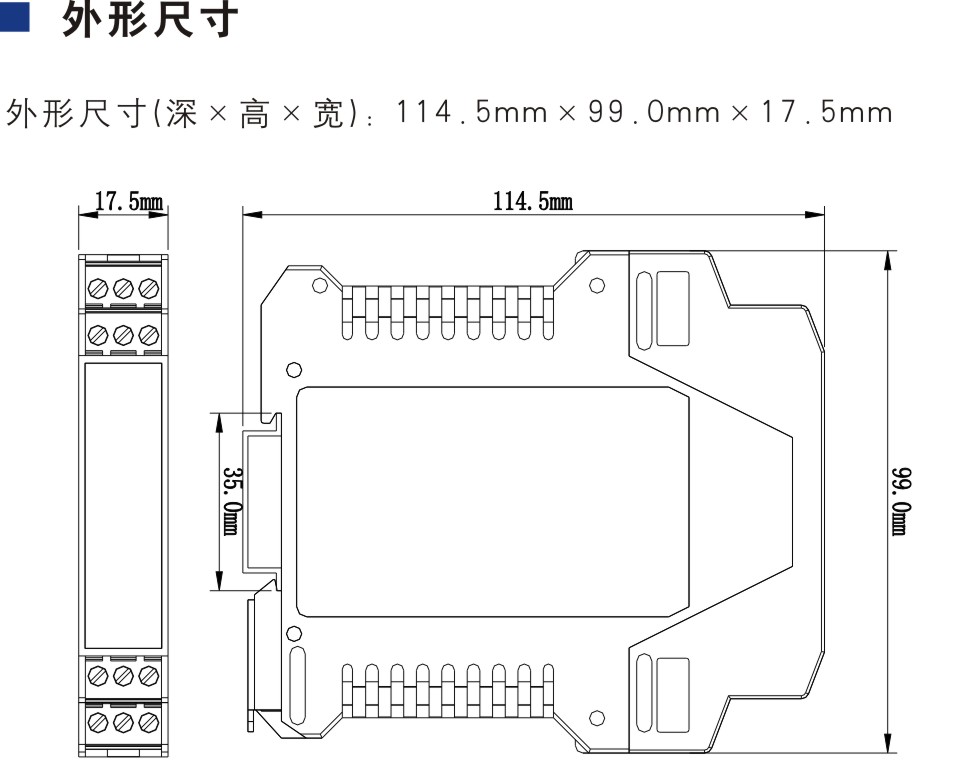

Dimensions
Depth 118.9mm
Height 106.0mm
Width 17.5mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 15.5V(9,10,11)
Max.output current Io 110mA(9,10,11)
Max.output power Po 427mW(9,10,11)
IIC Max. external inductance Lo 2.0mH(9,10,11)
IIC Max. external capacitance Co 0.50μF(9,10,11)
IIB Max. external inductance Lo 6.0mH(9,10,11)
IIB Max. external capacitance Co 3.1μF(9,10,11)
IIA Max. external inductance Lo 16.0mH(9,10,11)
IIA Max. external capacitance Co 12.5μF(9,10,11)
Max. internal capacitance Ci 25nF(9,10,11)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class A
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Others
Switch setting function Type of input signal(level transistor)can be changed through setting K1,K2
