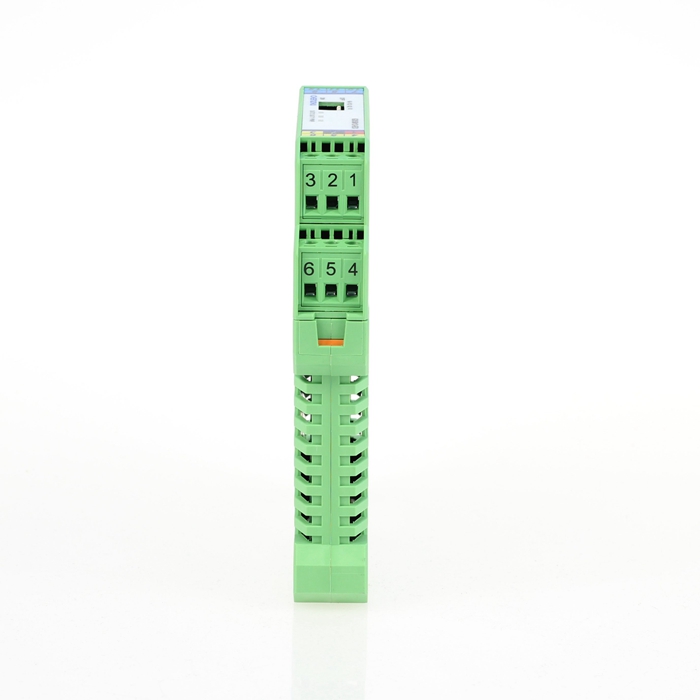

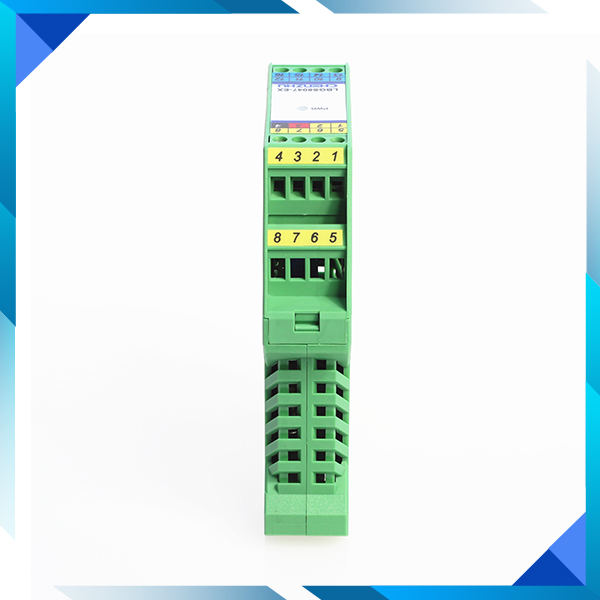

AI,Isolated Barrier(1 channel)
LBGS8035-EX  AI,Isolated Barrier(1 channel)
1input/2outputs,AI,Isolated Barrier.Field apparatus:2-wire transmitter,3-wire transmitter, current source.Input signal:4~20mA.Output signal:4~20mA;1~5V.Supply voltage(Ue):20~35V DC.Independent power supply,Approx 100g.
Number of channels:
1input/2outputs
Input signal:
4~20mA
power distribution:
15.5V/20mA
Output signal:
4~20mA
1~5V
Power Supply Mode:
24VDC
Power Connection Mode:
Terminal Power Supply
Special Function:
Surge protection function
LBGS8035-EX
Product details
Technichal Data
Download
contrast
enquire

AI,Isolated Barrier(1 channel)

AI,Isolated Barrier(1 channel)



Product Name
 LBGS8035-EX  Isolated Barrier
Number of channels  1input/2outputs
Supply voltage(Ue)  20~35V DC
Input signal  4~20mA
Output signal  4~20mA;1~5V
Weight
 Approx 100g

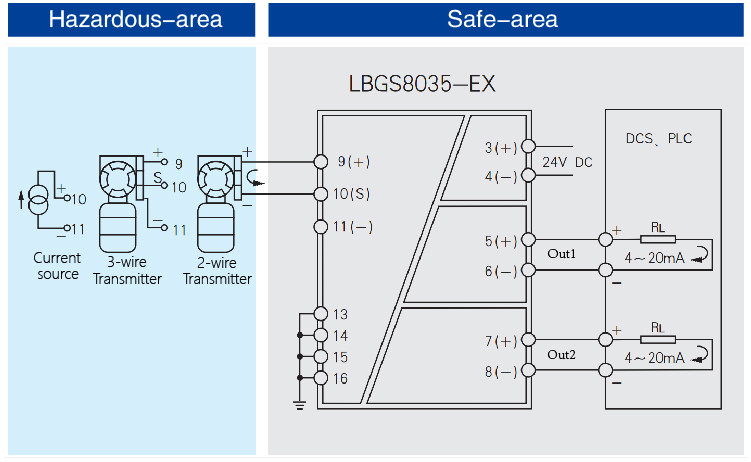

Field apparatus
 2-wire transmitter,3-wire transmitter, current source


AI,Isolated Barrier(1 channel)AI,Isolated Barrier(1 channel)


AI,Isolated Barrier(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
Surge-protect properties
EMC data
Operating conditions
Connection data
Installation
Generate PDF
Technichal Data
General
Number of channels 1input/2outputs
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Output accuracy(20°C) 0.1%F.S.
Temperature drift 0.005%F.S./℃
Response time Reach 90% of final value in 3ms
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC [Ex iaD]
Weight Approx 100g
Field apparatus 2-wire Transmitter,3-wire Transmitter,Current Source
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal 4~20mA
Open circuit voltage ≤26V
Distribution voltage Voltage: ≥15.5V at 20mA
Output data
Output signal 4~20mA;1~5V
Current output load resistance RL≤300Ω;RL≤550Ω
Voltage output load resistance RL≥20kΩ
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤100mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode Terminal

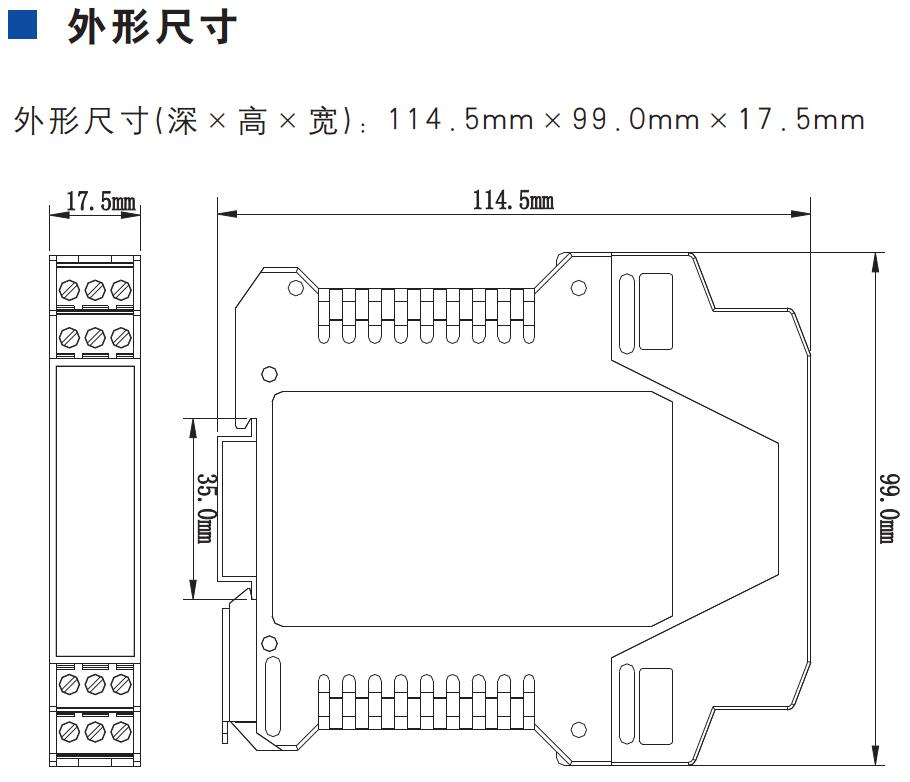

Dimensions
Depth 114.5mm
Height 99.0mm
Width 22.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour green
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20 [Ex iaD] Comply with standard: GB 12476.1、GB 12476.4
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 28V(9,10,11)
Max.output current Io 93mA(9,10,11)
Max.output power Po 651mW(9,10,11)
IIC Max. external inductance Lo 4.2mH(9,10,11)
IIC Max. external capacitance Co 0.083μF(9,10,11)
IIB Max. external inductance Lo 12.6mH(9,10,11)
IIB Max. external capacitance Co 0.65μF(9,10,11)
IIA Max. external inductance Lo 33.6mH(9,10,11)
IIA Max. external capacitance Co 2.15μF (9,10,11)
Surge-protect properties
Rated discharge current In(8/20us) 10kA
Voltage protection level Up 60V
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1
Surge immunity According to:IEC 61326-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range Non-intrinsically safe part 0.5~2.5mm²;Intrinsically safe part 1.5~2.5mm²
Conductor cross section flexible range Non-intrinsically safe part 0.5~2.5mm²;Intrinsically safe part 1.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
