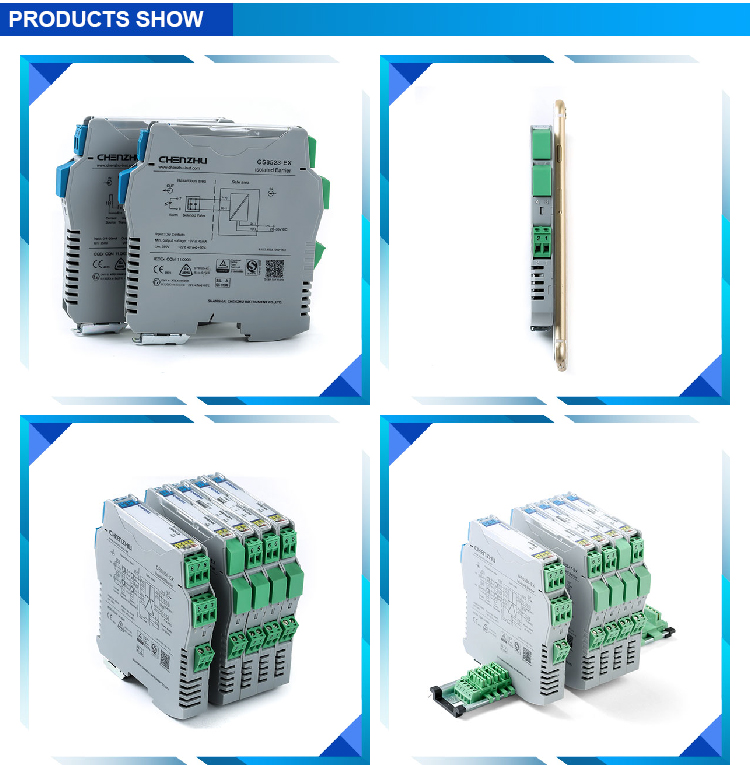

GS8523-EX.I  Do,Relay output Isolated Barrier(1 channel)
Digital output isolated barrier, enables instrinsically safe devices such as solenoid valves, alarm transmitters and some other low-power loads,located in hazardous area to be controlled from safe area. The product should be supplied power independently. Power, input and output are isolated each other.
Number of channels:
1input/1output
Input signal:
Dry Contact/Transistor
Output Signal:
12V/45mA
Power supply Mode:
24VDC
Power Connection Mode :
Bus Power Supply
Terminal Power Supply
GS8523-EX.I
Product details
Technichal Data
Download
contrast
enquire

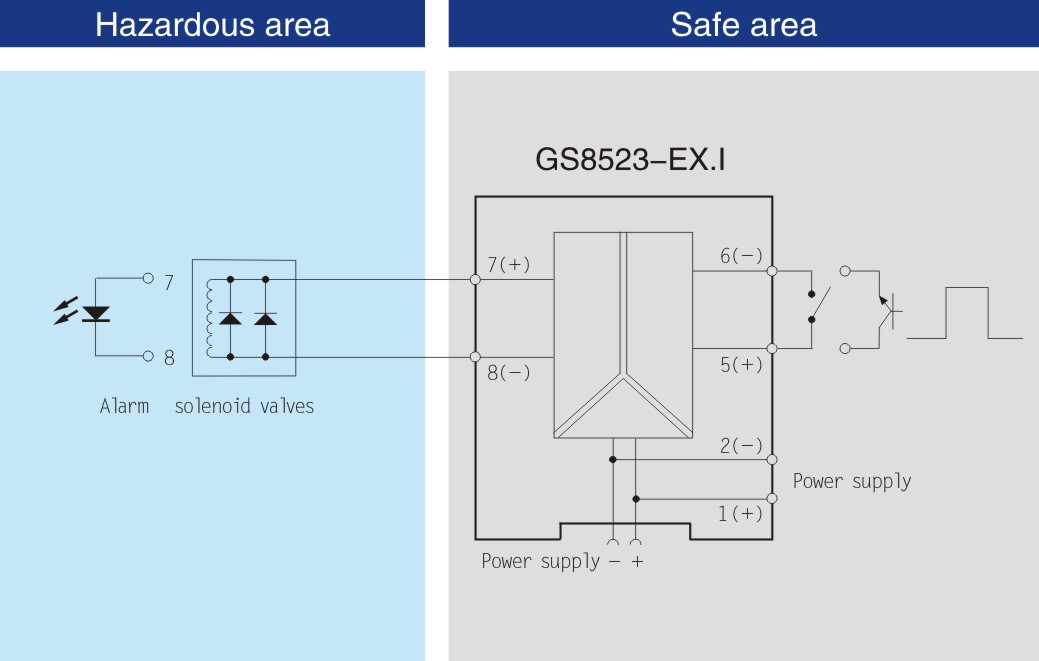

Do,Relay output Isolated Barrier(1 channel)


Do,Relay output Isolated Barrier(1 channel)


Product Name  GS8523-EX.I  Isolated Barrier
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal  switch
Output voltage  Open Circuit Voltage: 22V~24V Minimum output voltage:  ≥12V at  45mA
Field apparatus  Solenoid valves,alarm transmitters

Do,Relay output Isolated Barrier(1 channel)

Do,Relay output Isolated Barrier(1 channel)


Do,Relay output Isolated Barrier(1 channel)

Do,Relay output Isolated Barrier(1 channel)


GS8523-EX.I, EX-CN-NEPSI-

GS8523-EX.I,EX-IECEx

GS8523-EX.I,TUV SIL

General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Operating conditions
Connection data
Installation
Generate PDF
Technichal Data
General
Driving current 12V/45mA
Number of channels 1input/1output
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Response time ≤20ms
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268), IEC 61326-3-1
EX marking [Ex ia Ga]IIC
Weight Approx 100g
Field apparatus Solenoid valves,alarm transmitters
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal Switch

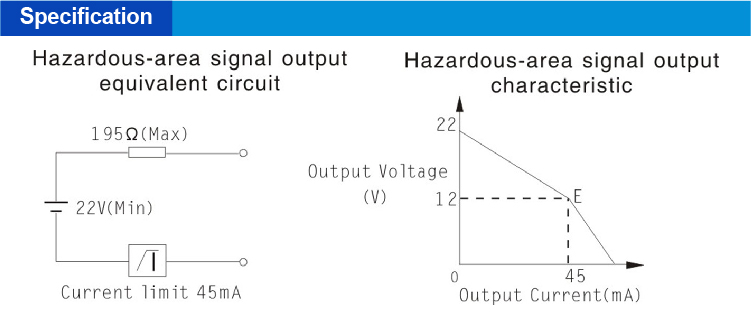

Output data
Output voltage Open Circuit Voltage: 22V~24V Minimum output voltage: ≥12V at 45mA
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption (at 24V DC supply, 45mA output)≤80mA
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal

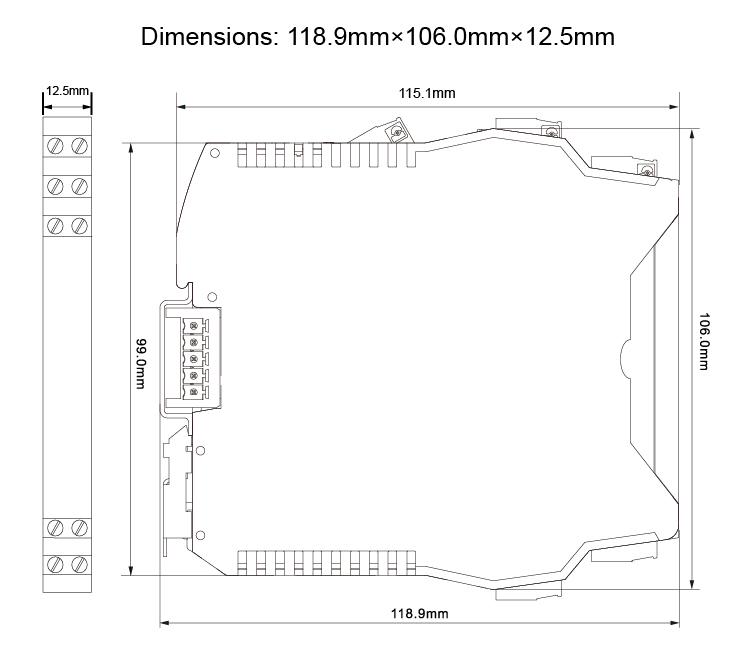

Dimensions
Depth 118.9mm
Height 106.0mm
Width 12.5mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
Product approvals
Approvals IECEx;NEPSI;
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20
IECEx [Ex ia Ga] IIC Comply with standard: IEC 60079-0、IEC 60079-11、IEC 60079-26
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 25V(7,8)
Max.output current Io 140mA(7,8)
Max.output power Po 875mW(7,8)
IIC Max. external inductance Lo 1.5mH(7,8)
IIC Max. external capacitance Co 0.11μF(7,8)
IIB Max. external inductance Lo 4.5mH(7,8)
IIB Max. external capacitance Co 0.84μF(7,8)
IIA Max. external inductance Lo 12.0mH(7,8)
IIA Max. external capacitance Co 2.97μF(7,8)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-3-1
Surge immunity According to:IEC 61326-3-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-3-1
Electrostatic discharge immunity According to:IEC 61326-3-1
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-3-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz According to:IEC 61326-3-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
