GS8519-EX.11  1input,1output DI,transistor output Isolated Barrier
1input,1output DI,transistor output isolated barrier,transfer digital signals(switch or NAMUR proximity detectors) from a hazardous area to a safe area. Switches are provided to select phase reversal and to enabled the line fault detection. The product needs an independent power supply.
Number of channels:
1input/1output
Output signal:
Transistor
12V electrical level
Input signal:
Dry contact/proximity switch
Power Supply Mode:
24VDC
Power Connection Mode :
Terminal Power Supply
Bus Power Supply
Special Function :
-
SIL Level:
-
contrast
enquire
Generate PDF
GS8519-EX.11
Product details
Download
Technichal Data
General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Operating conditions
Connection data
Installation
Others

1input,1output DI,transistor output Isolated Barrier

1input,1output DI,transistor output Isolated Barrier


Product Name  GS8519-EX.11  Isolated Barrier
Number of channels  1 input/1 output
Input signal  Switch or NAMUR Proximity Detector
Output signal  Transistor
Ex-marking  [Ex ia Ga]ⅡC
Field apparatus  Dry contact or DIN19234 standard NAMUR proximity switch  input field devices (including the intrinsically safe type press  ure switch, temperature switches, liquid level switch).

1input,1output DI,transistor output Isolated Barrier

1input,1output DI,transistor output Isolated Barrier

1input,1output DI,transistor output Isolated Barrier

1input,1output DI,transistor output Isolated Barrier

1input,1output DI,transistor output Isolated Barrier


Technichal Data
General
Number of channels 1input/1output
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC [Ex iaD]
Weight Approx 150g
Field apparatus Dry contact or DIN19234 standard NAMUR proximity switch input field devices (including the intrinsically safe type pressure switch, temperature switches, liquid level switch)
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal Switch or NAMUR Proximity Detector
Open circuit voltage ≈8V
Short circuit current ≈8mA
Input frequency range ≤5kHz
Output data
Load type resistive load
Output signal Transistor
Transistor output Transistor collector output: High level: Vcc Low level: ≤2.5V(at drive current=10mA,Vcc=24V) Max drive current≤40mA,load resistance:2kΩ≤RL≤20kΩ Transistor emitter output: High level: Vcc-2.5V Low level: ≤0.5V(at drive current=10mA,Vcc=24V) Max drive current≤40mA, load resistance: 2kΩ≤RL≤10kΩ Note:”Vcc” is external power supply of output, Vcc≤40V
Level signal output Voltage level output: 4.5V≤VH≤12V,VL≤0.5V;Drive current: ≤10mA,load resistance≥1kΩ
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption (at 24Vdc supply, transistor turn on)≤40mA
Power supply mode Independent power supply
Power connecting mode DIN Rail BUS;Terminal

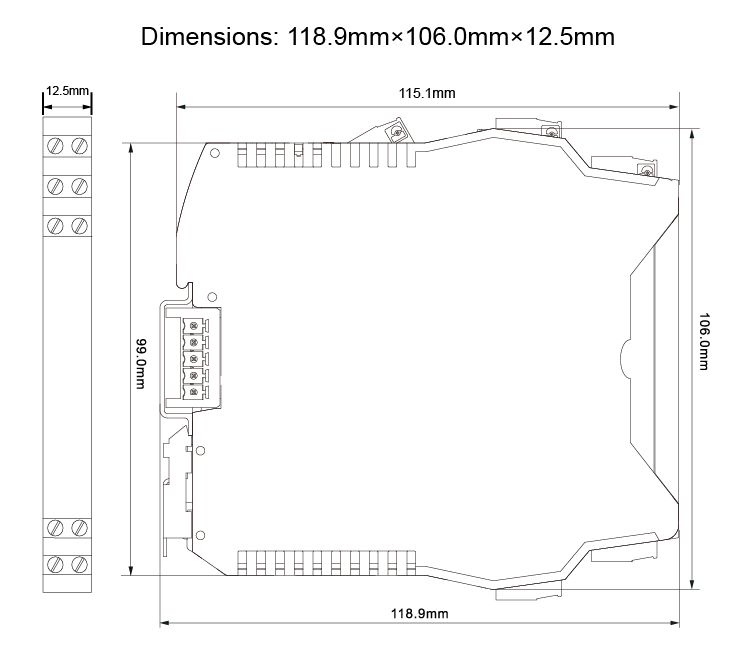

Dimensions
Depth 118.9mm
Height 106.0mm
Width 12.5mm
Housing
Brand Phoenix
Material PC
Degree of protection IP20
Flammability rating UL94/V0
Colour gray
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ia Ga] IIC [Ex iaD] Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20 Comply with standard GB 12476.1、GB 12476.4
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 10.5V(7,8)
Max.output current Io 14mA(7,8)
Max.output power Po 37mW(7,8)
IIC Max. external inductance Lo 165mH(7,8)
IIC Max. external capacitance Co 2.4μF(7,8)
IIB Max. external inductance Lo 495mH(7,8)
IIB Max. external capacitance Co 16.8μF(7,8)
IIA Max. external inductance Lo 1000mH(7,8)
IIA Max. external capacitance Co 75.0μF(7,8)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class B
Surge immunity According to:IEC 61326-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1;Class A
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Others
Input and output characteristics If input>2.1mA, output transistor is turned on, with yellow LED ON. If input<1.2mA, output transistor is turned off, with yellow LED OFF.

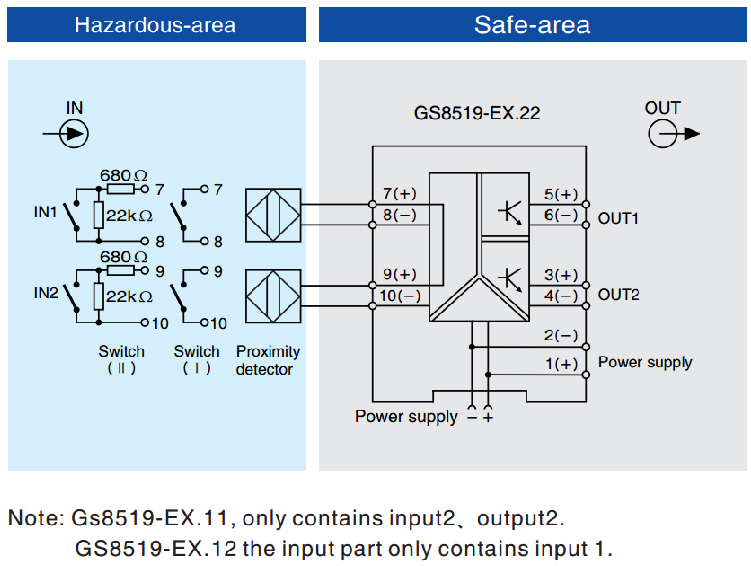

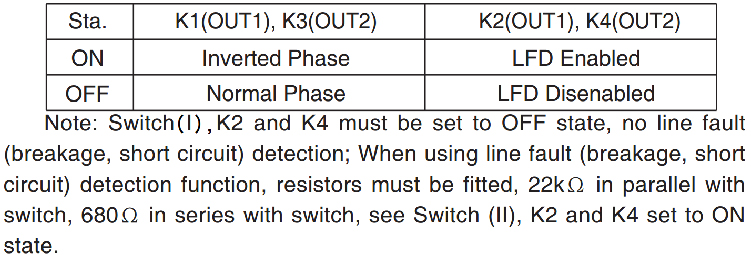

Switch setting function Switch(I),K2 and K4 must be set to OFF state, no line fault (breakage, short circuit) detection; When using line fault (breakage, short circuit) detection function, resistors must be fitted, 22kΩ in parallel with switch, 680Ω in series with switch, see Switch (II), K2 and K4 set to ON state.
