DI,Transistor Output Isolated Barrier(1 channel)

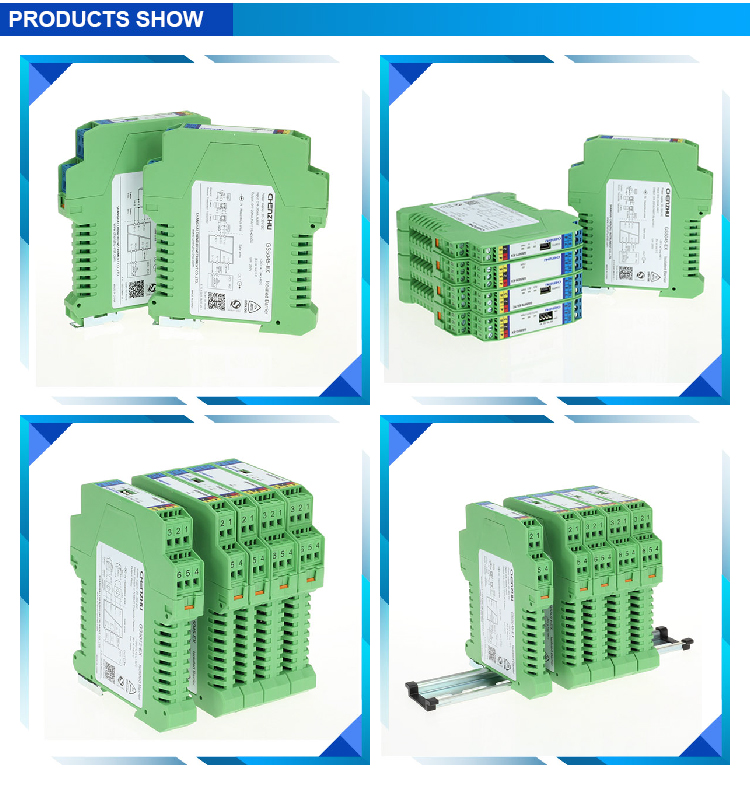

GS5013-EX  DI,Transistor Output Isolated Barrier(1 channel)
Number of channels:
1input/1output
Output signal:
Relay
Input signal:
Dry contact/proximity switch
Power Supply Mode:
24VDC
Power Connection Mode :
Terminal Power Supply
GS5013-EX
产品详情
产品参数
下载
click to consult
加入对比
加入询价单

DI,Transistor Output Isolated Barrier(1 channel)

DI,Transistor Output Isolated Barrier(1 channel)


Product Name  GS5013-EX  Isolated Barrier
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal  Switch or NAMUR Proximity Detector
Output signal   Transistor
Ex-marking  [Ex ia Ga]IIC
Field apparatus  Dry contact or DIN19234 standard NAMUR proximity switch input field devices (including the intrinsically safe type pressure switch, temperature switches, liquid level switch)


DI,Transistor Output Isolated Barrier(1 channel)

DI,Transistor Output Isolated Barrier(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Operating conditions
Connection data
Installation
Others
产品参数
General
Number of channels 1input/1output
Dielectric strength Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC
Insulation resistance Between non-intrinsically safe part and intrinsically safe part≥100MΩ,Between power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC [Ex iaD]
Weight Approx 150g
Field apparatus Dry contact or DIN19234 standard NAMUR proximity switch input field devices (including the intrinsically safe type pressure switch, temperature switches, liquid level switch)
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data
Input signal Switch or NAMUR Proximity Detector
Open circuit voltage ≈8V
Short circuit current ≈8mA
Input frequency range ≤5kHz
Output data
Load type resistive load
Output signal Transistor
Transistor output Transistor collector output: High level: Vcc Low level: ≤2.5V(at drive current=10mA,Vcc=24V) Max drive current≤40mA,load resistance:2kΩ≤RL≤20kΩ Transistor emitter output: High level: Vcc-2.5V Low level: ≤0.5V(at drive current=10mA,Vcc=24V) Max drive current≤40mA, load resistance: 2kΩ≤RL≤10kΩ Note:”Vcc” is external power supply of output, Vcc≤40V
Level signal output Voltage level output: 4.5V≤VH≤12V,VL≤0.5V;Drive current: ≤10mA,load resistance≥1kΩ
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption (at 24Vdc supply, transistor turn on)≤40mA
Power supply mode Independent power supply
Power connecting mode Terminal

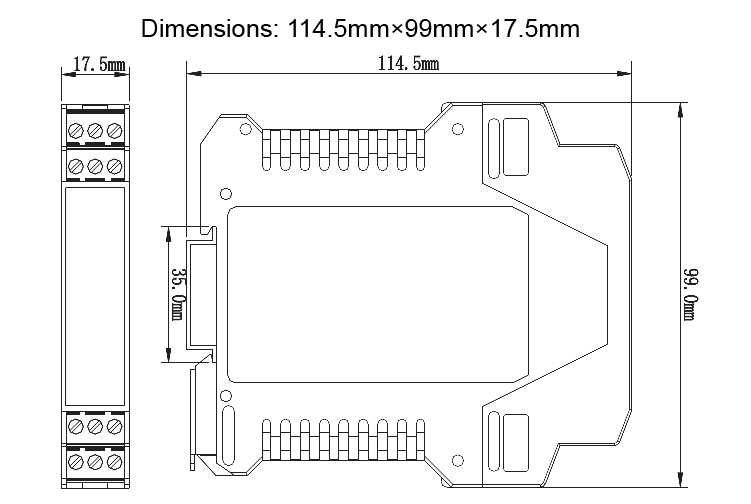

Dimensions
Depth 114.5mm
Height 99.0mm
Width 17.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour green
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20 [Ex iaD] Comply with standard: GB 12476.1、GB 12476.4
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 10.5V(7,8)
Max.output current Io 14mA(7,8)
Max.output power Po 37mW(7,8)
IIC Max. external inductance Lo 165mH(7,8)
IIC Max. external capacitance Co 2.4μF(7,8)
IIB Max. external inductance Lo 495mH(7,8)
IIB Max. external capacitance Co 16.8μF(7,8)
IIA Max. external inductance Lo 1000mH(7,8)
IIA Max. external capacitance Co 75.0μF(7,8)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1
Surge immunity According to:IEC 61326-1
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1;Class A
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Others
Input and output characteristics If input > 2.1mA, output relay is energized, with yellow LED ON. If input < 1.2mA, output relay is de-energized,with yellow LED OFF.
Switch setting function Switch input, if need LFD function, 10KΩ should in parallel with switch.
