DIN Rail Tpye Power Supply 240W/24V Output
CZP-DRA-240-24  DIN Rail Tpye Power Supply 240W/24V Output
Designed for building automation application,Safety Function:Overvoltage /Overload/Overcurrent/Overtemperature,Efficiency > 90%,Wide Range mounting;Aluminum Frame,5 years warranty.
Nominal Output Voltage:
24V
max. Load Current:
10A
CZP-DRA-240-24
Product details
Technichal Data
Download
contrast
enquire

DIN Rail Tpye Power Supply 240W/24V Output

DIN Rail Tpye Power Supply 240W/24V Output



Product Name  CZP-DRA-240-24 Power Supply
Adjustment Output Voltage Range  24~28VDC
max. Load Current  10A
Power Factor  0.99/0.95
Adjustment Input Voltage Range  85~264V AC or 120~370V DC
Max. Output Power  240W


DIN Rail Tpye Power Supply 240W/24V Output

DIN Rail Tpye Power Supply 240W/24V Output

DIN Rail Tpye Power Supply 240W/24V Output

DIN Rail Tpye Power Supply 240W/24V Output


Output Data
Input Data
Safety Function
Dimensions
Housing
Environmental
General
Standard/Specification
Generate PDF
Technichal Data
Output Data
Max. Output Power 240W
Nominal Output Voltage 24V
Adjustment Output Voltage Range 24~28VDC
max. Load Current 10A
min. Current 0.1A
Eficiency 0.92
Ripple/Noise 180 mVpp,max
Line Regulation 0.01
Load Regulation 0.01
Hold-up time 20 ms @ full load, 230 VAC
Input Data
Nominal Input Voltage 100~240V AC
Adjustment Input Voltage Range 85~264V AC or 120~370V DC
Frequency 50~60Hz
Power Factor 0.99/0.95
Input Current 1.7/0.85A
Leakage Current 0.5/1.1 mA (ACIN 100V/240V 60Hz lo=100%)
Inrush Current ACIN100V:20A (lo=100% Cold-Start); ACIN200V:40A (lo=100% Cold-Start)
Safety Function
Overvoltage Protection 35V
Overload Protection Yes
Overcurrent Protection Automatic Restart by more than 110% of rated power
Overtemperature Protection Yes
Short Circuit Protection Yes

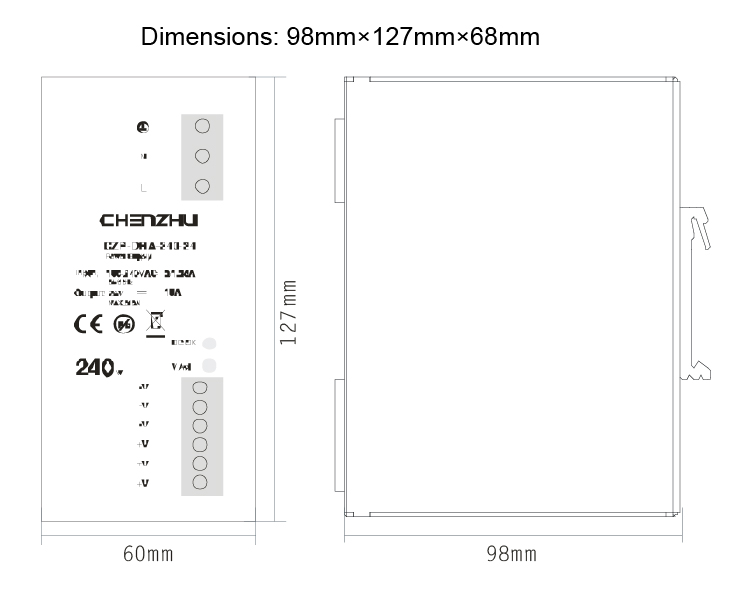

Dimensions
Depth 98mm
Height 127
Width 60
Housing
Material Aluminium
Degree of protection IP20
Weight 0.5Kg
Environmental

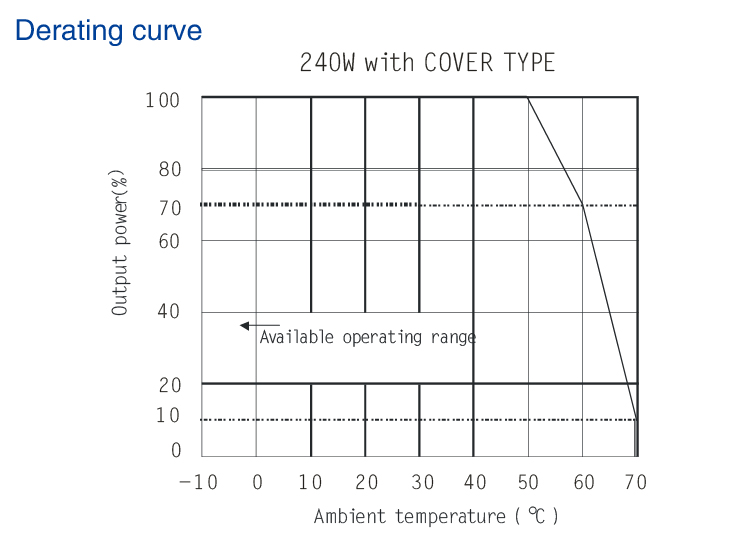

Ambient Temperature -10°~70°C
Storage Temperature -25° ~ 85°C
Relative Humidity 5%~95%
max. Altitude 3000 M
General
Cooling Natural

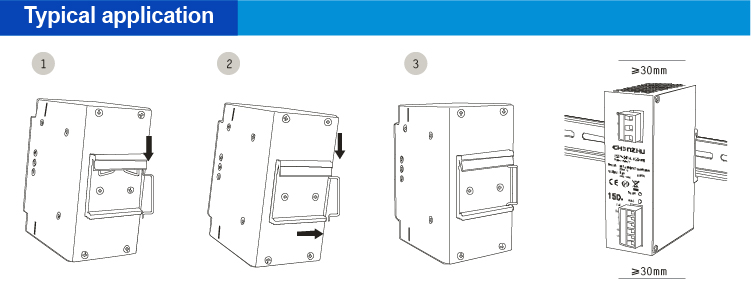

Mounting Type DIN-rail mounting to TS35/7.5or TS35/15.
Fitting Position Vertical
Wiring Data 0.15-2.5 mm² 300VAC
MTBF demonstrated >350,000 hours at full load at 25°C ambient conditions
Standard/Specification
Withstand Voltage I/P-O/P: AC 3KV; I/P-FG: AC 2KV; O/P-FG: DC 0.5KV
EMC compliance with EMC directive 2004 /108/EC
Harmonic Current Limits compliance with EN61000-3-2, EN61000-3-3
